Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Model Number: | LBNX-300A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In Bulk |
| Delivery Time: | 15-30days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100M/Month |
|
Detail Information |
|||
| Range: | 8-32M | Section: | 300mm-700mm |
|---|---|---|---|
| Main Part Size: | 50mm-80mm | Accessory Size: | 25mm-50mm |
| Safety Factor: | 2.5K | Weight: | 10.5KG/M-75KG/M |
| Highlight: | electrical crowbar hand tools,electrical tower erection tools |
||
Product Description

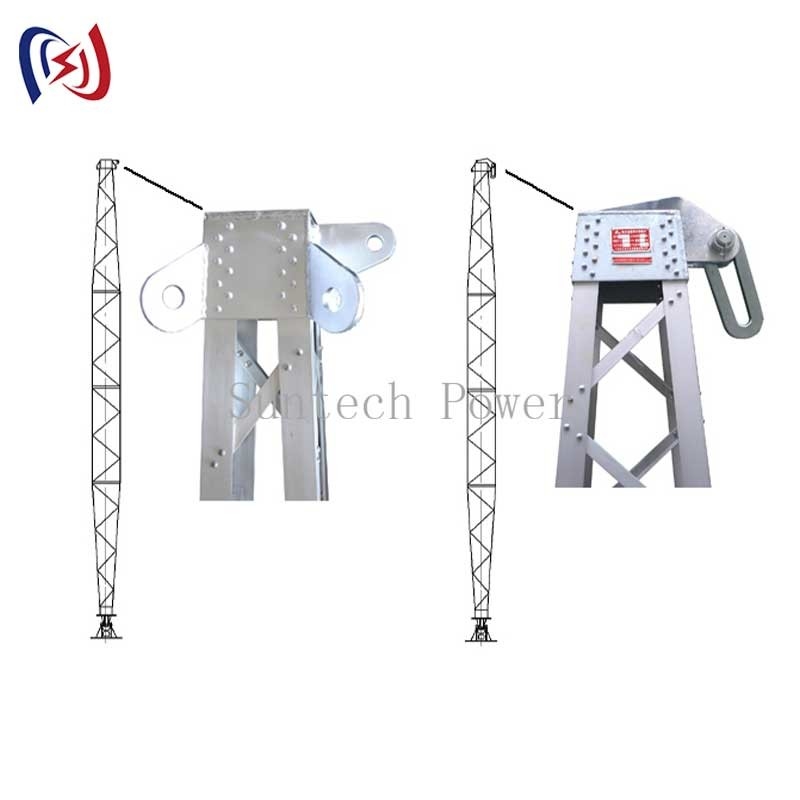

Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Use and Characteristics
During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.
Adopt single-arm style, free from direction restriction, use convenience.

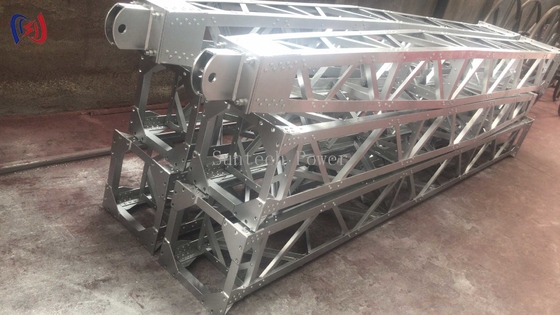

The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.
Quality Control

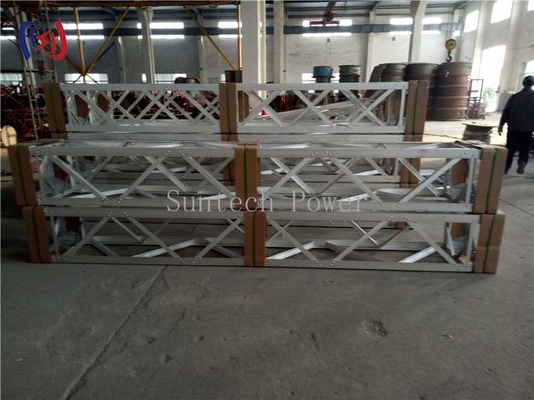

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
|
Item number |
Model |
Range (M) |
Section(MM) |
Main part size (MM) |
Accessory size (MM) |
Vertical Load (KN) |
Safety Factor (K) |
Weight (KG/M) |
| 03131 | LBNX-300A | 8-16 | 300*300 | 50*50*4 | 25*25*3 | 13-38 | 2.5 | 10.5 |
| 03141 | LBNX-300B | 11-18 | 300*300 |
50*50*5 |
30*30*3 | 15-40 | 2.5 | 11.0 |
| 03151 | LBNX-400 | 12-20 | 400*400 |
50*50*5 |
30*30*3 | 14-43 | 2.5 | 14.6 |
| 03511 | LBNX-500A | 12-20 | 500*500 |
60*60*5 |
30*30*3 | 34-75 | 2.5 | 18 |
| 03515 | LBNX-500B | 14-22 | 500*500 |
60*60*5 |
40*40*3 | 2.5 | 20 | |
| 03521 | LBNX-500C | 15-23 | 500*500 |
70*70*6 |
40*40*3 | 42.88 | 2.5 | 21 |
| 03525 | LBNX-500D | 17-25 | 500*500 | 70*70*6 | 50*50*4 | 2.5 | 22 | |
| 03531 | LBNX-600A | 15-23 | 600*600 | 60*60*6 | 40*40*3 | 38.75 | 2.5 | 20 |
| 03535 | LBNX-600B | 17-25 | 600*600 | 70*70*6 | 40*40*3 | 2.5 | 21 | |
| 03541 | LBNX-600C | 17-25 | 600*600 | 70*70*6 | 50*50*4 | 58.119 | 2.5 | 22 |
| 03545 | LBNX-600D | 17-25 | 600*600 | 75*75*6 | 50*50*4 | 2.5 | 24 | |
| 03601 | BNX-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 17-35 | 2.5 | 33 |
| 03602 | BNX-400 | 12-16 | 400*400 | 50*50*5 | 30*30*3 | 29-51 | 2.5 | 43 |
| 03603 | BNX-500 | 16-24 | 500*500 | 63*63*6 | 30*30*3 | 41-93 | 2.5 | 54 |
| 03604 | BNX-600 | 16-32 | 600*600 | 70*70*6 | 40*40*4 | 72-221 | 2.5 | 63 |
| 03605 | BNX-700 | 20-32 | 700*700 | 80*80*6 | 40*40*4 | 115-294 | 2.5 | 75 |
