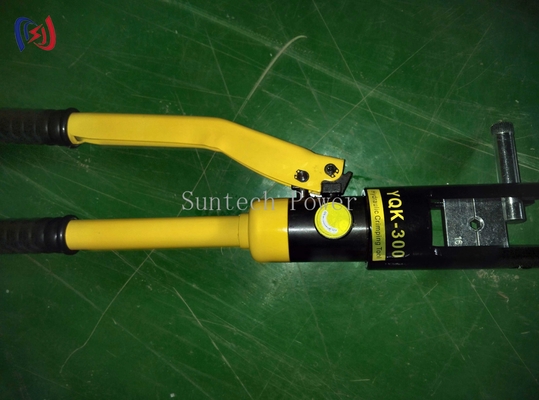

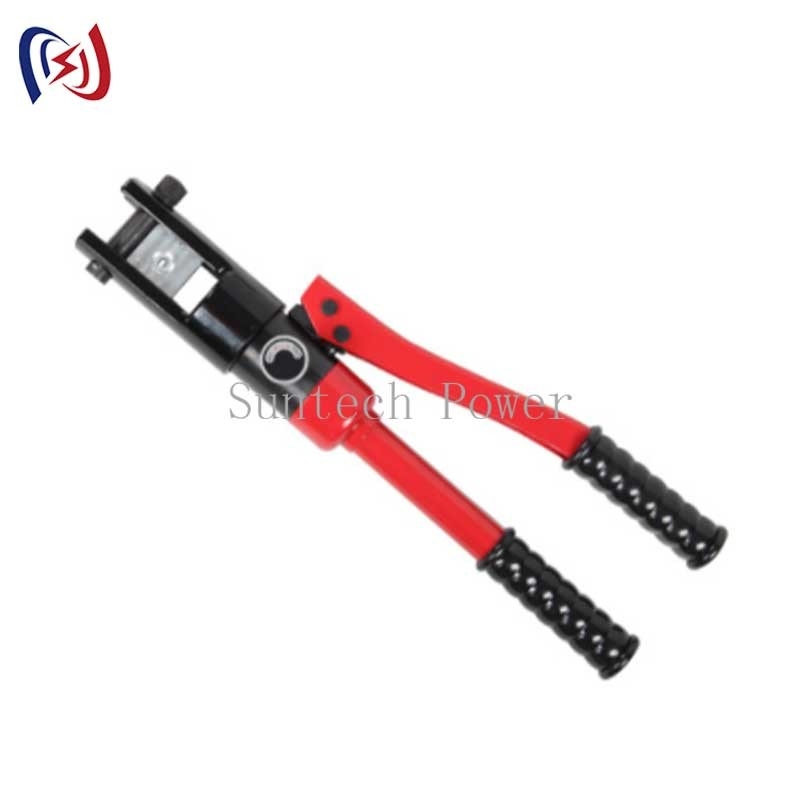

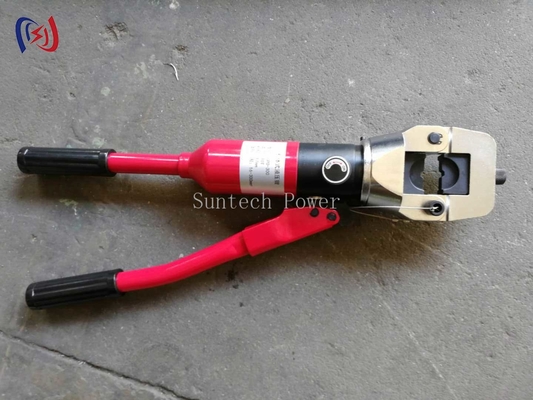

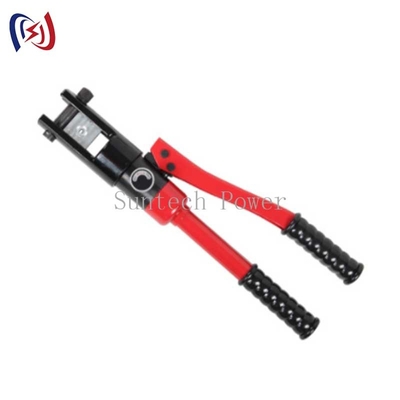

YQK Integral Hydraulic Cable Crimper Hydraulic Crimping Tools 300mm2
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | YQK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Integral Hydraulic Crimping Pliers | Item No.: | 16181-16183 |
|---|---|---|---|
| Crimping Force: | 80/ 100KN | Crimping Range: | 10-300mm2 |
| Crimping Type: | Hexagon Crimping | Dies: | 10-300mm2 |
| Stroke: | 16/20mm | Length: | Approx.410mm / Approx.470mm |
| Weight: | 4.5-6.5KG | Package: | Plastic Box |
| Warranty: | 1 Year | ||
| Highlight: | YQK Hydraulic Crimping Tools,Integral Hydraulic Crimping Tools,hydraulic cable crimper 300mm2 |
||
Product Description
YQK Integral Hydraulic Crimping Pliers Hydraulic Crimping Tools
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Hydraulic Crimping Tool Specification
| Item number | 16181 | 16182 | 16183 |
| Model | YQK-120 | YQK-240 | YQK-300 |
|
Crimping force |
80KN | 100KN | 100KN |
|
Crimping range |
10-120mm² | 16-240mm² | 16-300mm² |
| type | hexagon crimping | hexagon crimping | hexagon crimping |
| Dies |
10,16,25,35,50, 70,95,120mm² |
16,25,35,50,70,95, 120,150,185,240mm² |
16,25,35,50, 70,95,120,150, 185,240,300mm² |
| Stroke | 16mm | 20mm | 20mm |
| Length | approx.410mm | approx.470mm | approx.470mm |
| Weight(KG) |
approx.N.W3.4KG G.W4.5KG |
approx.N.W4KG G.W6KG |
approx.N.W4.5KG G.W6.5KG |
| Package | plastic box | plastic box | plastic box |
