YJD Split Type Hydraulic Crimping Pliers Range 100mm Hydraulic Crimping Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | YJD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Split-type Hydraulic Crimping Pliers | Item No.: | 16103-16106 |
|---|---|---|---|
| Crimping Force: | 60-300T | Crimping Range: | 14-100mm |
| Crimping Type: | Hexagon Crimping | Stroke: | 24/ 35mm |
| Height: | Approx.370mm/ Approx.480mm | Weight: | 30-130KG |
| Package: | Wooden Case | Warranty: | 1 Year |
| Highlight: | YJD Hydraulic Crimping Pliers,Split type Hydraulic Crimping Pliers,100mm Hydraulic Crimping Tools |
||
Product Description

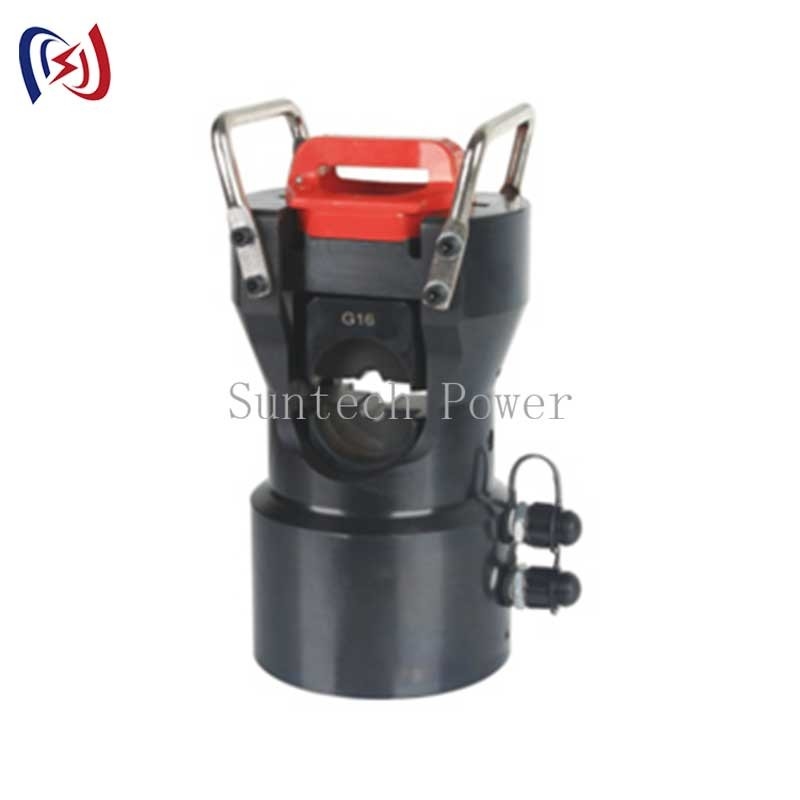

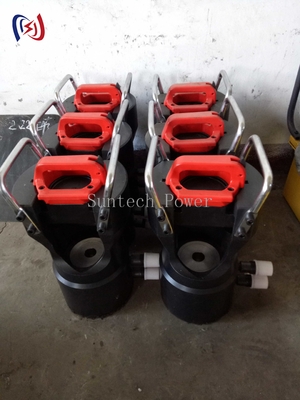

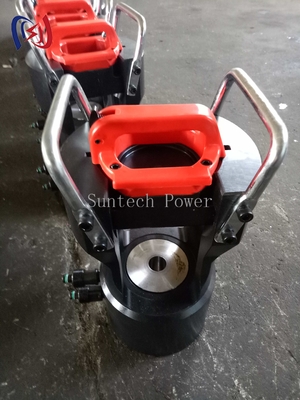

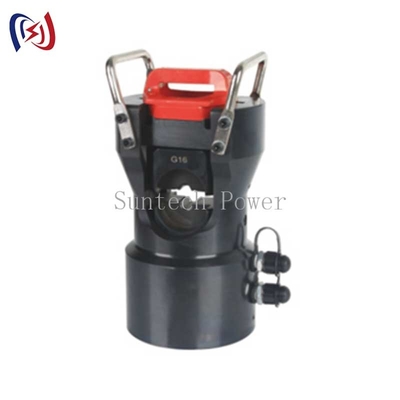

YJD Split-type Hydraulic Crimping Pliers Hydraulic Crimping Plier
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Heavy Duty Crimp Cable Description
Split hydraulic crimping head can work with hydraulic pump
It is suit for crimping big size of lugs
It is suitable for outside and inside project of the distributor,it is the special tools for all kinds if connecting and building over head cable
Heavy Duty Crimp Cable Feature
1. It is suitable for outside and inside project of the distributor house, it is the special tools for all kinds of the connecting and building over head cable.
2. It pressed tightly on 10kv-500kv high voltage cable casing pipe, clips nared ends and hexagon shape.
3. The oil pipe coipler fitted with PT 3/8'' thread.
4.To be worked with pedal pump, manual pump and electric driven hydraulic pump.
Heavy Duty Crimp Cable Technical Data
| Item number | 16103 | 16103A | 16104 | 16105 | 16106 |
| Model | YJD-600 | YJD-1000 | YJD-1250 | YJD-2000 | YJD-3000 |
|
Crimping force |
60T | 100T | 125T | 200T | 300T |
|
Crimping range |
14-55mm | 14-76mm | 14-76mm | 14-90mm | 14-100mm |
| type | hexagon crimping | hexagon crimping | |||
| Stroke | 24mm | 24mm | 35mm | 35mm | |
|
Heigth |
approx.370mm | approx.480mm | |||
|
Weight (KG) |
approx.N.W20KG G.W30KG |
approx.N.W30KG G.W40KG |
approx.N.W50KG G.W60KG |
approx.N.W85KG G.W95KG |
approx.N.W120KG G.W130KG |
| Package | wooden case | wooden case | |||
