Split Type 80KN Hydraulic Cable Cutter Hydraulic Crimping Tools 160mm
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | CPC-85H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Split-Type Hydraulic Cable Cutter | Item No.: | 21449-21449D |
|---|---|---|---|
| Crimping Force: | 80KN | Stroke: | 85-160mm |
| Length: | 480-750mm | Weight: | 9.2-18.5KG |
| Package: | Wooden Case | Warranty: | 1 Year |
| Highlight: | Split TypeHydraulic Crimping Tools,80KN Hydraulic Crimping Tools,hydraulic cable cutter 160mm |
||
Product Description

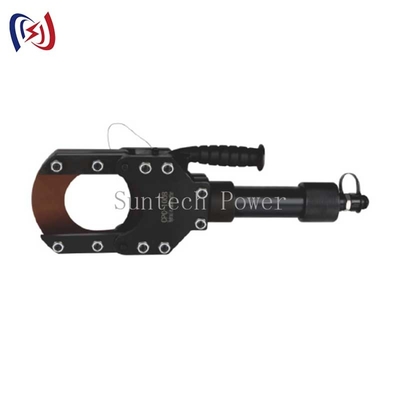

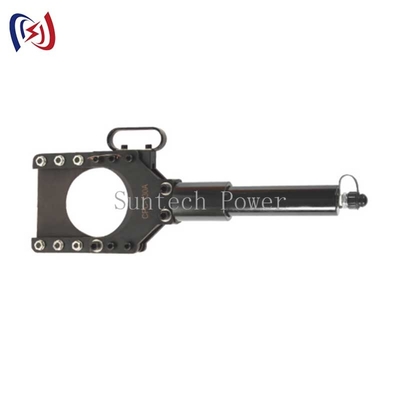

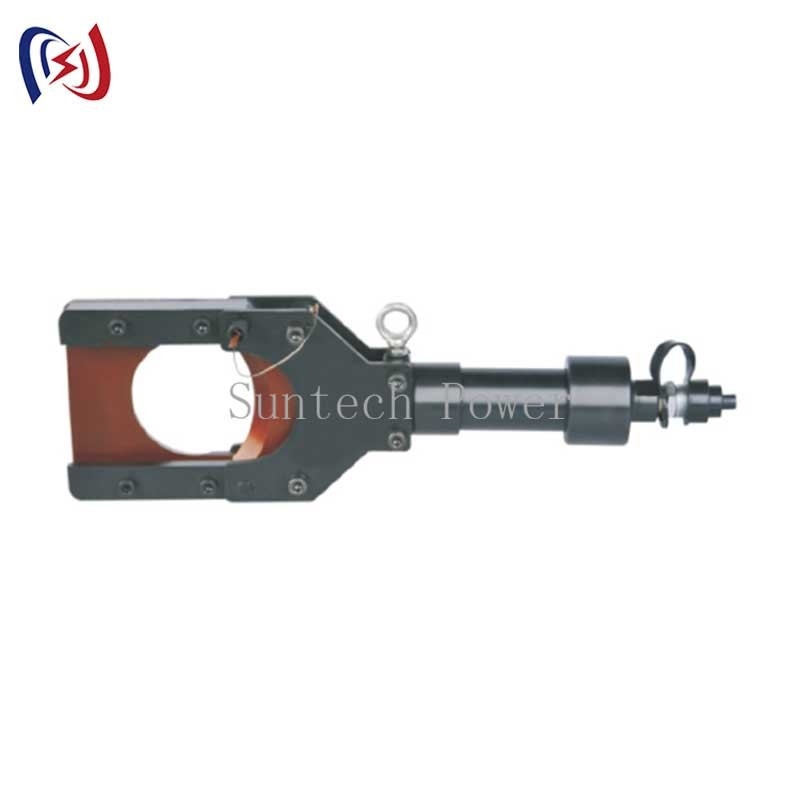

Split-Type Hydraulic Cable Cutter Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Manual Cable Wire Cutter Application
The blades are manufactured from high strength special steel, heat treated to ensure a long service life.
The head can be easily opened to allow the cutting of running cables.
Hydraulic cutting head complete with quick automatic coupler for connection to a hydraulic pump with a working pressure of 700 bar max.
Manual Cable Wire Cutter Specification
| Item number | 21449D | 21449C | 21449 | 21449A |
| Model | CPC-85H | CPC-100B | CPC-130A | CPC-160A |
|
Crimping force(KN) |
80KN | 80KN | 80KN | 80KN |
| range |
armored CU/AL cable Φ85mm max |
armored CU/AL cable Φ100mm max |
armored CU/AL cable Φ130mm max |
armored CU/AL cable Φ160mm max |
| Stroke | 85mm | 100mm | 130mm | 160mm |
| Length | approx.480mm | approx.620mm | approx.650mm | approx.750mm |
| Weight(KG) |
approx.N.W6.7KG G.W9.2KG |
approx.N.W12KG G.W15KG |
approx.N.W13.35KG G.W16.5KG |
approx.N.W15.35KG G.W18.5KG |
| Package | wooden case | wooden case | wooden case | wooden case |
