Inner Suspended Lattice Gin Pole Tower Erection Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | LBNX-300A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 M/Month |
|
Detail Information |
|||
| Name: | Inner-suspended Lattice Gin Pole | Item No.: | 03131-03605 |
|---|---|---|---|
| Range: | 8-32M | Section: | 300x300-700x700mm |
| Main Part Size: | 50x50x4-80x80x6mm | Accessory Size: | 25x25x3-50x50x4mm |
| Vertical Load: | 38-13---294-115KN | Safety Factor: | 2.5K |
| Weight: | 10.5-75 KG/M | Warranty: | 1 Year |
| Highlight: | inner suspended crowbar hand tools,inner suspended tower erection tools |
||
Product Description

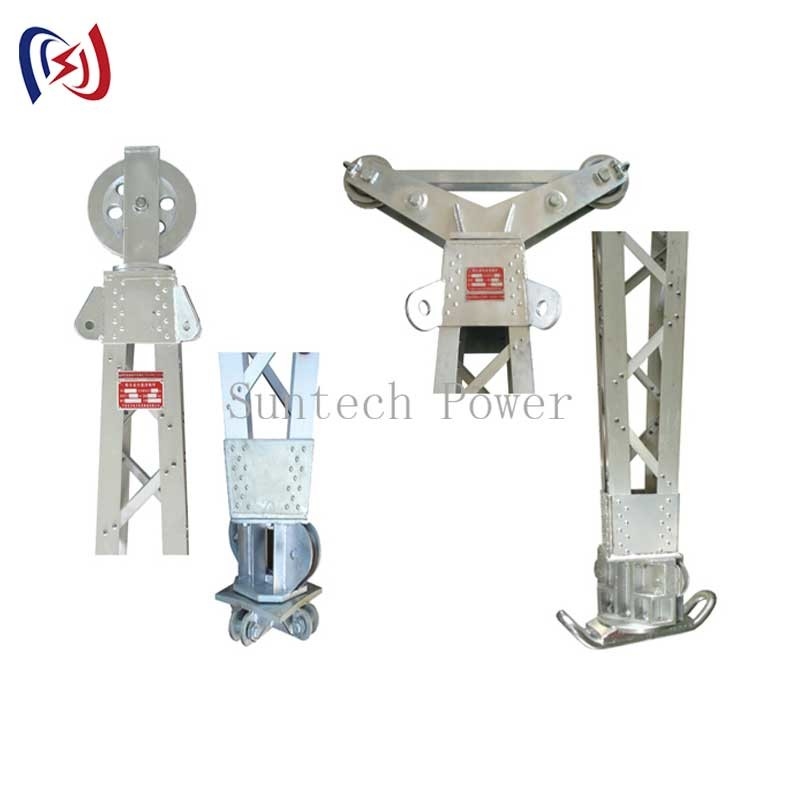

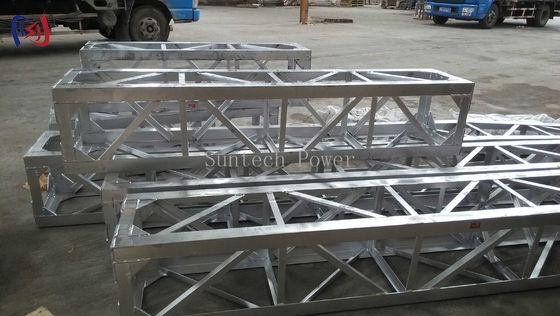

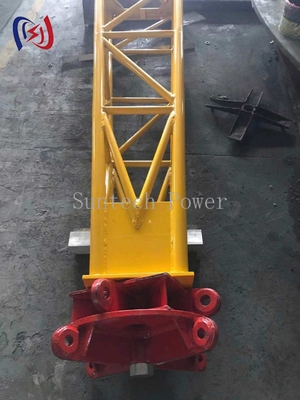

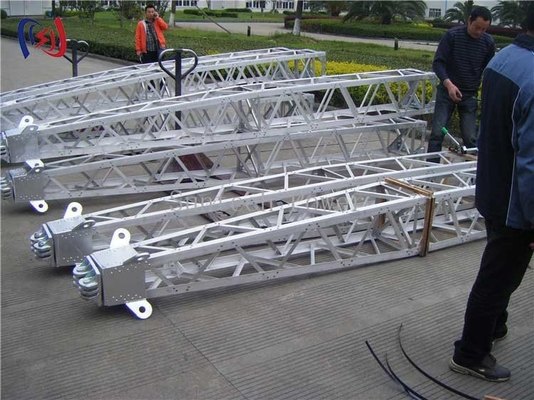

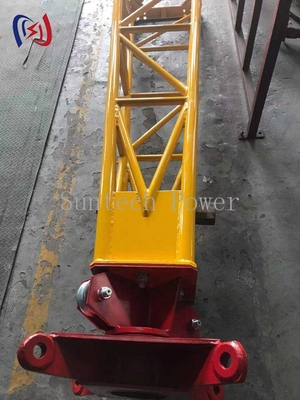

Inner Suspended Lattice Gin Pole Tower Erection Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Use and Characteristics
During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.
Adopt single-arm style, free from direction restriction, use convenience.
The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.
Technical Data
| Item number | Model |
Range |
Section(MM) |
Main part |
Accessory |
Vertical |
|
|
| 03131 | LBNX-300A | 8-16 | 300*300 | 50*50*4 | 25*25*3 | 13-38 | 2.5 | 10.5 |
| 03141 | LBNX-300B | 11-18 | 300*300 | 50*50*5 | 30*30*3 | 15-40 | 2.5 | 11.0 |
| 03151 | LBNX-400 | 12-20 | 400*400 | 50*50*5 | 30*30*3 | 14-43 | 2.5 | 14.6 |
| 03511 | LBNX-500A | 12-20 | 500*500 | 60*60*5 | 30*30*3 | 34-75 | 2.5 | 18 |
| 03515 | LBNX-500B | 14-22 | 500*500 | 60*60*5 | 40*40*3 | 2.5 | 20 | |
| 03521 | LBNX-500C | 15-23 | 500*500 | 70*70*6 | 40*40*3 | 42.88 | 2.5 | 21 |
| 03525 | LBNX-500D | 17-25 | 500*500 | 70*70*6 | 50*50*4 | 2.5 | 22 | |
| 03531 | LBNX-600A | 15-23 | 600*600 | 60*60*6 | 40*40*3 | 38.75 | 2.5 | 20 |
| 03535 | LBNX-600B | 17-25 | 600*600 | 70*70*6 | 40*40*3 | 2.5 | 21 | |
| 03541 | LBNX-600C | 17-25 | 600*600 | 70*70*6 | 50*50*4 | 58.119 | 2.5 | 22 |
| 03545 | LBNX-600D | 17-25 | 600*600 | 75*75*6 | 50*50*4 | 2.5 | 24 | |
| 03601 | BNX-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 17-35 | 2.5 | 33 |
| 03602 | BNX-400 | 12-16 | 400*400 | 50*50*5 | 30*30*3 | 29-51 | 2.5 | 43 |
| 03603 | BNX-500 | 16-24 | 500*500 | 63*63*6 | 30*30*3 | 41-93 | 2.5 | 54 |
| 03604 | BNX-600 | 16-32 | 600*600 | 70*70*6 | 40*40*4 | 72-221 | 2.5 | 63 |
| 03605 | BNX-700 | 20-32 | 700*700 | 80*80*6 | 40*40*4 | 115-294 | 2.5 | 75 |
