Inspection Trolleys And Overhead Lines Bicycles For Four Bundle Conductors
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SFS1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Inspection Trolleys And Overhead Lines Bicycles For Four Bundle Conductors | Item No.: | 17271/ 17272 |
|---|---|---|---|
| Rated Load: | 1/ 1.5KN | Maximum Through Diameter: | 40/ 70mm |
| Conductors Distance: | 400/ 450/ 500mm | Weight: | 36-40KG |
| Warranty: | 1 Year | ||
| Highlight: | Tower Erection Tools,inspection pulleys,stringing tools |
||
Product Description

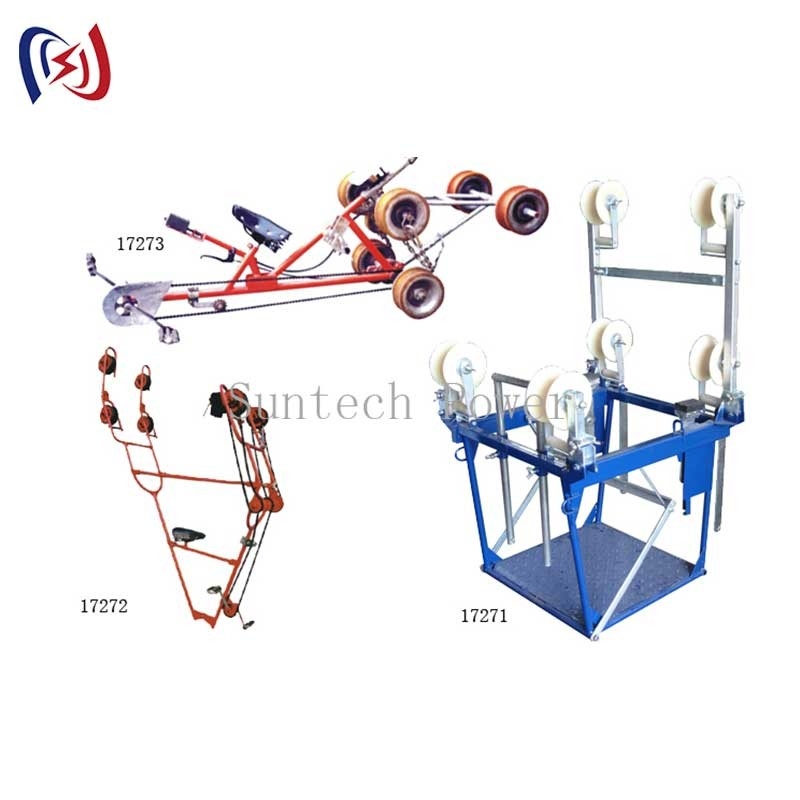

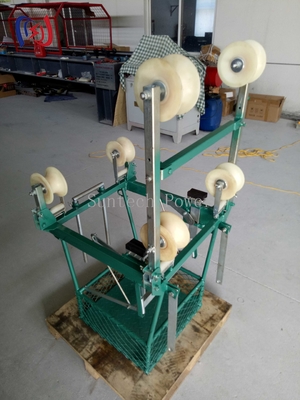

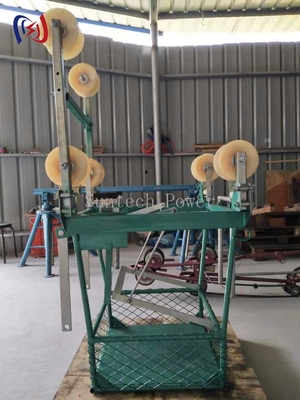

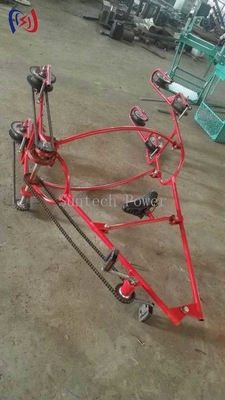

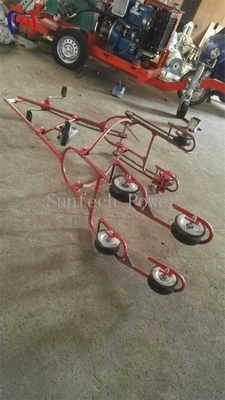

Inspection Trolleys And Overhead Lines Bicycles For Four Bundle Conductors
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Application
Inspection trolleys and overhead line bicycles/carts for four bundle conductors is used to install accessories and overhaul on four split wires,ect.
Notes
Please specify the wire spacing when ordering.
Technical Data
| Item number | Model |
Rated Load (KN) |
Maximum through diameter (mm) |
conductors distance (mm) |
重量(KG) Weight |
| 17271 | SFS1 | 1.5 | Φ70 | 450 | 40 |
| 500 | |||||
| 17272 | SFS3 | 1.5 | Φ40 | 400 | 36 |
| 450 | 38 | ||||
| 500 | 40 |
