9 - 13mm OPGW Stringing Tools Self Moving Traction Machine Transmission Line Tool 140W
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | ZZC350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Self-Moving Traction Machine | Block Passed Diameter Range: | 9-13mm |
|---|---|---|---|
| Gasoline Engine: | YAMAHAET950 | Driving Dynamo Type: | 100YYJ140-3(140W) |
| Remote Control Linear Distance: | 300-500m | Diamension: | 422x480x758mm |
| Running Speed: | 17m/min | Horizontal Pull: | 350N |
| Weight: | 46.5KG | Warranty: | 1 Year |
| Highlight: | 9mm OPGW Stringing Tools,13mm Self Moving Traction Machine,Transmission Line Tool 140W |
||
Product Description

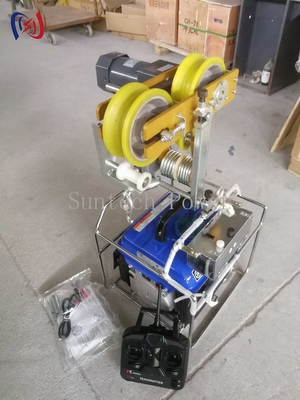

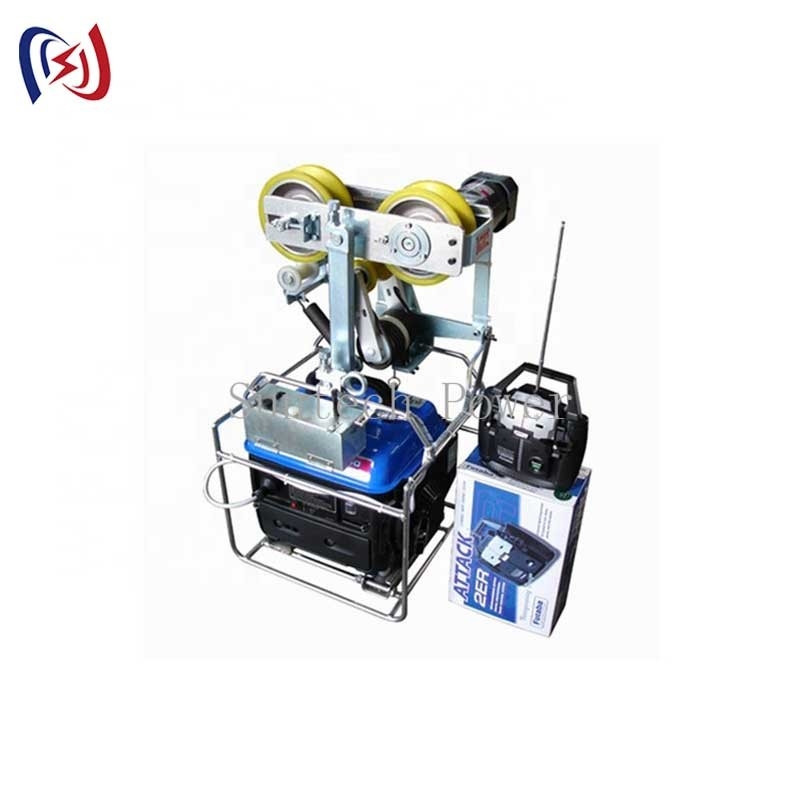

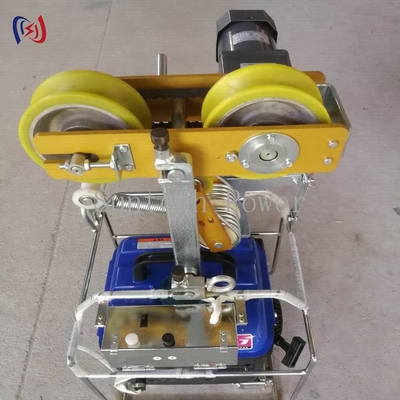

Self-Moving Traction Machine Transmission Line Tool
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Uses:Use to spread OPGW,replace old conductor.
| Item No. | 20121 |
| Model | ZZC350 |
| Block passed diameter range(mm) | Φ9-Φ13 |
| Maximum creeping angle(°) | 31 |
| Gasol ine Engine | YAMAHAET950 |
| Driving dynamo type | 100YYJ140-3(140W) |
| Remote control linear distance(m) | 300~500 |
| Dimension(mm) | 422*480*758 |
| Running speed(m/min) | 17 |
| Horizontal pull(N) | 350 |
| Weight(KG) | 46.5 |
