500KV Substation Type Grounding Lead Spiral Compaction Tower Erection Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | 23001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Grounding Lead | Item No.: | 23001 |
|---|---|---|---|
| Voltage Class: | 10-500KV | Ground Soft Copper Wire: | 25-50mm |
| Warranty: | 1 Year | ||
| Highlight: | 500KV rounding Lead Spiral Compaction,Substation Type rounding Lead Spiral Compaction,ODM Tower Erection Tools |
||
Product Description

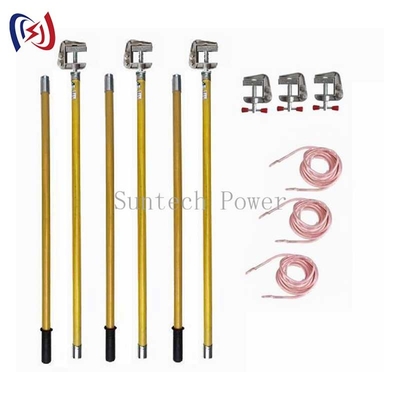

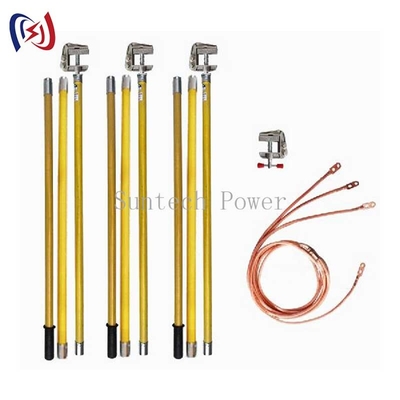

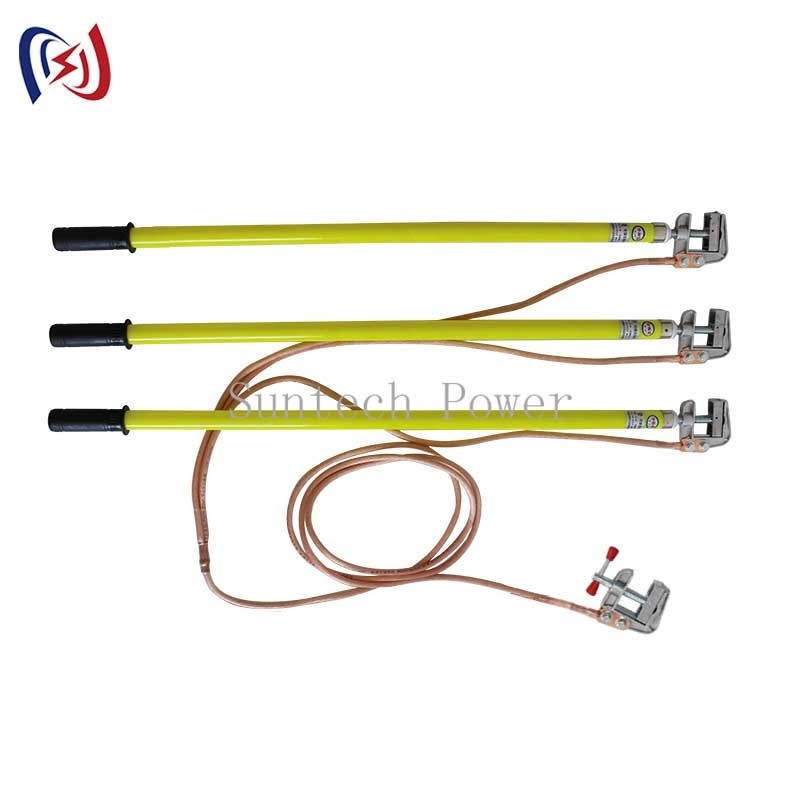

Grounding Lead Spiral Compaction( Substation Type)
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
It is suitable for transmission lines,power plants and substation equipment,short circuit grounding for power outage maintenance.
Feature
1.Wire clamper with aluminum alloy casting,high strength,good conductivity.

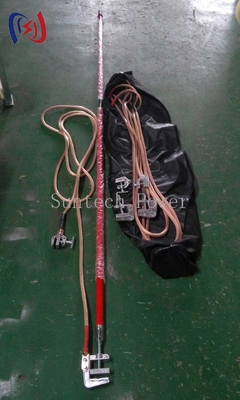

2.The portable short-circuit grounding wire is packed in canvas bag with exported wooden boxes,which is easy to carry and transport
Item No.23012
Double tongue tension(Transmission line type)
Item No.23011
Spiral compaction(Transmission line type)
Item No.23001
Spiral compaction(Substation type)
Grounding Wire Configuration Table:
| Voltage class | Ground soft copper wire |
Length of Ground Operation Rod (mm) |
|||
| (mm2) | (m) | ||||
| Insulating | Handheld | Total length | |||
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 | 1.5*3+18 | 900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV | 25,35 | 9*3 | 1300 | 700 | 2000 |
| 2*3+20 | |||||
| 220KV | 25,35 | 9*3 | 2100 | 900 | 3000 |
| 3*3+25 | |||||
| 330KV | 35,50 | 12*3 4*3+25 | 3000 | 1100 | 4100 |
| 500KV | 35,50 | 13*3~20*3 | 4100 | 1400 | 5500 |
| 220-500KV Overhead ground wire | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| High pressure test equipment | 35,50 | 5*3~10*3 | 700 | 300 | 1000 |
The rated value of the copper wire per meter:
| Sectional area(mm) | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
| Wire diameter(mm) | 4.2 | 5.7 | 7.5 | 8.78 | 11 | 12 | 16 | 17 |
| Sheath diameter(MΩ) | 7.3 | 7.8 | 9.6 | 11.2 | 12.6 | 16.5 | 21 | 22 |
| Resistance value(A) | 1.98 | 1.24 | 0.79 | 0.56 | 0.4 | 0.28 | 0.21 | 0.16 |
| Safety current | 90 | 100 | 123 | 150 | 210 | 238 | 300 | 300 |
