Long Distance Cable Blower Set Tower Erection Tools Communications Cable
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | CLJ60S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Cable Blower Set | Item No.: | 20401 |
|---|---|---|---|
| Maximum Transportation Force: | 700N | Transportation Speed: | 8-80m/min |
| Dimension: | 1390x700x850mm | Weight: | 125KG |
| Warranty: | 1 Year | ||
| Highlight: | Long distance communications cable,700N communications cable,Long distance Tower Erection Tools |
||
Product Description

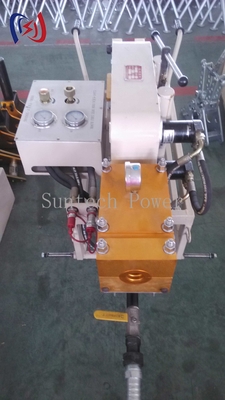

Cable Blower Set Apply To Long-distance Communications Cable Construction
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Configuration
1. CLJ60 Cable Blower Set Apply to long-distance communications cable construction.
Generally the blow length achieve 1000~2000m.
2. Whole set is composed of cable blower set,hydraulic pump station. Air proof piston,cable seal ring,plastic seal ring,air compressor.
which provide compress air need to purchase additional.
3. Cable blower set ,hydraulic pump,a set sealing piece that specify the cable outside diameter and silicon core pipe by customer, a set model GDJ150 pipe sealing inspection equipment.
Technical Data
Essential technical parameter
| Item No. | 20401 |
| Maximum transportation force(n) | 700(consecutive adjustable) |
| Transportation speed(m/min) | 8-80(consecutive adjustable) |
| Applicable cable diameter(mm) | Φ10~11.7,Φ11.8~13.5,13.6~15.3,Φ15.4~17.1 |
|
Applicable silicon core pipe(out diameter/inner diameter)(mm) |
Φ33/Φ40 |
| dimension(mm) | 1390x700x850 |
| weight(kg) | 125 |

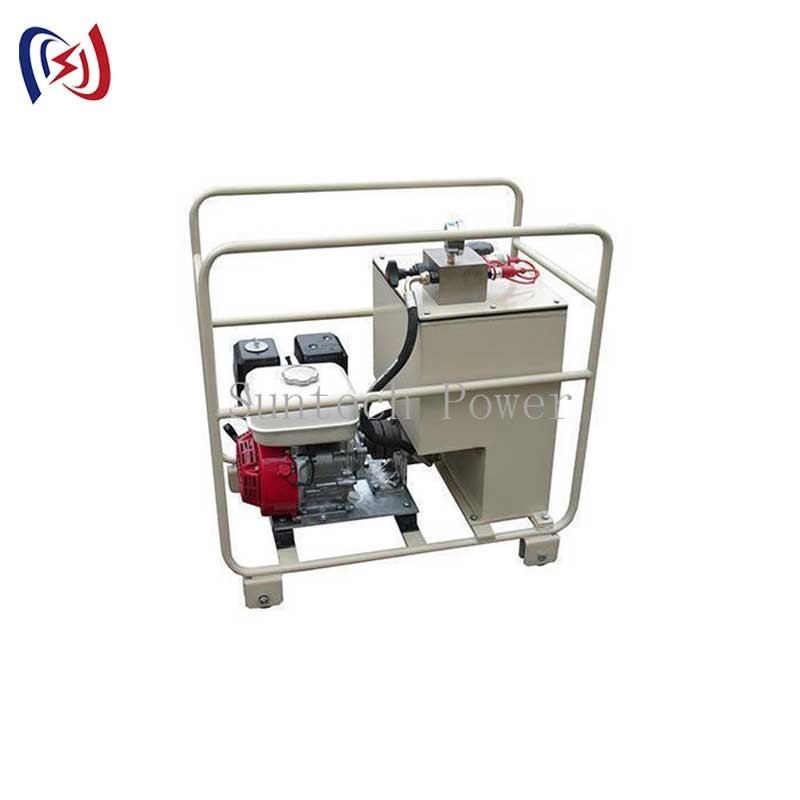

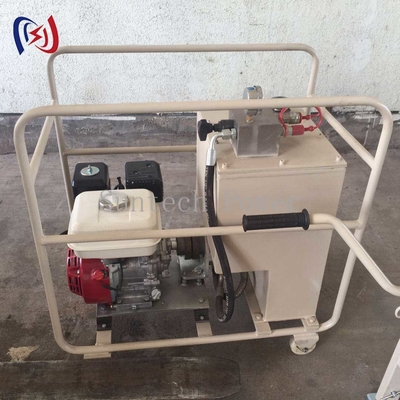

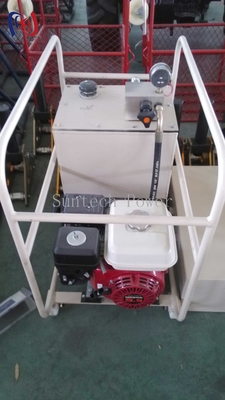

Pump station essential technical parameter
| maximum pressure(MPa) | 15 |
| hydraulic flux (1/min) | 10 |
| gasoline (hp/rpm) | 6/1800 |
| length of tube(1/min) | 10 |
| dimension(mm) | 780x470x780 |
| weight(kg) | 87.5 |
