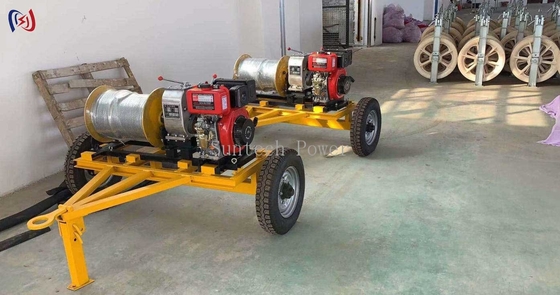

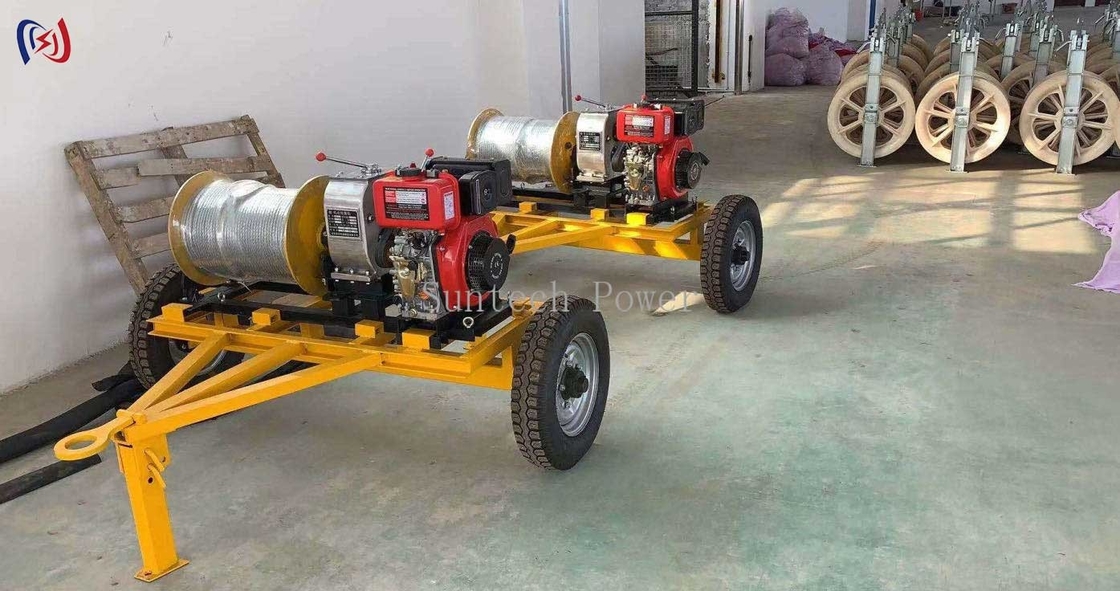

Customized Cable Reel Trailer Cable Drum Trailer High Load Bearing Capacity 2360mm
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | DLG3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Cable Reel Trailer | Item No.: | 21150-21154 |
|---|---|---|---|
| Applicable Reel Widt: | 1300-2360mm | Applicable Reel Diameter: | 2300-3600mm |
| Applicable Reel Weight: | 3000-12000KG | Axel Diameter: | 60-95mm |
| Weight: | 800-2500KG | Warranty: | 1 Year |
| Highlight: | Customized Cable Reel Trailer,Cable Reel Trailer High Load,Cable Drum Trailer 2360mm |
||
Product Description
Cable Reel Trailer Customized Cable Drum Trailer High Load Bearing Capacity
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
12 Ton Cable Drum Carrier, Cable Reel Trailer With Axis Bar for Cable Laying
| Model | Rated Load | Weight(kg) | Applicable coil diameter(mm) | Applicable coil width(mm) | Overall dimensions(mm) |
| LS-12T | 12T | 3000 | ≤3500 | ≤1850 | 4300×3400×2800 |
Usage:
Artificial rock winch to a minimum so that the rear position in the loading and unloading, the axis of the bar penetration reels (I plant to configure the axis bar), the draw cable trailer rear axle bar insurers will advance after a card. Down Insurance (steel fiber), the left and right of a person shaking stable machine handle (handle force 15 kg per capita) so that the wire coil rises by moving stable machine with automatic brake to ensure construction safety.
Consignment Method:
The front end of the trailer there is a cable connection can be directly connected to car ownership, so checked behind tractor.
Feature:
Mechanical gear technology, the use of more light.
Cable drum trailer, cable reel trailer,Technical Data:
| Model | Max Load | Weight | Max Lifting Height | Inside Wide | length | Wide | High |
| (T) | (kg) | mm | mm | (mm) | (mm) | (mm) | |
| LS-3T | 3 | 600 | 1550 | 1400 | 3700 | 2200 | 1800 |
| LS -5T | 5 | 900 | 1750 | 1650 | 4000 | 2700 | 2180 |
| LS -8T | 8 | 1200 | 1900 | 1950 | 4200 | 3200 | 2300 |
| LS -10T | 10 | 1500 | 2000 | 2000 | 4300 | 3400 | 2400 |
| LS -12T | 12 | 2600 | 2000 | 2000 | 4300 | 3400 | 2400 |
Cable Drum Trailer Advantage:
1. Able to carry high loads
2. Take First-Class Quality as Target and First-class Service.
3. With a high load-bearing capacity
4. As Responsibility, To Succeed By Scientific Management.
5. Stable performance and durable
6. Customer in Heart, Quality in Hand, Technology in the Lead
