Splicing Sleeves Straightener Pipe Straightening Machine Conductor Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | YJZ2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Splicing Sleeves Straightener | Item No.: | 17211-17212A |
|---|---|---|---|
| Straighten Force: | 20-150KN | Application Conductor: | LGJ720-LGJ1250 |
| Diameter Of Splicing Sleeves: | 60-80mm | Weight: | 12-15.5KG |
| Warranty: | 1 Year | ||
| Highlight: | conductor crowbar hand tools,conductor tower erection tools |
||
Product Description
Splicing Sleeves Straightener Pipe Straightening Machine Conductor Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Application

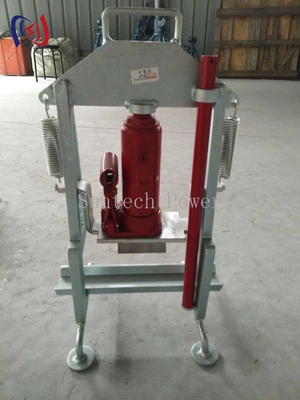

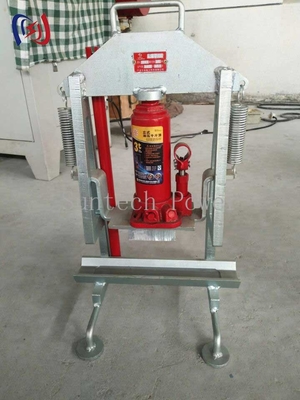

Pipe straightening machine crimp pipe straightener,splicing sleeves straightener is used to press the crimp to bend after crimping.It is applicable for crimping pipe under LGJ720mm.
Configuration
17212 need to purchase mathched manual pump.
Technical Data

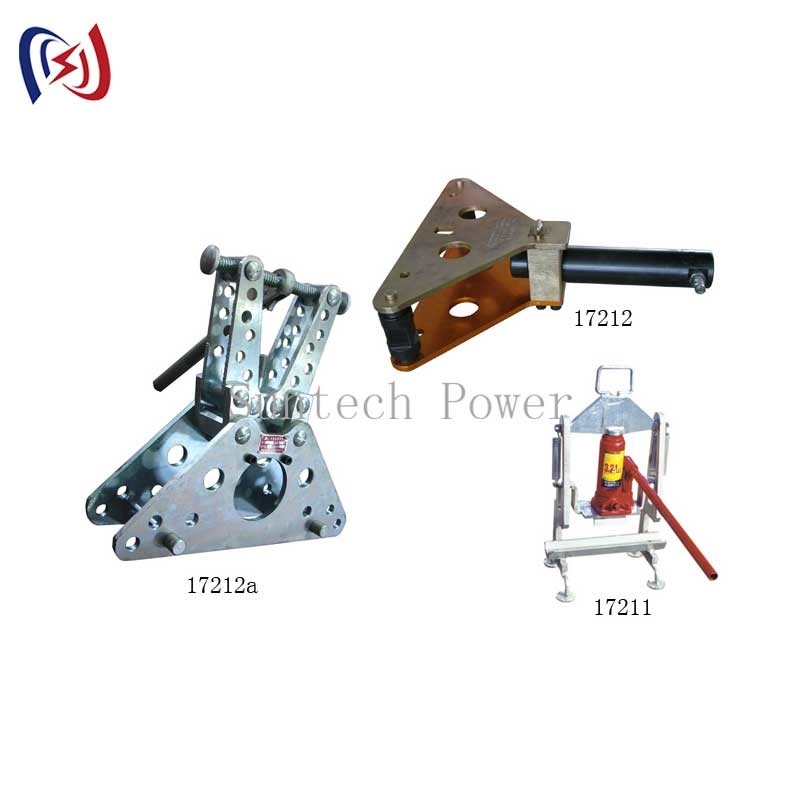

| Item number | 17211 | 17212 | 17212A` |
| Model | YJZ2 | YJZ3 | YJZ4 |
|
straighten force(KN) |
20 | 50 | 150 |
|
Application conductor |
LGJ720 | LGJ900 | LGJ1250 |
|
Diameter of splicing sleeves(MM) |
Φ60 | Φ68 | Φ80 |
| Shape siz(MM) | 300X260X507 | 452X391X145 | 400X375X140 |
| Weight(KG) | 12 | 13.5 | 15.5 |
