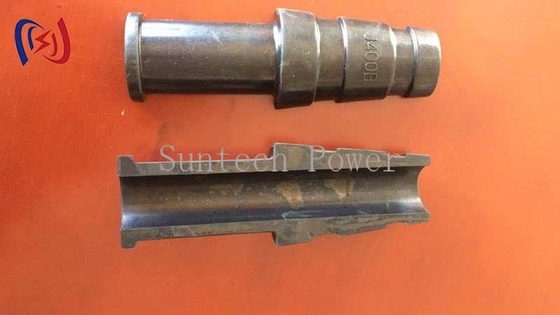

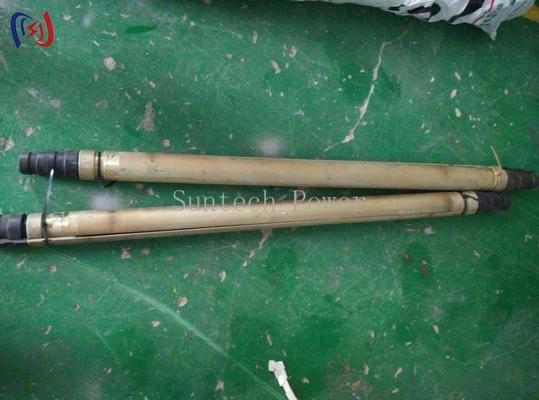

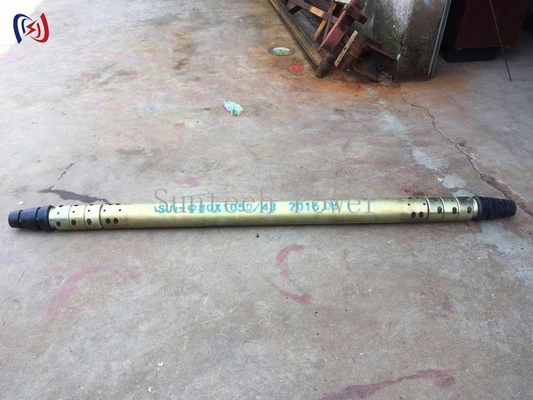

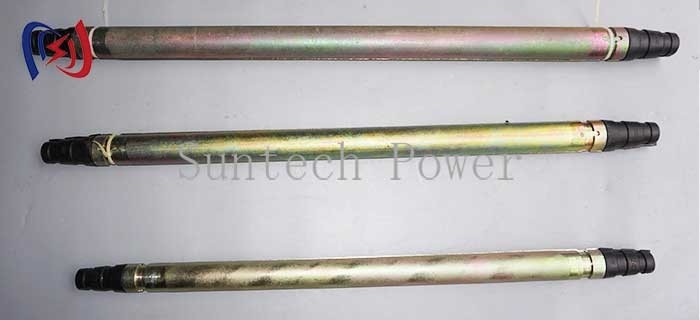

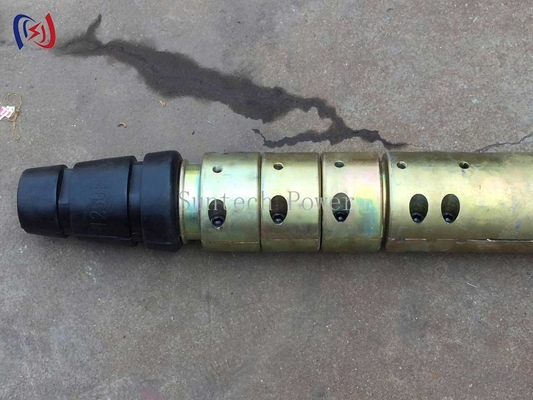

Splicing Sleeve Protector ACSR Steel Strand Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | J240B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Splicing Sleeve Protector | Item No.: | 17201-17209 |
|---|---|---|---|
| Application Conductor: | LGJ240/55---JL1/G2A-1250 | Warranty: | 1 Year |
| Highlight: | Tower Erection Tools,Tower Erection Tools,Transmission Line Stringing Tools |
||
Product Description
Splicing Sleeve Protector ACSR Steel Strand Transmission Line Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
| Item No. | Model | Main size(MM) | Application Conductor(MAX) | |||
| D | L | d | L1 | |||
| 17201 | J240B | Φ45 | 850 | Φ38 | 530 | LGJ240/55 |
| 17202 | J300B | Φ51 | 940 | Φ43 | 600 | LGJ300/50 |
| 17203 | J400B | Φ57 | 995 | Φ47 | 665 | LGJ400/50 |
| 17204 | J500B | Φ68 | 1080 | Φ56 | 740 | LGJ500/65 |
| 17205 | J630B | Φ83 | 1180 | Φ63 | 800 | LGJ630/55 |
| 17206 | J720B | Φ83 | 1196 | Φ63 | 816 | LGJ720/55 |
| 17207 | J900B | Φ89 | 1180 | Φ73 | 800 | LGJ900/75 |
| 17208 | J1000B | Φ95 | 1400 | Φ75 | 1020 | LGJ1000/80 |
| 17209 | JBZ1250 | Φ114 | 2280 | Φ86 | 1190 | JL1/G2A-1250 |
| Item No. | Model | Main size(MM) | Application ground wire | |||
| D | L | d | L1 | |||
| 17213 | J55G | Φ30 | 450 | Φ24 | 280 | GJ50,GJ55 |
| 17214 | J70G | Φ30 | 510 | Φ24 | 340 | JLB65,GJ70 |
| 17215 | J80G | Φ34 | 510 | Φ27 | 340 | GJ80 |
| 17216 | J95G | Φ34 | 585 | Φ27 | 415 | JLB95 |
| 17217 | J100G | Φ38 | 590 | Φ28 | 390 | LGJ50/30,LGJ100 |
| 17218 | J120G | Φ40 | 660 | Φ30 | 440 | GJ120,JLB120 |
| 17219 | J150G | Φ45 | 850 | Φ37 | 530 | GJ150,LGJ70/40,LGJ95/55 |
