Both Side Opening Hoisting Tackle Dual Sheave Block And Tackle Hoist
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | QHS2-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hoisting Tackle(Both Side Opening With Dual-Sheave) | Item No.: | 11281-11284 |
|---|---|---|---|
| Rated Load: | 30-100KN | Rope Diameter: | 11-18.5mm |
| Weight: | 6.3-18KG | Warranty: | 1 Year |
| Highlight: | Both Side Opening Hoisting Tackle,Hoisting Tackle Dual Sheave,Dual Sheave block and tackle hoist |
||
Product Description

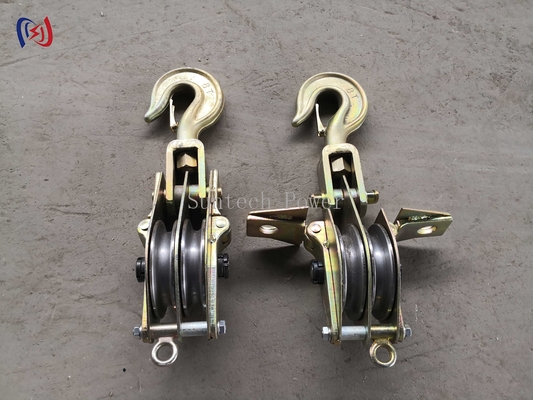

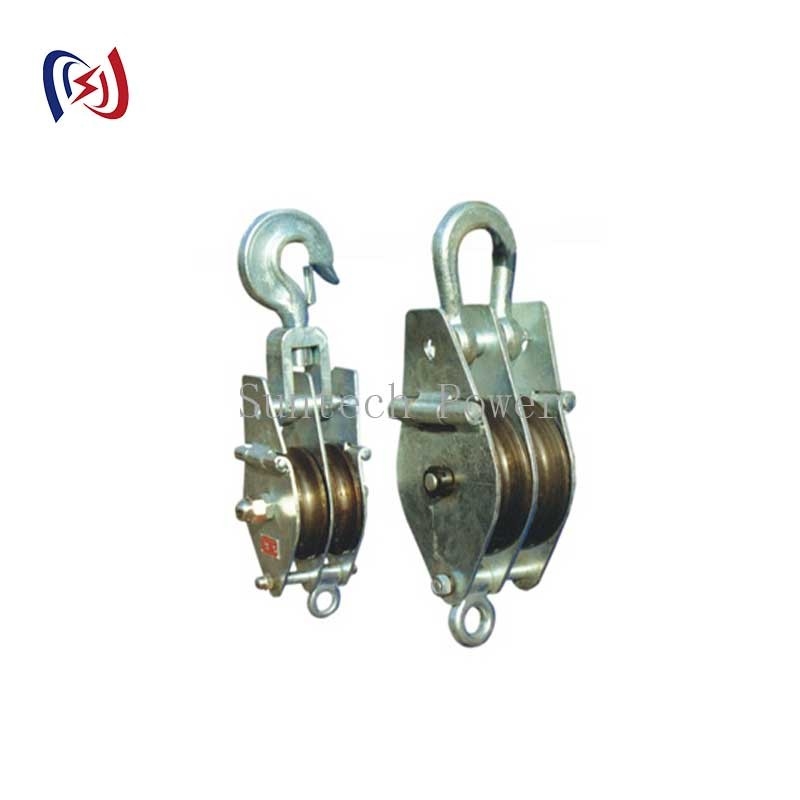

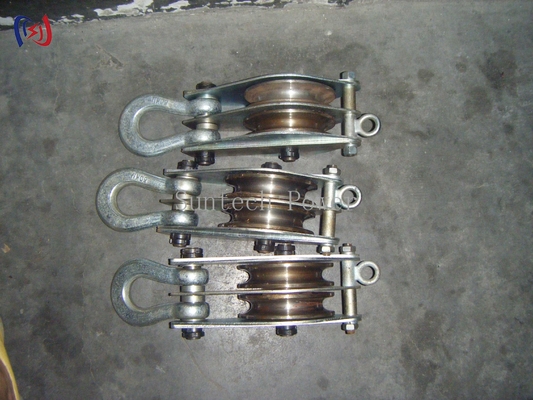

Hoisting Tackle Both Side Opening With Dual-Sheave
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Our iron hoisting tackle is widely applicable to erection of overhead line structure, lifting equipment, and other hoisting devices. This product is classified as hook type G, ring style H, and clevis type B,Thus the style our customer needs should be clearly indicated in the contract when the order is palced.
| Item number | Model | Rated load (kN) | Roller Dia×width(MM) |
Rope Diameter (mm) |
Weight (kg) |
| 11281 | QHS2-3 | 30 | Φ120×35 | ≤Φ10 | 6.3 |
| 11282 | QHS2-5 | 50 | Φ150×39 | ≤Φ11 | 11.0 |
| 11283 | QHS2-8 | 80 | Φ166×40 | ≤Φ13 | 16.0 |
| 11284 | QHS2-10 | 100 | Φ166×40 | ≤Φ13 | 18.0 |
