Skyward Corner 25 - 185mm Rolling Pulley Block Power Line Transmission Stringing Equipment
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHCZ-0.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Skyward Corner Stringing Block | Item No.: | 10281/10282 |
|---|---|---|---|
| Applicable Conductor: | 25-185mm | Rated Load: | 5KN |
| Weight: | 1.8-2.1KG | Remarks: | Aluminum Sheave Or Nylon Sheave |
| Warranty: | 1 Year | Usage: | Product Includes 2 Types Like Left And Right Direction.It Can Be Fixed On The Pole Arm For Conductor Pulling |
| Highlight: | Skyward Corner rolling pulley,rolling pulley 25mm,185mm transmission stringing equipment |
||
Product Description

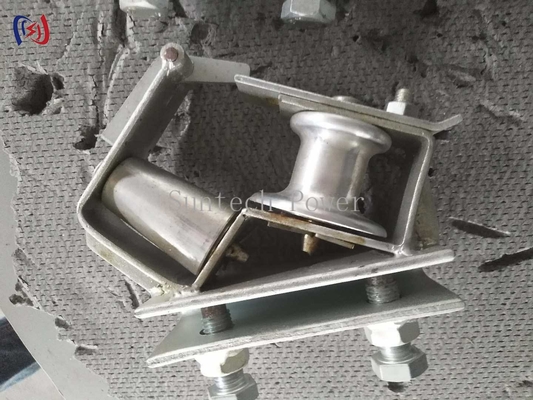

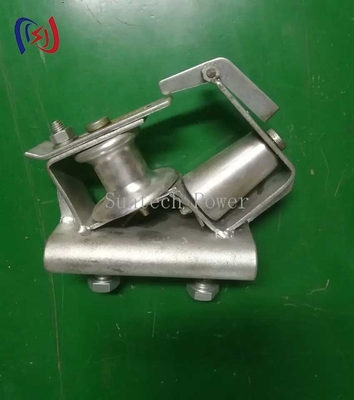

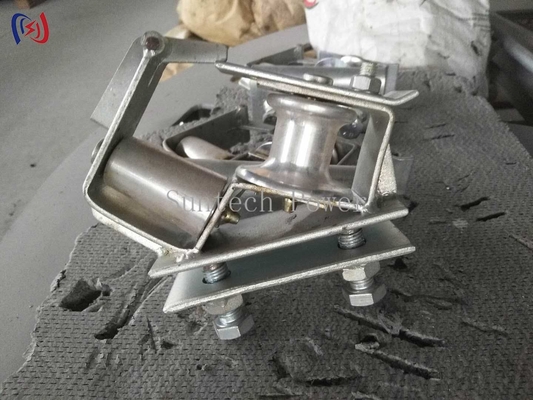

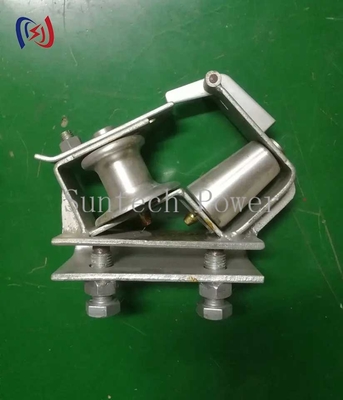

Skyward Corner Conductor Stringing Pulley Block Power Line Transmission Line Stringing Tools
Suntech Power is a manufacture of research and development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand, Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric power
construction. At the same time,agents of various imported construction tools and power equipment.
Usage

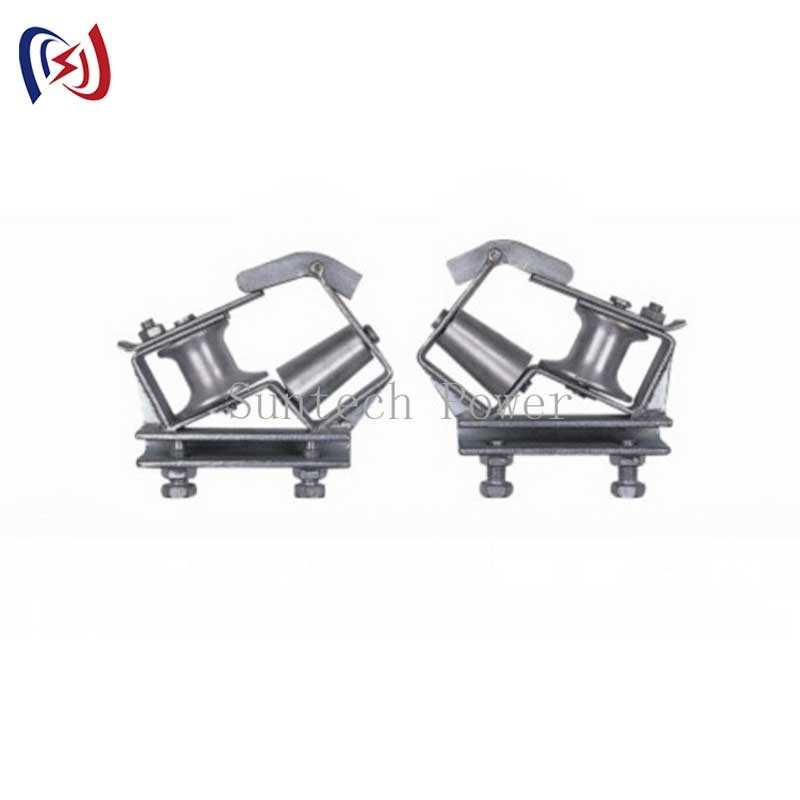

Product includes 2 types like left and right direction.It can be fixed on the pole arm for conductor pulling.
Such as our single sheave stringing block is divided into hook, clevis, and other types.
The specified type must be clearly indicated in the order form. We can customize the product with special specifications.
In the following table, the data of model refers to the outer diameter of sheave × width of sheave (mm).
| Item number | Model | Applicable Conductor(LGJ) | Rated load (kN) | Weight (kg) | Remarks |
| 10281 | SHCZ-0.5 | 25-185 | 5 | 2.4 | Aluminum Sheave |
| 10282 | SHCZN-0.5 | 25-185 | 5 | 1.8 | Nylon Sheave |
