Transmission Lines Dual Sheave Hoisting Knots Iron Lifting Block And Tackle
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | QHS2-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hoisting Tackle(Both Side Open With Dual Sheave) | Item No.: | 11281-11284 |
|---|---|---|---|
| Rated Load: | 30-100KN | Rope Diameter: | 11-18.5mm |
| Weight: | 6.3-18KG | Warranty: | 1 Year |
| Feature: | Loading Andunloading Steeel Wire Rope Conveniently With Double Side Opening. | Explain: | Hook Or Ring Type Is Need Indicated When Customer Place Order. |
| Highlight: | Transmission Lines hoisting knots,Dual Sheave hoisting knots,lifting block and tackle |
||
Product Description

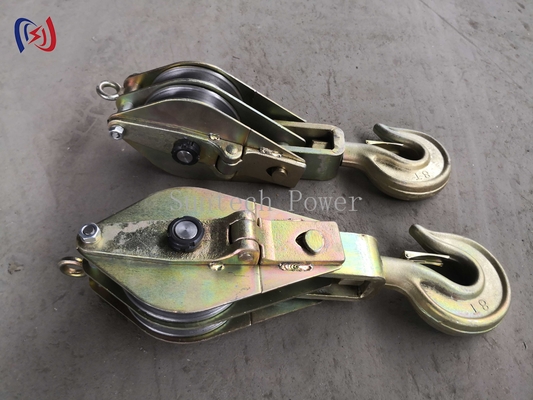

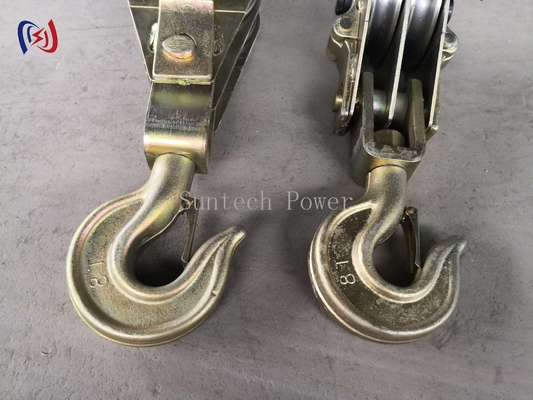

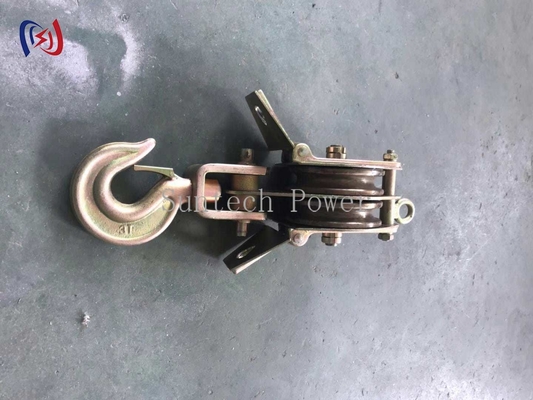

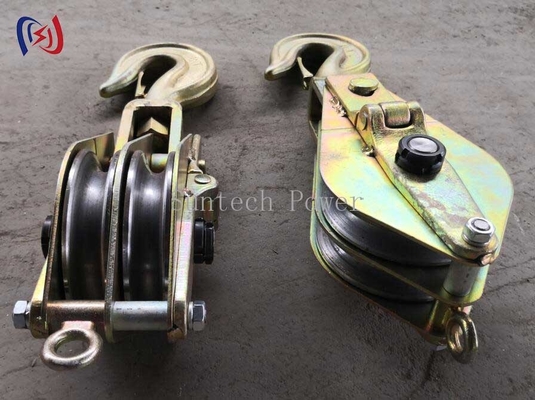

Transmission Lines Dual Sheave Iron Hoisting Tackle With Both Side Opening With Dual-Sheave
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

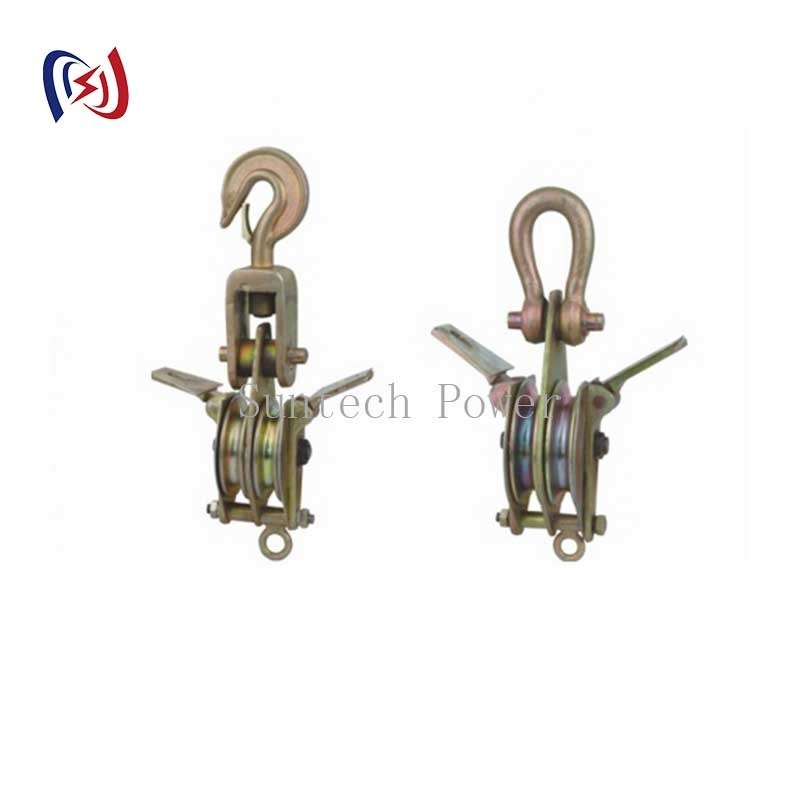

Our iron hoisting tackle is widely applicable to erection of overhead line structure, lifting equipment, and other hoisting devices. This product is classified as hook type G, ring style H, and clevis type B,Thus the style our customer needs should be clearly indicated in the contract when the order is palced.
| Item number | Model | Rated load (kN) | Roller Dia×width(MM) |
Rope Diameter (mm) |
Weight (kg) |
| 11281 | QHS2-3 | 30 | Φ120×35 | ≤Φ10 | 6.3 |
| 11282 | QHS2-5 | 50 | Φ150×39 | ≤Φ11 | 11.0 |
| 11283 | QHS2-8 | 80 | Φ166×40 | ≤Φ13 | 16.0 |
| 11284 | QHS2-10 | 100 | Φ166×40 | ≤Φ13 | 18.0 |
