160mm Ending Conductor Stringing Blocks Cable Pulley Wheel Silence Rotation Traction Wheel
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SH30J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Ending Block | Item No.: | 12191-12193 |
|---|---|---|---|
| Ratel Load: | 30-80KN | Sheave Diameter: | 140-160mm |
| Sheave Width: | 36-56mm | Weight: | 5.3-16.5KG |
| Warranty: | 1 Year | Uses: | Apply To Tighten Up Conductor Wire. |
| Feature: | Side Plate Can Open And It Is Convenient For Line Consuruction. | ||
| Highlight: | Ending Conductor Stringing Blocks,160mm Conductor Stringing Blocks,140mm Cable Pulley Wheel Silence Rotation |
||
Product Description
Ending Block Cable Pulley Wheel Silence Rotation Traction Wheel Single Block Pulley Rope
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

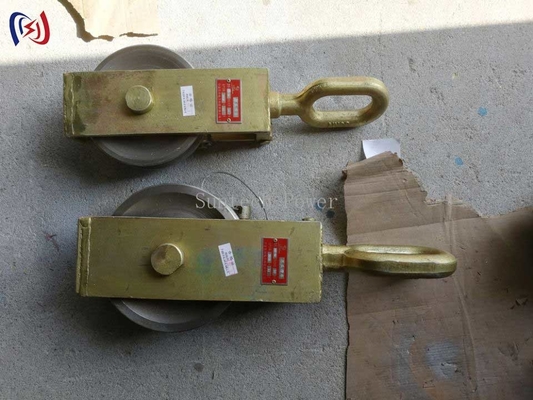

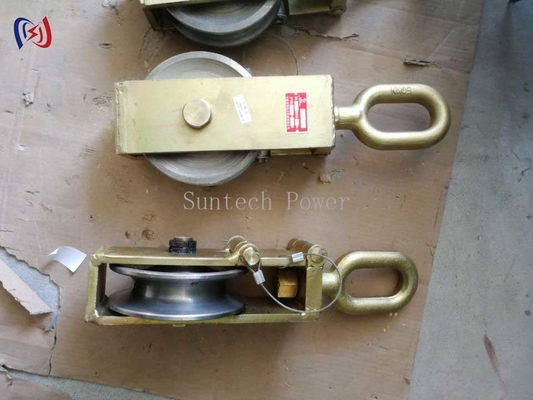

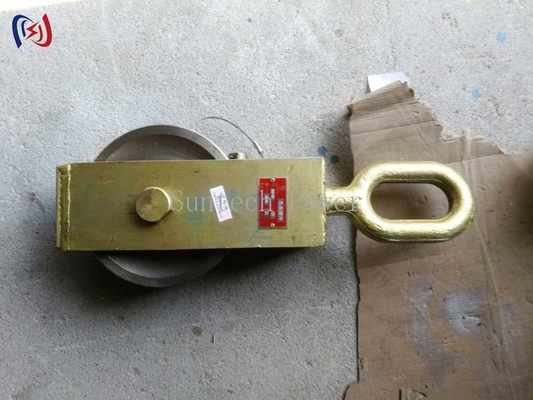

Stringing Tools Terminal Pulley Block, Ending Pulley block it is to tighten up conductor, the last pulley block's feture is the side board can open, it is convenient to construct.
Technical Parameters
|
Item number |
12191 |
12192 |
12193 |
|
Model |
SH30J |
SH50J |
SH80J |
|
Rated load (kN) |
30 |
50 |
80 |
|
Diameter of sheave (mm) |
Φ140 |
Φ160 |
Φ180 |
|
Width of sheave (mm) |
36 |
48 |
56 |
|
Weight (kg) |
5.3 |
9.0 |
16.5 |
