5KN - 20KN Single Sheave Stringing Block Conductor Overhead Transmission Line Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHD-120x30--SHD-400x80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Single Sheave Stringing Block | Item No.: | 10171-10199 |
|---|---|---|---|
| Applicable Conductor ACSR: | LGJ25~70-LGJ400~500 | Rated Load: | 5-20KN |
| Weight: | 1.5-15KG | Remarks: | Aluminum Sheave Or Nylon Sheave |
| Warranty: | 1 Year | ||
| Highlight: | 5KN block conductor,20KN block conductor,Single Sheave Stringing Block |
||
Product Description
Single Sheave Stringing Block Maximize Efficiency with Suntech Power Tools Overhead Transmission Line Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

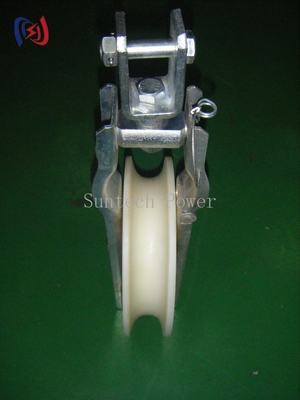

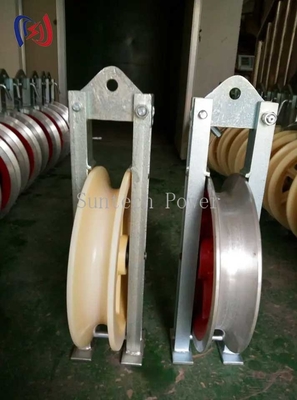

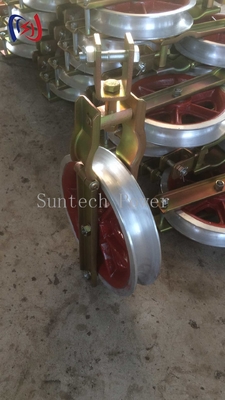

Apply to pull conductor on straight pole.Splicing sleeve,steel wire rope and connector can pass through the groove.

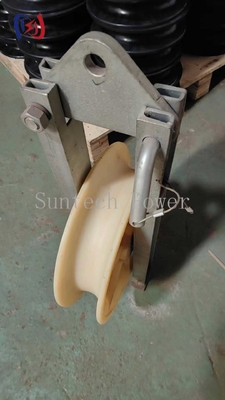

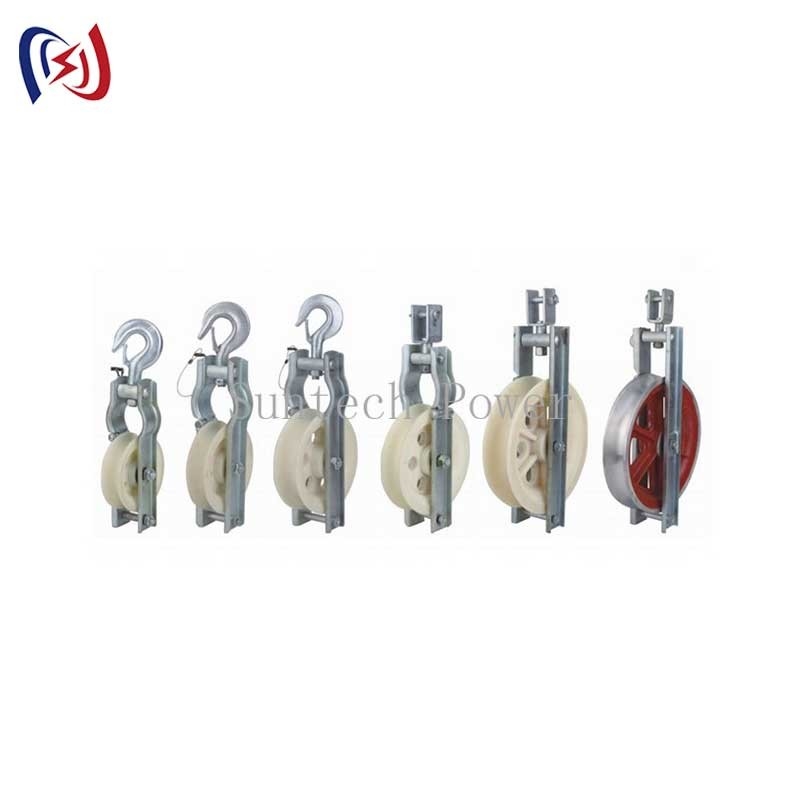

Hanger includes hook type and plate type.This is need indicated when customer place order.
The model represents the outer diameter and the sheave width of the stringing block.
Table description
| Item number | Model | Suitable conductor | Rated load(KN) | Weight(kg) | Remark |
| 10171 | SHD-120*30 | LGJ25~70 | 5 | 1.5 |
Aluminium sheave |
| 10172 | SHD-160*40 | LGJ95~120 | 10 | 2.5 | |
| 10173 | SHD-200*40 |
LGJ150~240 |
15 | 4 | |
| 10174 | SHD-200*60 | LGJ150~240 | 15 | 4.6 | |
| 10175 | SHD-250*40 | LGJ150~240 | 20 | 4.6 | |
| 10176 | SHD-250*60 | LGJ300~400 | 20 | 6 | |
| 10177 | SHD-270*60 | LGJ300~400 | 20 | 7 | |
| 10178 | SHD-320*60 | LGJ300~400 | 20 | 9.5 | |
| 10179 | SHD-400*80 | LGJ400~500 | 20 | 15 | |
| 10191 | SHDN-120*30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160*40 | LGJ95~120 | 10 | 2.5 | |
| 10193 | SHDN-200*40 | LGJ150~240 | 15 | 3.6 | |
| 10194 | SHDN-200*60 | LGJ150~240 | 15 | 4 | |
| 10195 | SHDN-250*40 | LGJ150~240 | 20 | 4 | |
| 10196 | SHDN-250*60 | LGJ300~400 | 20 | 4.5 | |
| 10197 | SHDN-270*60 | LGJ300~400 | 20 | 5.6 | |
| 10198 | SHDN-320*60 | LGJ300~400 | 20 | 6.7 | |
| 10198-1 | SHDN-320*80 | LGJ300~400 | 20 | 8 | |
| 10199 | SHDN-400*80 | LGJ400~500 | 20 | 13 | |
| 10199-1 | SHDN-400*100 | LGJ400~500 | 20 | 15 | |
| 10199-2 | SHDN-400*120 | LGJ400~500 | 20 | 18 |
