Hydraulic Cable Reel Stand 50KN - 300KN Cable Drum Stand
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SI-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Type Cable Reel Stand | Item No.: | 21346-21344 |
|---|---|---|---|
| Rated Load: | 50-300KN | Diameter: | <2400-<5000mm |
| Width: | <1600-<3100mm | Hole Diameter: | 76-200mm |
| Weight: | 172-600KG | Warranty: | 1 Year |
| Uses: | Apply To Carring Cable Reel. | Feature: | Hydraulic Lifter With Small Wheels In The Bottom For Easy Moving. |
| Explain: | Standard Configuration, Including Shaft. | ||
| Highlight: | Hydraulic Cable Reel Stand,Cable Reel Stand 50KN,300KN Cable Drum Stand |
||
Product Description

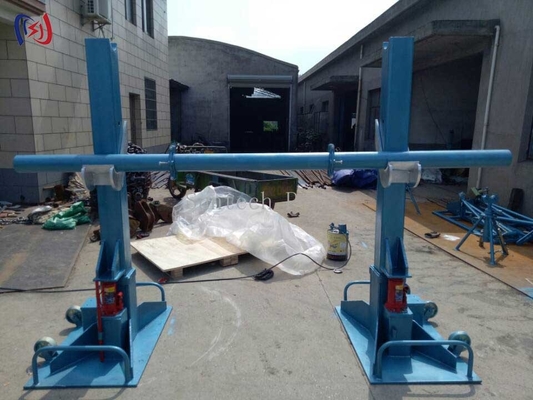

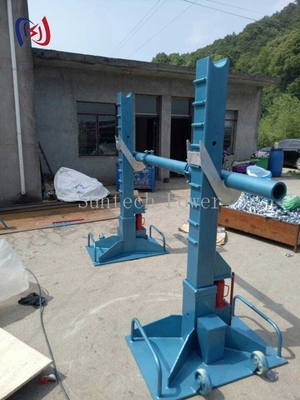

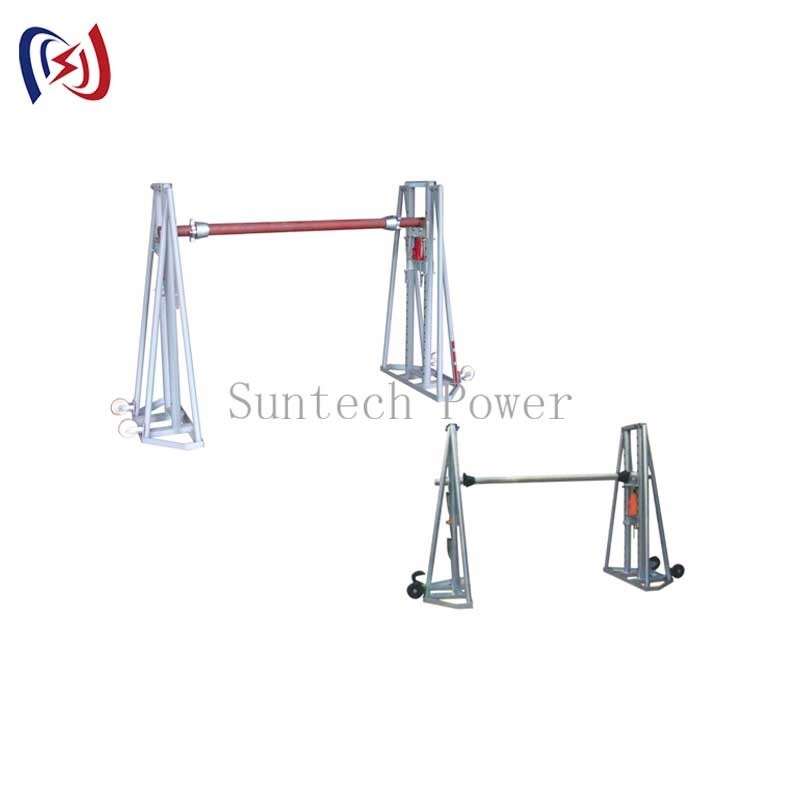

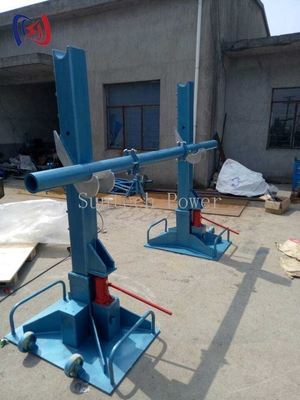

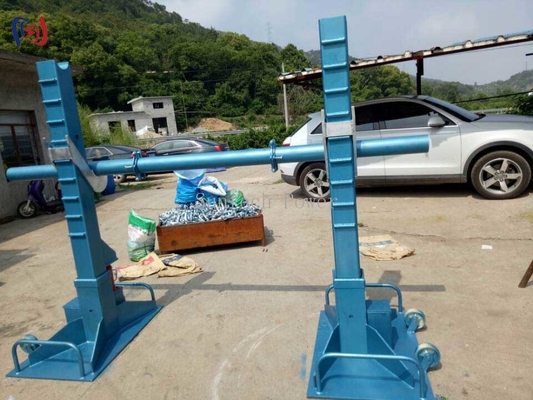

Hydraulic Type Cable Reel Stand Cable Drum Stand Transmission Line Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Features
It is applicable to be as the support of large cable reel in laying cables in the city.
It is easy to move with the trundles in the bottom.
It can be equipped with a braking device, using the foot brake.
Application:
It uses hydraulic to lift. The bottom with a small wheel, so it is easy to move. It can be equipped with brake device, using the foot brake. Apply to carrying cable reel.
Technical Data
|
Item number |
Model |
Rated Load(KN)
|
Applicable Cable Reel (mm) |
Weight (kg)
|
||
|
Diameter |
Width |
Hole Diameter |
||||
|
21346 |
SI-5 |
50 |
≤ Φ2400 |
≤1600 |
Φ76-103 |
172 |
|
21347 |
SI-10 |
100 |
≤ Φ2700 |
≤1700 |
Φ120-135 |
230 |
|
21348 |
SI-10A |
100 |
≤ Φ3400 |
≤1900 |
Φ120-135 |
230 |
|
21349 |
SI-16 |
160 |
≤ Φ4000 |
≤2500 |
Φ125-200 |
325 |
|
21343 |
SI-20 |
200 |
≤ Φ4000 |
≤2500 |
Φ135-160 |
450 |
|
21344 |
SI-30 |
300 |
≤ Φ5000 |
≤3100 |
Φ160-200 |
600 |
