Cable Turntable Stringing Cable Reel Stand Drum Release Cable Reel Rotator Platform
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | HZT1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Cable Turntable | Item No.: | 21551-21553 |
|---|---|---|---|
| Applicable Drum Diameter: | 500-2500mm | Maximum Weight Of Drum: | 500-1500KG |
| Dimension: | 470x172x105-900x230x130mm | Single Piece Weight: | 17-73.5KG |
| Warranty: | 1 Year | ||
| Highlight: | Turntable Cable Reel Stand,Stringing Cable Reel Stand,Release Cable Reel Rotator Platform |
||
Product Description
Cable Turntable Stringing Usage Drum Release Cables Function Stand Cable Reel Rotator Platform
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either

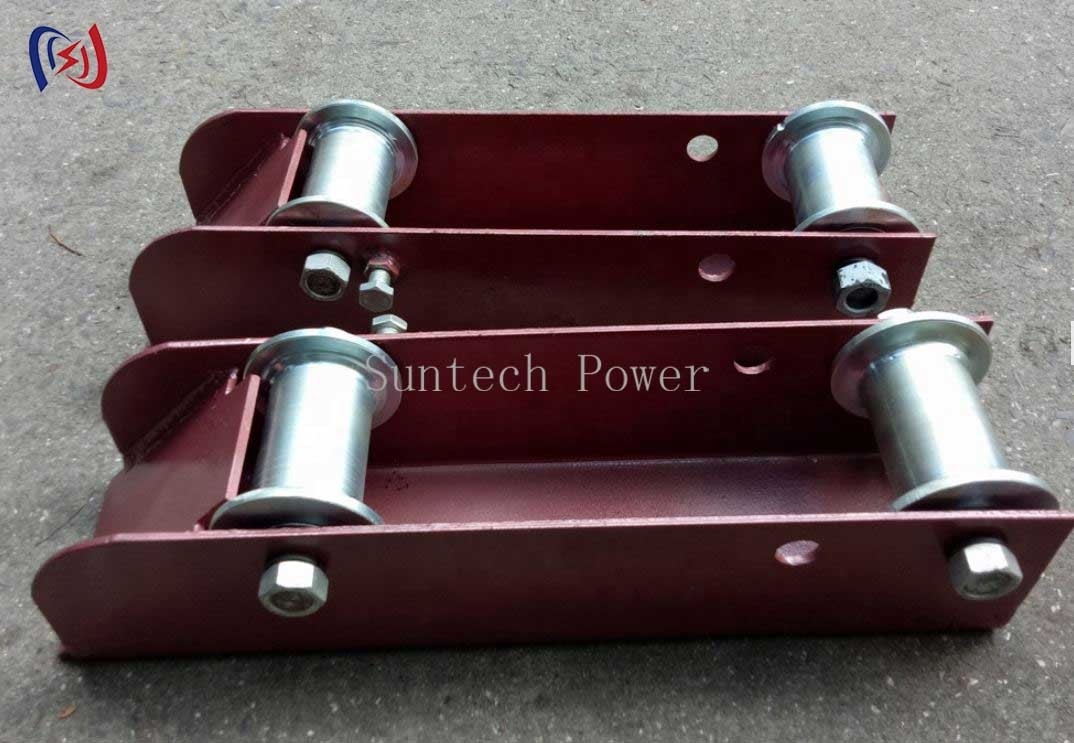

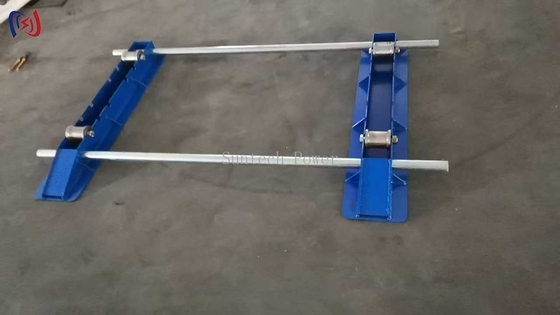

Cable Reel Rotator Platform
servesas cable reel spread fixture .apply to electric power ,communication andrelatively industry to lay cable .the product consisting of turntable ,roller,axis of roller and lock fixture ,mounte.
Using method:
1. Mountedon two roller base on the drum diameter.
2 .Lockthe roller on the slope.
3. Adjustroller base on the drum diameter.
4. Slopesthe drum rim up the turntable along its slants.
5. Relievethe locking roller ,then you can turn the drum .
Technical Data
| Item number | 21553 | 21552 | 21551 |
| Mode | HZT1250 | HZT1800 | HZT2500 |
| Appllicable drum diameter (mm) | φ500～1250 | φ500～1800 | φ500～2500 |
| Maximum weight of drum(kg) | 500 | 1500 | 1500 |
| Dimension(mm) | 470×172×105 | 650×150×145 | 900×230×130 |
| Single piece weight (kg) | 17 | 40 | 73.5 |
