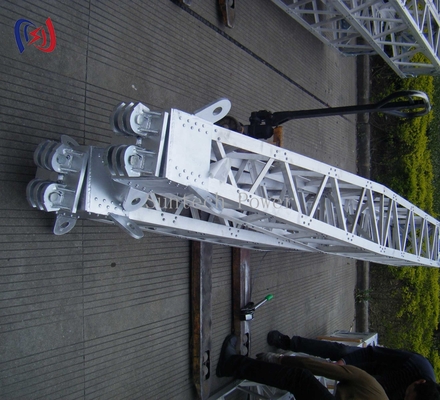

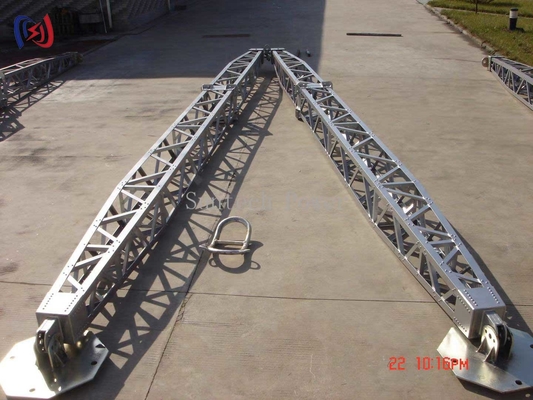

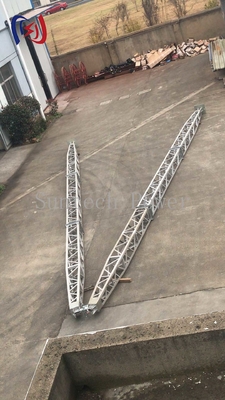

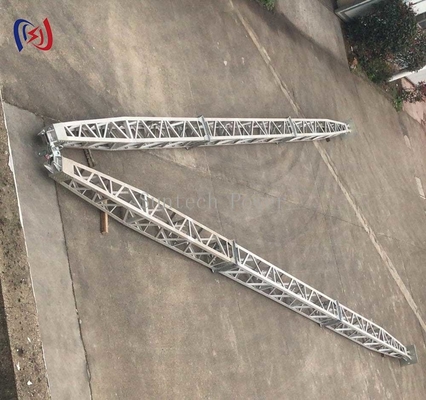

A Shape Lattice Gin Pole Stringing Tools In Tower Erection Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | LBR-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 M/Month |
|
Detail Information |
|||
| Name: | A-shape Lattice Gin Pole | Item No.: | 03361-03615 |
|---|---|---|---|
| Range: | 8-28M | Section: | 250x250-700x700mm |
| Main Part Size: | 50x50x4-80x80x6mm | Accessory Size: | 25x25x3-50x50x4mm |
| Vertical Load: | 72-26--600-230KN | Safety Factor: | 2.5K |
| Weight: | 10.5x2-75x2 KG/M | Warranty: | 1 Year |
| Highlight: | Tower Erection Tools,inspection pulleys,stringing tools |
||
Product Description
A Shape Tubular Gin Pole Stringing Tools In Tower Erection Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Uses:Apply to assemble and erect the tower and pole in transmission line construction.

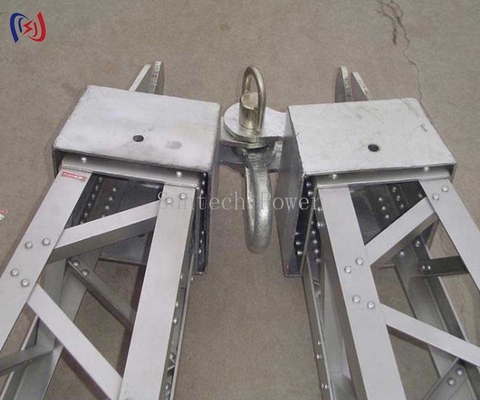

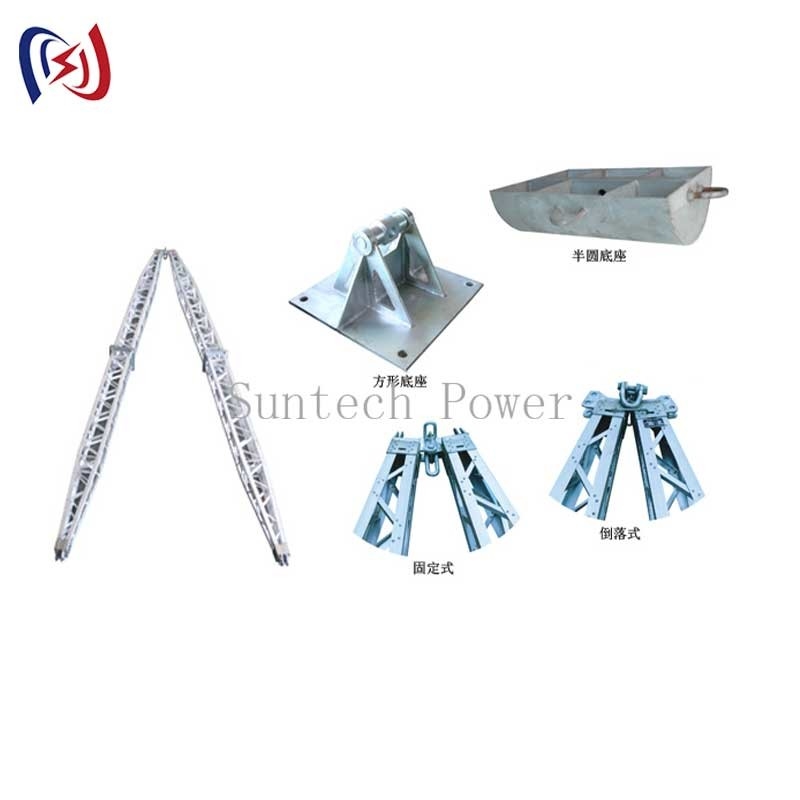

Explain:The head part of the Gin Poles is inverted,and the base part of gin pole is semicircle or square.And it should be noted when ordering.
03361-03445 is aluminum alloy material.03611-03615 is manganese steel material.
| Item No. | Model | Range(M) | Section(MM) | Main part size(MM) | Accessory size(MM) | Vertical Load(KN) | Safety Factor(K) | Weight(KG/M) |
| 03361 | LBR-250 | 8-13 | 250*250 | 50*50*4 | 25*25*3 | 72-26 | 2.5 | 10.5*2 |
| 03371 | LBR-300A | 8-16 | 300*300 | 50*50*4 | 25*25*3 | 90-26 | 10.5*2 | |
| 03380 | LBR-300B | 300*300 | 50*50*5 | 30*30*3 | 11.0*2 | |||
| 03381 | LBR-350 | 8-16 | 350*350 | 50*50*5 | 30*30*3 | 120-35 | 10.5*2 | |
| 03391 | LBR-400A | 11-18 | 400*400 | 50*50*5 | 30*30*3 | 147-38 | 11.0*2 | |
| 03401 | LBR-400B | 400*400 | 60*60*5 | 30*30*3 | 14.6*2 | |||
| 03411 | LBR-500A | 13-20 | 500*500 | 60*60*5 | 30*3*3 | 162-81 | 18*2 | |
| 03415 | LBR-500B | 500*500 | 60*60*5 | 40*40*3 | 20*2 | |||
| 03421 | LBR-500C | 500*500 | 70*70*6 | 40*40*3 | 256-127 | 21*2 | ||
| 03425 | LBR-500D | 500*500 | 70*70*6 | 50*50*4 | 22*2 | |||
| 03431 | LBR-600A | 15-22 | 600*600 | 60*60*6 | 40*40*3 | 171-96 | 20*2 | |
| 03435 | LBR-600B | 600*600 | 70*70*6 | 40*40*3 | 21*2 | |||
| 03441 | LBR-600C | 600*600 | 70*70*6 | 50*50*4 | 275-150 | 22*2 | ||
| 03445 | LBR-600D | 600*600 | 80*80*6 | 50*50*4 | 24*2 | |||
| 03611 | GBR-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 75-35 | 33*2 | |
| 03612 | GBR-400 | 12-18 | 400*400 | 56*56*5 | 30*30*3 | 100-75 | 43*2 | |
| 03613 | GBR-500 | 14-24 | 500*500 | 63*63*5 | 40*40*4 | 185-125 | 54*2 | |
| 03614 | GBR-600 | 16-26 | 600*600 | 70*70*6 | 40*40*4 | 420-145 | 63*2 | |
| 03615 | GBR-700 | 18-28 | 700*700 | 80*80*6 | 50*50*4 | 600-230 | 75*2 |
