630mm 720mm ACSR Conductor Cutter Steel Wire Cutters Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | J30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Conductor Cutter And Steel Wire Cutter | Item No.: | 16247-16239 |
|---|---|---|---|
| Cutting Range: | Cutting Steel Rope Section Diameter Below 33mm | Warranty: | 1 Year |
| Highlight: | 630mm Transmission Line Stringing Tools,720mm Conductor Cutter,720mm Steel Wire Cutters |
||
Product Description

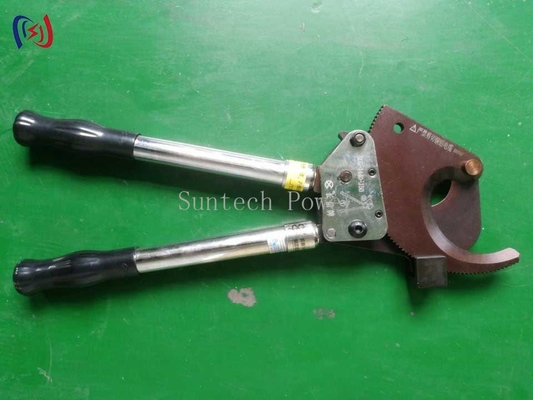

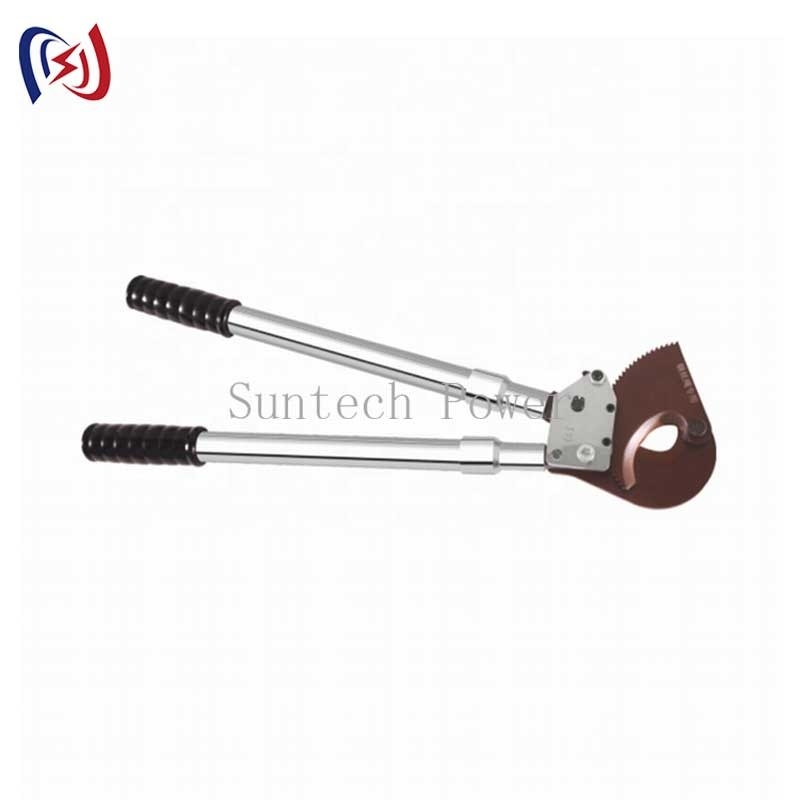

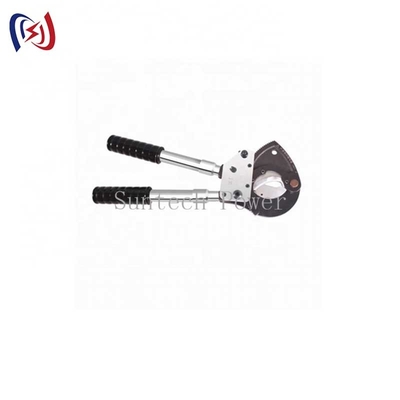

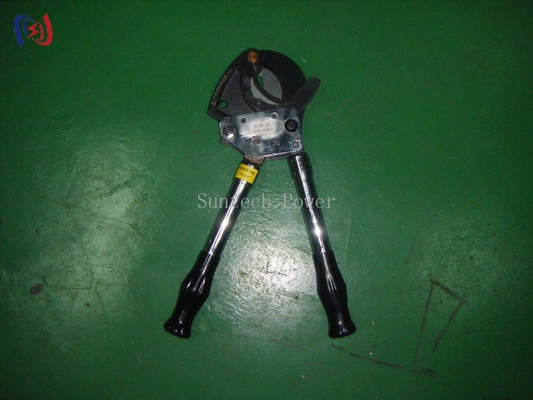

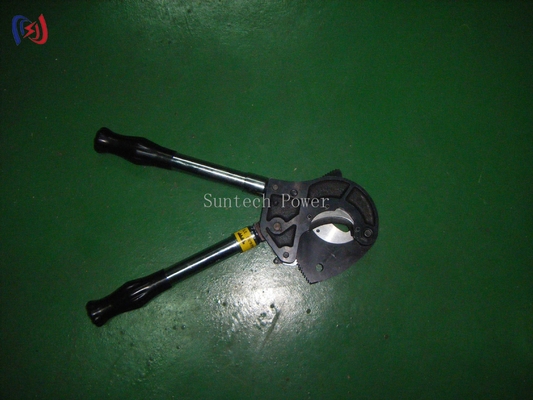

Conductor Cutter And Steel Wire Cutter Transmission Line Stringing Tools
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Feature
1. Cutting the steel wire rope;
2. It could be operated by one hand only due to light weight;
Specification
| Item number | Model | Cutting Range |
| 16247 | J30 |
Cutting ACSR with section below 630mm . Cutting steel strand with section below 100 mm. |
| 16246 | J13 |
Cutting ACSR with section below 720mm . Cutting steel strand with section below 150 mm. |
| 16245 | J25 |
Cutting ACSR with section below 800mm . Cutting steel strand with section below 150 mm. |
| 16248 | J50 |
Cutting ACSR with section below 1440mm . Cutting steel strand with section below 180 mm. |
| 16237 | J14 | Cutting steel rope section diameter below Φ20 mm |
| 16238 | J25A |
Cutting steel rope section diameter below Φ30 mm |
| 16239 | J33 |
Cutting steel rope section diameter below Φ33 mm |
