280mm -1040mm Manual Chain Hoist Transmission Line Quick Connect Tool Stringing
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | Manual |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Manual Chain Hoist | Item No.: | 14282-14351 |
|---|---|---|---|
| Rated Load: | 5-200KN | Minimum Distance Between Hooks: | 280-1040mm |
| Standard Lifting Height: | 3M | Number Of Lines Of Lifting Chain: | 1/2/4/8 Row |
| Weight: | 10-193KG | Weight Of 1m Chain: | 1.7-19.4KG |
| Warranty: | 1 Year | ||
| Highlight: | 280mm Manual Chain Hoist,1040mm Manual Chain Hoist,1040mm transmission line quick connect tool |
||
Product Description

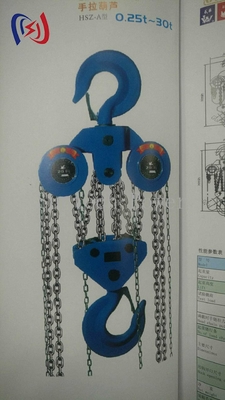

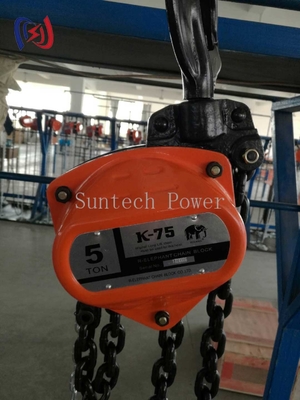

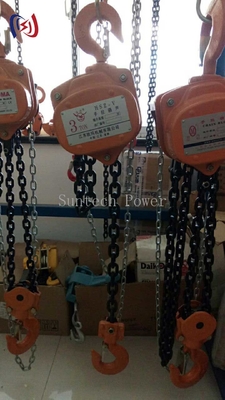

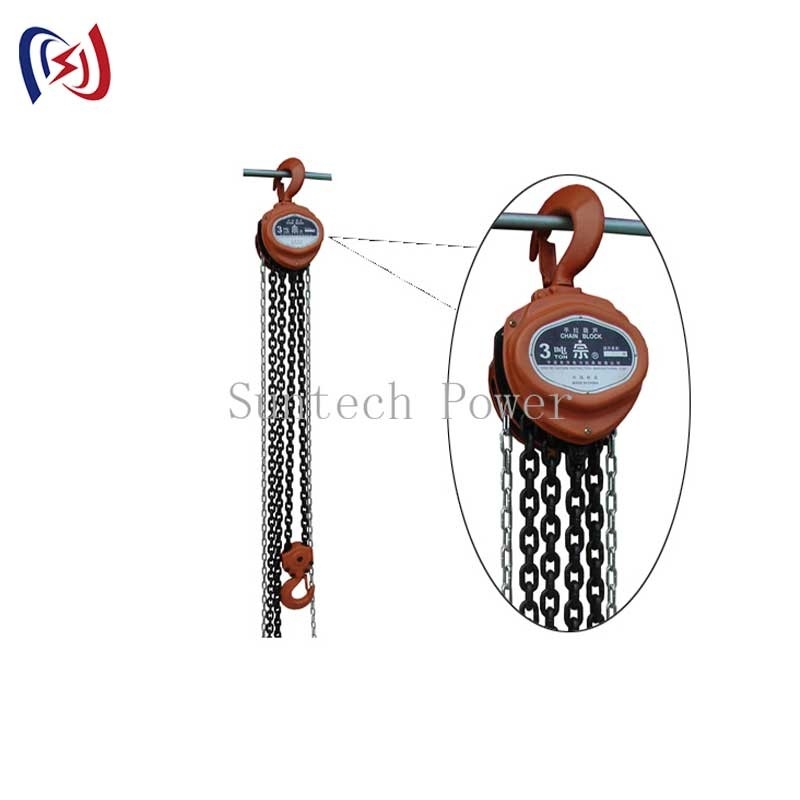

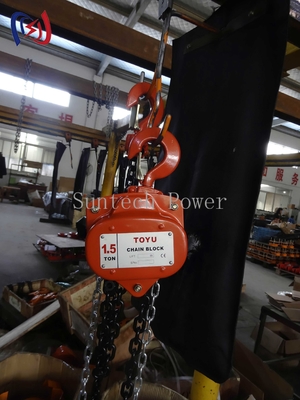

Manual Chain Hoist Transmission Line Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Feature
1. Rated Load: 5~200kN
2. Chains Length: 2.5~12m
3. Steel Made
4. Min. distance between hooks: 280~1040mm
5. The lifting hoists are made of steel and equipped with mechanical brake; they are designed to facilitate and accelerate chain positioning operations.
| Item No. | 14282 | 14292 | 14302 | 14312 | 14321 | 14331 | 14341 | 14351 | |
| Rated load(KN) | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 | |
| Minimum distance between hooks(MM) | 280 | 320 | 390 | 410 | 485 | 600 | 820 | 1040 | |
| Standard lifting height(M) | 3 | ||||||||
| Number of lines of lifting chain(row) | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
| Net weight(KG) | 10 | 12 | 19 | 20 | 27 | 45.5 | 83 | 193 | |
| Item No. | Lifting height(4M) | 14283 | 14293 | 14303 | 14313 | 14322 | 14332 | 14342 | 14352 |
| Lifting height(5M) | 14284 | 14294 | 14304 | 14314 | 14323 | 14333 | 14343 | 14353 | |
| Lifting height(6M) | 14285 | 14295 | 14305 | 14315 | 14324 | 14334 | 14344 | 14354 | |
| Lifting height(8M) | / | / | / | / | 14325 | 14335 | 14345 | 14355 | |
| Lifting height(10M) | / | / | / | / | 14326 | 14336 | 14346 | 14356 | |
| Weight of 1M chainKG | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | |
