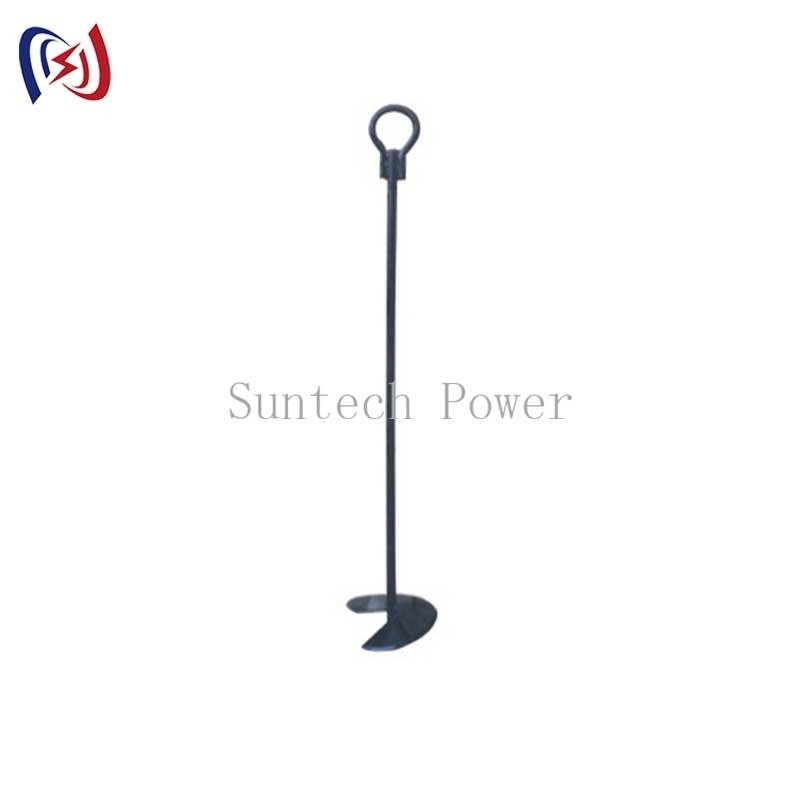

10KN - 50KN Earth Drill Construction Traction Line Lifting Floor Pole Screw Ground Anchor
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SDZ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Earth Drill | Item No.: | 02102-02103 |
|---|---|---|---|
| Rated Load: | 10-50KN | Breaking Load: | 20-100KN |
| Maximum Depth: | 1100-1500mm | Disk Diameter: | 250-350mm |
| Length: | 1300-1710mm | Weight: | 10.2-21KG |
| Warranty: | 1 Year | ||
| Highlight: | 10KN earth drill,50KN ground anchor,50KN Underground Cable Installation Equipment |
||
Product Description
Earth Drill Construction Traction Line Lifting Floor Pole Screw Ground Anchor Earth Drill
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Application
1.Anchoring utility poles and similar structures. 2.Supporting guyed masts, such as radio transmission towers. 3.Tethering marine structures, such as floating docks and pipelines. 4.Structural support of temporary buildings and structures,such as circus tents and outdoor stages. 5.Landscape, anchoring trees, often semi-mature transplants. 6.General security, as in anchoring small aircraft.
Usage
Apply to anchor temporarily in line construction.
| Item number | Model |
Rated load (KN) |
Breaking load (KN) |
Maximum depth (mm) |
Disk diameter (mm) |
Length (mm) |
Weight (mm) |
|
02101 |
SDZ1 |
10 |
20 | 1100 | Φ250 | 1300 | 10.2 |
| 02102 | SDZ3 | 30 | 60 | 1500 | Φ300 | 1710 | 14.6 |
| 02103 | SDZ5 | 50 | 100 | 1500 | Φ350 | 1710 | 21.0 |
