30KN - 160KN Ground Anchor Stringing Metal Ground Screw Anchors 105KG
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SMD3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Ground Anchor | Item No.: | 02120-02123 |
|---|---|---|---|
| Allowable Pull: | 30-160KN | Valid Depth: | 1.8-2.5M |
| Weight: | 22.5-105KG | Warranty: | 1 Year |
| Highlight: | 160kn ground anchor,metal ground screw anchors,ground screw anchors 105kg |
||
Product Description
Ground Anchor Stringing Metal Ground Anchors
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.

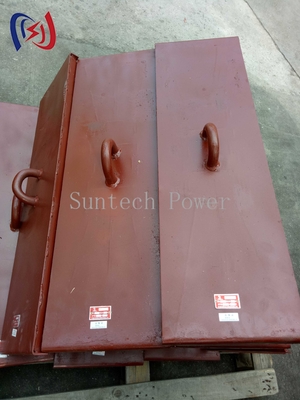

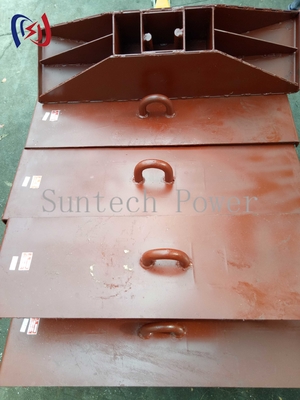

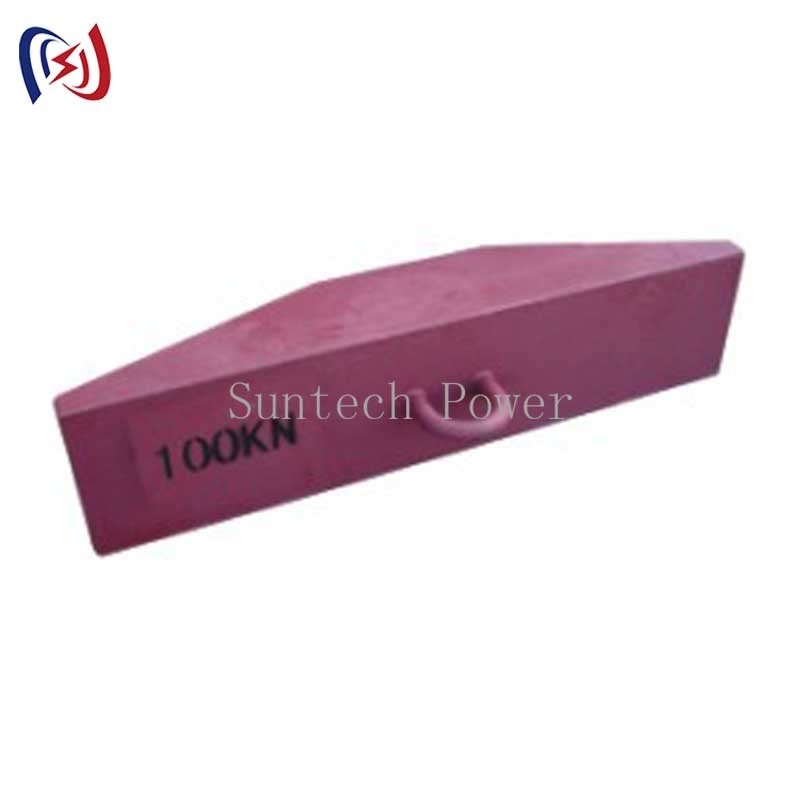

Application This ground anchor is applied to fixing and fastening the winches, conductor pullers, conductor tensioners, blocks and temporary pulling ropes in line construction. The anchor is of welded structure of steel plate with corrosion-resistant primer on its surface, and it is durable in its quality. Bury the anchor under the ground in appropriate depth and make it well tamped, lead the steel rope which fixed on it to its direction upon the ground.
Usage
Excavate ground anchors pit according to the required depth. Put the anchor in the ground anchors pit.Anchor the anchor rope and the ground anchor,and oblique to the elicitation. When the fill is tamped,it can be used.
Technical Data
| Item number | Model |
Allowable pull(KN) |
Valid depth(m) | Main size(mm) | Weight(kg) | |||
| A | B | C | d | |||||
| 02120 | SDM3 | 30 | 1.8 | 800 | 250 | 150 | Φ25 | 22.5 |
| 02121 | SDM5 | 50 | 1.8 | 900 | 270 | 180 | Φ28 | 30 |
| 02122 | SDM10 | 100 | 2.0 | 1200 | 290 | 220 | Φ36 | 55 |
| 02123 | SDM16 | 160 | 2.5 | 1500 | 500 | 258 | / | 105 |
