Insulated Hoisting Tackle Epoxy Resin Plate Nylon Sheave Rope Hoist Block And Tackle
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | QHJ1x1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Insulated Hoisting Tackle(Epoxy Resin Plate With Nylon Sheave) | Item No.: | 11401-11443 |
|---|---|---|---|
| Sheave: | 1/2/3/4 | Rated Load: | 5-50KN |
| Max.Rope Diameter: | 10-22mm | Weight: | 1.3-8.3KG |
| Warranty: | 1 Year | ||
| Highlight: | Insulated Hoisting Tackle,Hoisting Tackle ISO9001,Nylon rope hoist block and tackle |
||
Product Description

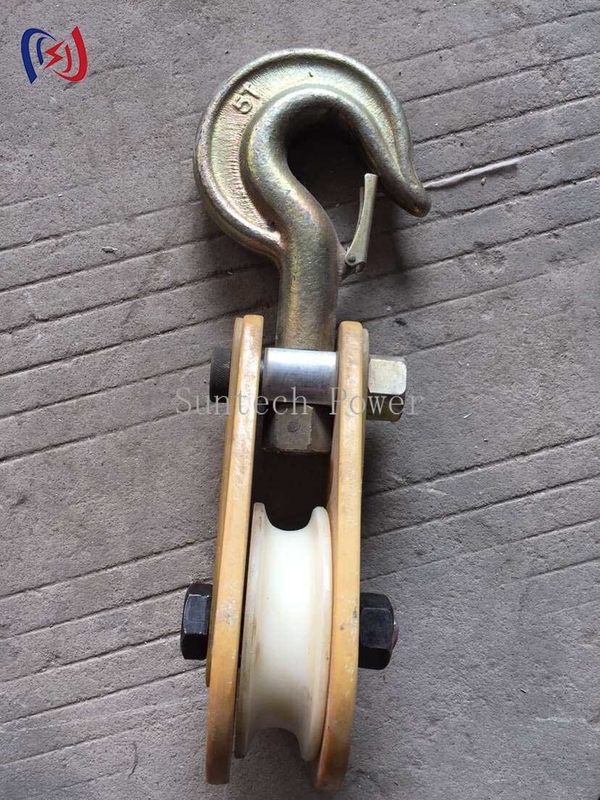

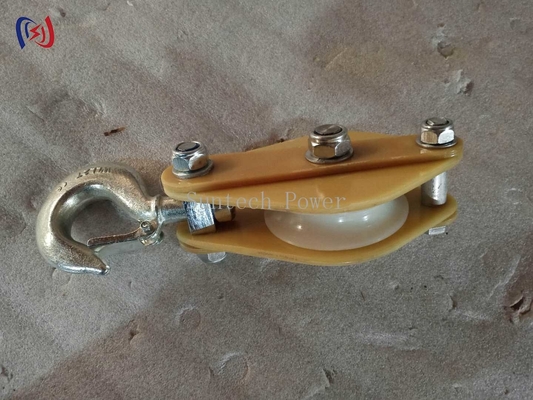

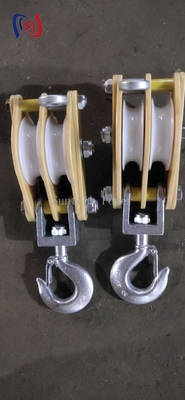

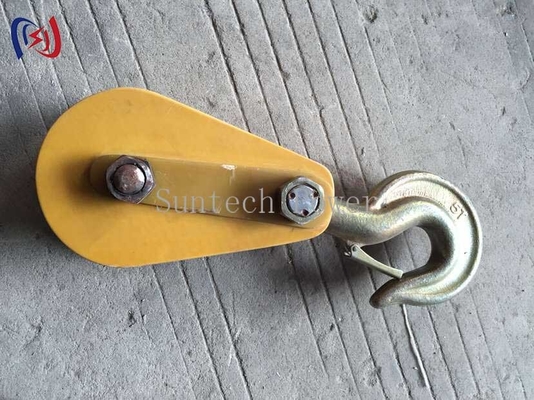

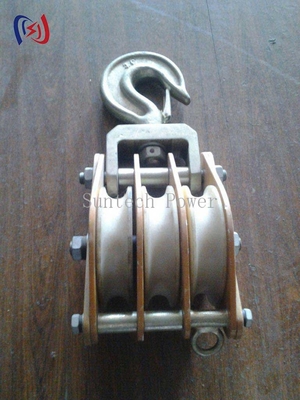

Insulated Hoisting Tackle Epoxy Resin Plate With Nylon Sheave
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Uses:Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Features:Product is made of aluminum alloy plate with MC nylon wheel,it has light weight.
Explain:Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
Hoisting Aluminous alloy and MC nylon sheave tackle are suitable fordifference diameter steel ropes; the wheels are mounted on ball bearings.
Theframe is made of aluminium alloy or galvanized steel. Rope and swivel joint notincluded.
| Item number | Model | Number of sheaves | Rated load (kN) |
Roller Diaxwidth (MM) |
MAX. Rope Diamete (mm) |
Weight (kg) |
| 11101 | QHN1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11102 | QHN1x2 | 2 | Φ80×27 | Φ6 | 2 | |
| 11103 | QHN1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11111 | QHN2x1 | 1 | 20 | Φ120×35 | Φ10 | 2 |
| 11112 | QHN2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11113 | QHN2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11121 | QHN3x1 | 1 | 30 | Φ150×39 | Φ11 | 3 |
| 11122 | QHN3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11123 | QHN3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11131 | QHN5x1 | 1 | 50 | Φ166×40 | Φ13 | 5 |
| 11132 | QHN5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11133 | QHN5x3 | 3 | Φ120×35 | Φ10 | 5 | |
| 11141 | QHN8x1 | 1 | 80 | Φ205×49 | Φ18 | 7 |
| 11142 | QHN8x2 | 2 | Φ166×40 | Φ13 | 8 | |
| 11143 | QHN8x3 | 3 | Φ150×39 | Φ11 | 8 | |
| 11151 | QHN10x1 | 1 | 100 | Φ246×60 | Φ20 | 11 |
| 11152 | QHN10x2 | 2 | Φ166×40 | Φ13 | 10 | |
| 11153 | QHN10x3 | 3 | Φ150×39 | Φ11 | 12 |
