High Performance Hoisting Tackle For Electric Power Construction
Product Details:
Place of Origin: | Ningbo, China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | QH1x1 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Plywood Case |
Delivery Time: | 7-15days |
Payment Terms: | L/C,T/T |
Supply Ability: | 1000 PCS/Month |
Detail Information |
|||
Item No.: | 11181 | Model: | QH1x1 |
---|---|---|---|
Sheave: | 1/2/3 | Rated Load: | 10-200KN |
Weight: | 3-50KG | Warranty: | 1 Year |
Highlight: | Electric Power Construction Hoisting Tackle,High Performance Hoisting Tackle,Hoisting Tackle For Electric Power Construction |
Product Description

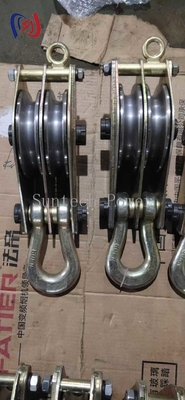

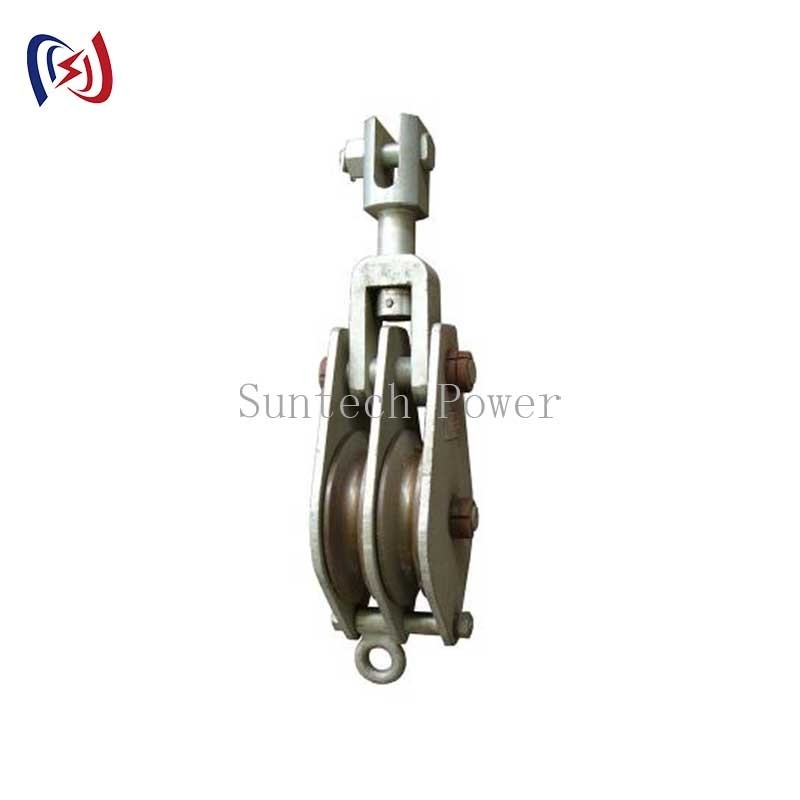

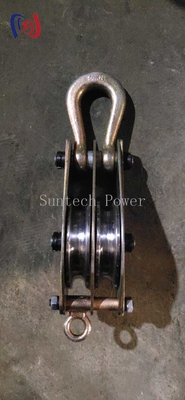

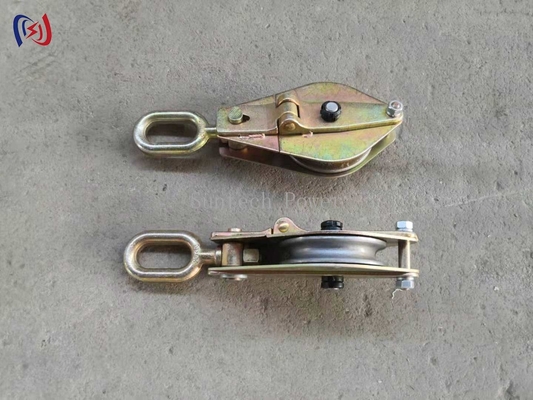

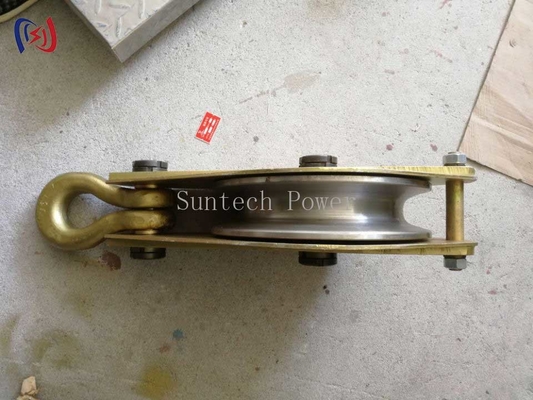

This aluminum alloy and MC nylon open type hoisting tackle with hook possesses light dead weight, which is equipped with the aluminum alloy side panel and the MC nylon sheave. This Single Sheave Pulley Block is the open type. Our product can be used for lifting heavy objects and other operations in the line construction.
Uses: Apply to assemble and erect thr tower,line construction hoist devices and other hoist operation.
Explain:Hanger includes hook type,plate type and ring type.This is need indicated when customer place order.
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
Item number | Model | Number of sheaves | Rated load (kN) |
Roller Dia×width (mm) |
MAX. Rope Diameter (mm) |
Weight (kg) |
11181 | QH1x1 | 1 | 10 | 100*31 | 8 | 3 |
11182 | QH1x2 | 2 | 80*27 | 6 | 3 | |
11183 | QH1x3 | 3 | 80*27 | 6 | 4 | |
11191 | QH2x1 | 1 | 20 | 120*35 | 10 | 4 |
11192 | QH2x2 | 2 | 100*31 | 8 | 5 | |
11193 | QH2x3 | 3 | 100*31 | 8 | 6 | |
11201 | QH3x1 | 1 | 30 | 150*39 | 11 | 6.5 |
11202 | QH3x2 | 2 | 120*35 | 10 | 5 | |
11203 | QH3x3 | 3 | 100*31 | 8 | 6 | |
11211 | QH5x1 | 1 | 50 | 166*40 | 15.5 | 9 |
11212 | QH5x2 | 2 | 150*39 | 12.5 | 13 | |
11213 | QH5x3 | 3 | 120*35 | 11 | 11 | |
11221 | QH8x1 | 1 | 80 | 205*50 | 13 | 20 |
11222 | QH8x2 | 2 | 166*40 | 11 | 19 | |
11223 | QH8x3 | 3 | 150*39 | 10 | 18 | |
11231 | QH10x1 | 1 | 100 | 246*60 | 19 | 22 |
11232 | QH10x2 | 2 | 166*40 | 13 | 21 | |
11233 | QH10x3 | 3 | 150*39 | 11 | 20 | |
11241 | QH15-1 | 1 | 150 | 280*64 | 22 | 40 |
11242 | QH15-2 | 2 | 205*50 | 18 | 33 | |
11243 | QH15-3 | 3 | 166*40 | 13 | 26 | |
11244 | QH15-4 | 4 | 150*39 | 11 | 28 | |
11245 | QH20-1 | 1 | 200 | 305*68 | 23 | 56 |
11248 | QH20-4 | 4 | 205*50 | 18 | 50 |
