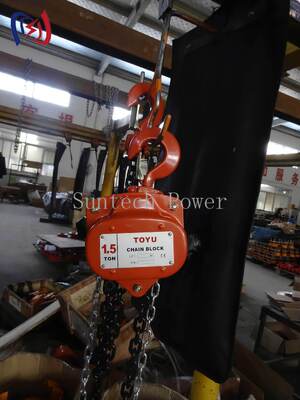

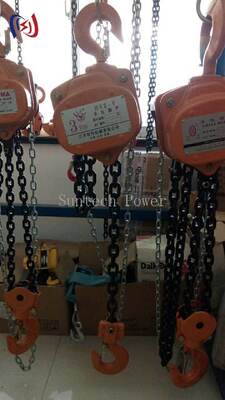

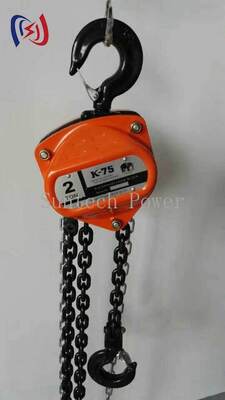

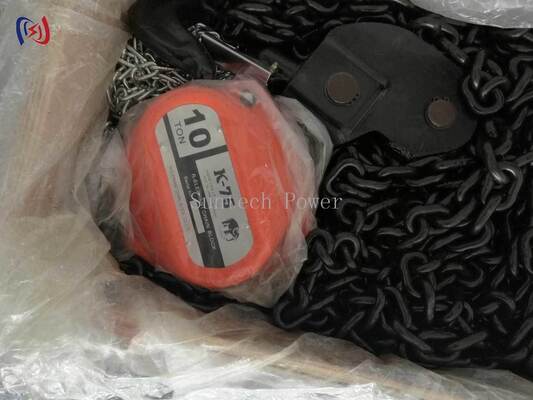

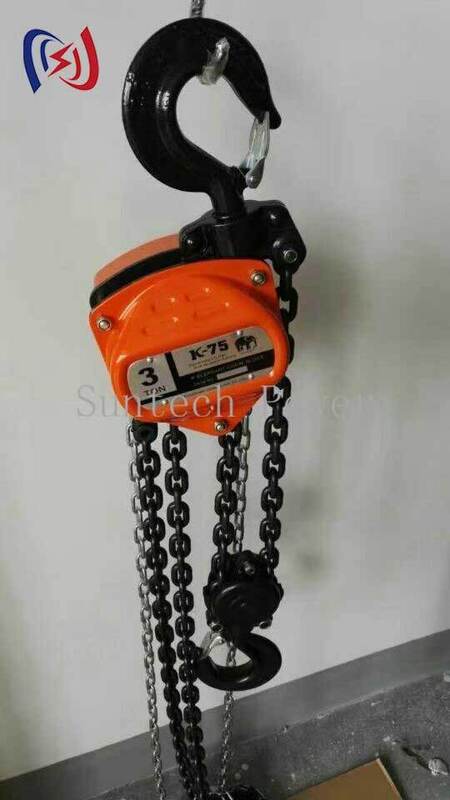

Alloy Steel Manual Chain Hoist with 5-200KN Rated Load for Transmission Line Construction Projects
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Manual |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 30000 PCS/month |
|
Detail Information |
|||
| Name: | Manual Chain Hoist | Rated Load: | 5-200KN |
|---|---|---|---|
| Standard: | 3M | Row: | 1-8 |
| Weight: | 10-193KG | Warranty: | 1 Year |
| Highlight: | Alloy Steel Manual Chain Hoist,5-200KN Rated Load Chain Hoist,Transmission Line Construction Hoisting Tackle |
||
Product Description
Alloy Steel Manual Chain Hoist for Transmission Line Construction
The Alloy Steel Manual Chain Hoist is a fundamental, indispensable tool designed for reliable performance in transmission line construction projects and electrical power industry applications. This purely mechanical device converts human effort into significant lifting power through a robust internal gear system, providing safe and reliable mechanical advantage for precise load control.
Technical Specifications
| Item No. | 14282 | 14292 | 14302 | 14312 | 14321 | 14331 | 14341 | 14351 |
|---|---|---|---|---|---|---|---|---|
| Rated Load (KN) | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 |
| Minimum Distance Between Hooks (MM) | 280 | 320 | 390 | 410 | 485 | 600 | 820 | 1040 |
| Standard Lifting Height (M) | 3 | |||||||
| Number of Lines of Lifting Chain (Row) | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 |
| Net Weight (KG) | 10 | 12 | 19 | 20 | 27 | 45.5 | 83 | 193 |
Lifting Height Variations
| Item No. by Lifting Height | 4M | 5M | 6M | 8M | 10M | Weight of 1M Chain (KG) |
|---|---|---|---|---|---|---|
| 1428X Series | 14283 | 14284 | 14285 | / | / | 1.7 |
| 1429X Series | 14293 | 14294 | 14295 | / | / | 1.7 |
| 1430X Series | 14303 | 14304 | 14305 | / | / | 2.3 |
| 1431X Series | 14313 | 14314 | 14315 | / | / | 2.3 |
| 1432X Series | 14322 | 14323 | 14324 | 14325 | 14326 | 3.7 |
| 1433X Series | 14332 | 14333 | 14334 | 14335 | 14336 | 5.6 |
| 1434X Series | 14342 | 14343 | 14344 | 14345 | 14346 | 9.7 |
| 1435X Series | 14352 | 14353 | 14354 | 14355 | 14356 | 19.4 |
Key Features and Benefits
- Powerful and Controlled Lifting Force: Internal gear train amplifies human strength for precise movement of multi-ton electrical components with smooth, incremental adjustments.
- Complete Energy Independence: Operates without electricity, compressed air, or hydraulic power - ideal for construction sites, maintenance operations, and remote locations.
- Exceptional Precision in Load Positioning: Provides millimeter-perfect alignment capability with direct tactile feedback and link-by-link control.
- Ideal for Confined Workspaces: Compact and flexible design enables operation in tight spaces where cranes or forklifts cannot access.
- Unmatched Durability and Long Service Life: Features hardened steel gears in oil bath and heat-treated alloy steel load chain for decades of demanding service.
- Versatile Electrical Applications: Suitable for vertical lifting, horizontal pulling, cable tensioning, conductor positioning, and assembly/disassembly operations.
- Enhanced Worksite Safety: Provides engineered load handling with secure mechanical holding, preventing accidental lowering and reducing injury risks.
- Cost-Effective Investment: Modest initial cost with zero energy requirements and long service life delivering rapid return on investment.
- Professional Workmanship Standard: Essential tool for electricians, substation technicians, and plant mechanics committed to safe, high-quality installations.
- Mission-Critical Reliability: Proven robust design ensures predictable performance for critical operations involving high-voltage transformers and essential power infrastructure.
The Manual Chain Hoist represents timeless, practical engineering that reliably converts human effort into controlled mechanical force. Its independence, durability, and versatility make it an irreplaceable asset for moving heavy electrical equipment, solidifying its role as a fundamental necessity for building, maintaining, and repairing modern electrical power systems.
