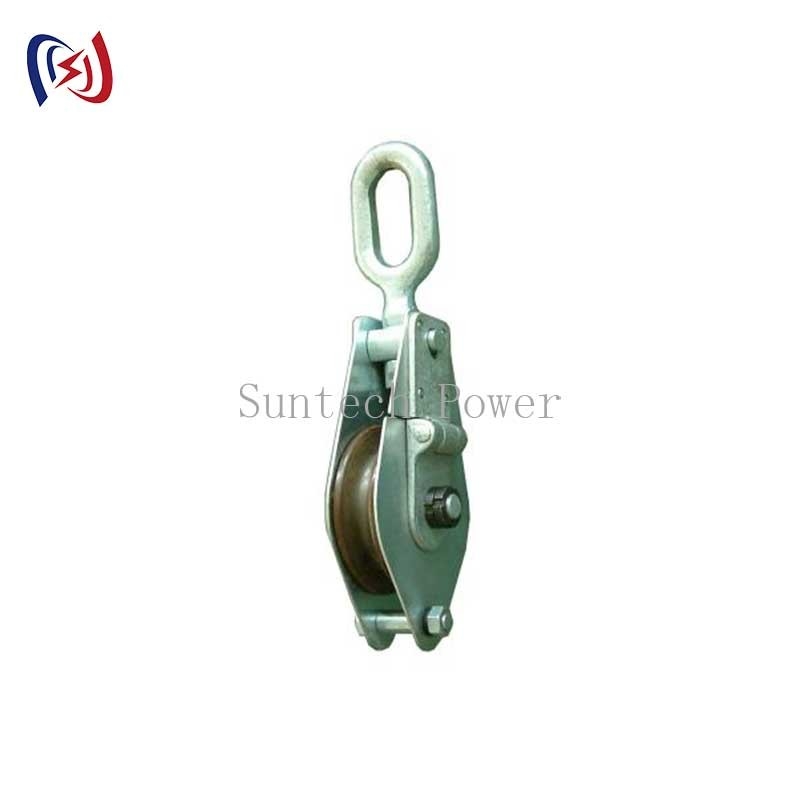

Casting Steel Wire Rope Pulley Wheel Sheave Hook Type Hoisting Lifting Block Tackle
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Model Number: | QH1X1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000PCS/Month |
|
Detail Information |
|||
| Sheave: | 1 | Rated Load: | 10KN-150KN |
|---|---|---|---|
| Roller Dia: | 100mm-280mm | Roller Width: | 31mm-64mm |
| Max.Rope Diameter: | 7.7mm-21.5mm | Weight: | 3KG-41KG |
| Highlight: | Casting wire rope pulley wheel,Steel wire rope pulley wheel,Hook Type Hoisting Lifting Block |
||
Product Description
Casting Steel Wheel Sheave Hook Type Hoisting Lifting Block Cable Pulling Pulley Construction Hoisting Tackle
Appliacation
Apply to assemble and erect the tower,line construction hoist devices and other hoist operation.
Explain
Hanger includes hook type,plate type and ring type.This is need indicated when customer place order.
Characteristics
1.Material: steel

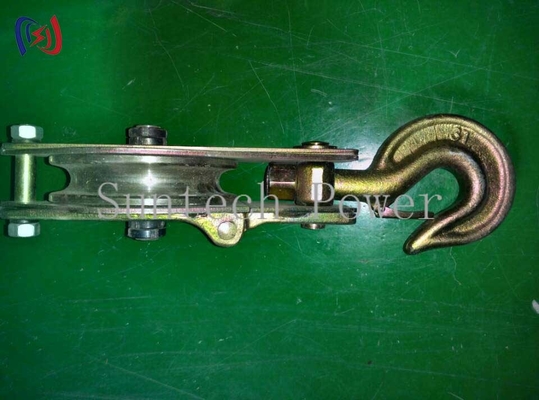

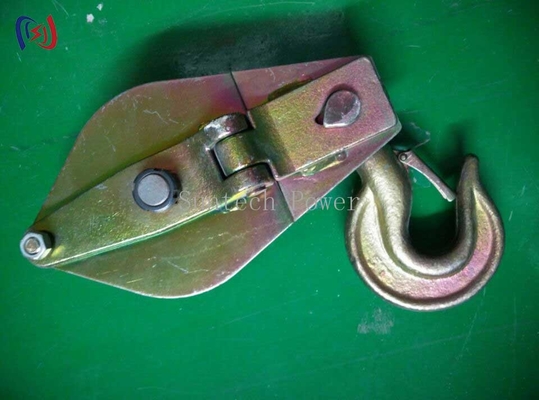

2.The type of single wheel is open hook type ,loop type.

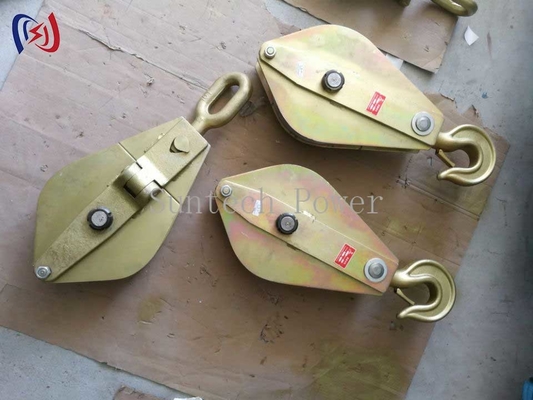

3.The type of double wheel or third wheel is closed loop type.
4.It is made of high quality steel.
5.Light weight
Technical Data
|
Item number |
Model |
Number of sheaves |
Rated load (kN) |
Roller Diaxwidth (MM) |
MAX. Rope Diamete (mm) |
Weight (kg) |
| 11301 | QHL1x1 | 1 | 10 | Φ100×31 |
Φ8 |
2 |
| 11302 | QHL1x2 | 2 | Φ80×27 | Φ6 |
2 |
|
| 11303 | QHL1x3 | 3 | Φ80×27 | Φ6 | 2 | |
| 11311 | QHL2x1 | 1 | 20 | Φ120×35 |
Φ10 |
3 |
| 11312 | QHL2x2 | 2 | Φ100×31 | Φ8 | 3 | |
| 11313 | QHL2x3 | 3 | Φ100×31 | Φ8 | 4 | |
| 11321 | QHL3x1 | 1 | 30 | Φ150×39 |
Φ11 |
4 |
| 11322 | QHL3x2 | 2 | Φ120×35 | Φ10 | 4 | |
| 11323 | QHL3x3 | 3 | Φ100×31 | Φ8 | 5 | |
| 11331 | QHL5x1 | 1 | 50 | Φ166×40 | Φ13 | 6 |
| 11332 | QHL5x2 | 2 | Φ150×39 | Φ11 | 6 | |
| 11333 | QHL5x3 | 3 | Φ120×35 | Φ10 | 7 | |
| 11341 | QHL8x1 | 1 | 80 | Φ205×49 | Φ18 | 9 |
| 11342 | QHL8x2 | 2 | Φ166×40 | Φ13 | 9 | |
| 11343 | QHL8x3 | 3 | Φ150×39 | Φ11 | 10 | |
| 11351 | QHL10x1 | 1 | 100 | Φ246×60 | Φ20 | 12 |
| 11352 | QHL10x2 | 2 | Φ166×40 | Φ13 | 12 | |
| 11353 | QHL10x3 | 3 | Φ150×39 | Φ11 | 13 |
