Crossarm Mounted Conductor Stringing Blocks 20KN Transmission Stringing Blocks
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHG-0.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Skyward Three Purpose Stringing Block | Item No.: | 10291/10292 |
|---|---|---|---|
| Applicable Conductor: | <240mm | Rated Load: | 20KN |
| Weight: | 4.1-4.7KG | Remarks: | Aluminum Sheave Or Nylon Sheave |
| Warranty: | 1 Year | Application: | It Can Be Used To String Wire On Beeline Pole& Angle Pole In Three Direction: Straight, Right And Left |
| Highlight: | Crossarm Mounted Conductor Stringing Blocks,Conductor Stringing Blocks 20KN,20KN transmission stringing blocks |
||
Product Description

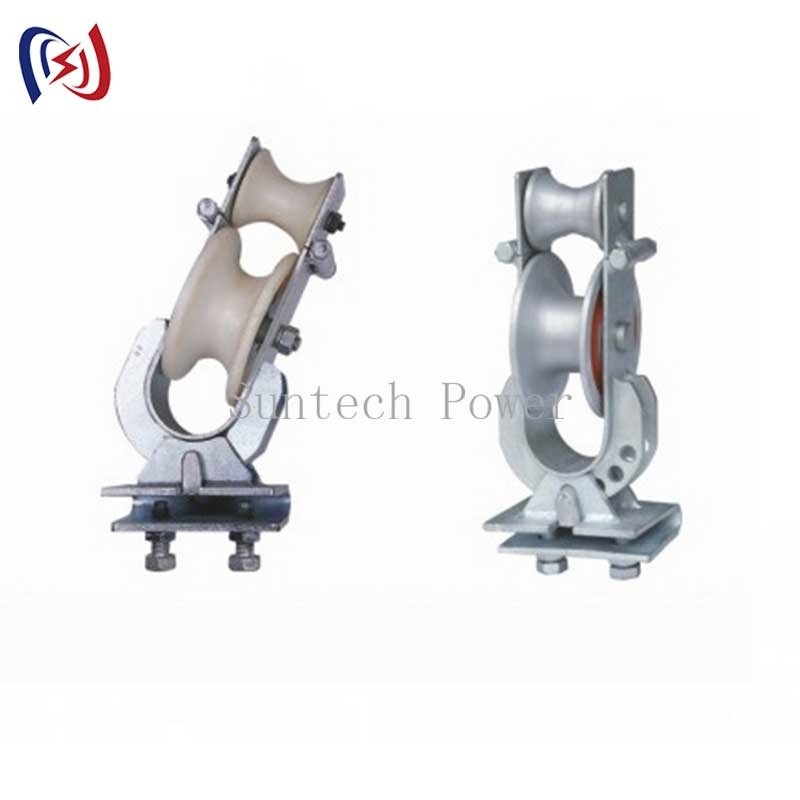

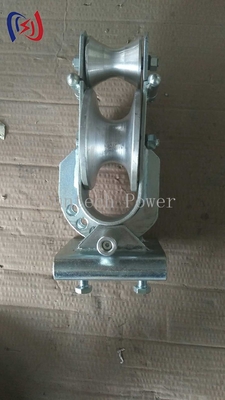

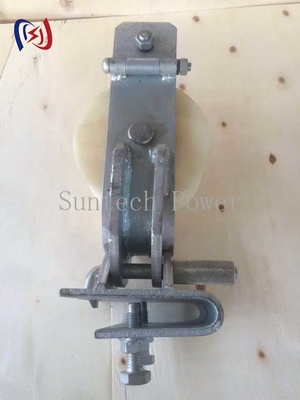

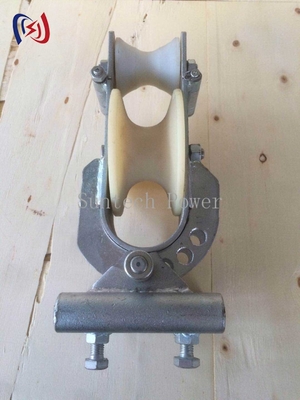

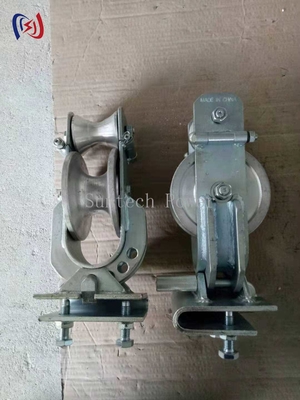

Skyward Three Purpose Stringing BLock Crossarm Mounted 20KN Conductor Stringing Blocks
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission line.
All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel.
Stringing pulley block;pulley block
1) three purpose;
2) sheave:Nylon/ Al;
3) light and wear well.
4) Rated load:2Ton
Three-purpose stringing pulley block
Application: can be used to string wire on beeline pole& angle pole in three direction: straight, right and left.
| Item number | Model | Rated load (kN) | Applicable conductor | Weight (kg) | Remark |
| 10291 | SHCS-2L | 20 | ≤LGJ240 | 4.3 | Aluminium sheave |
| 10292 | SHCS-2N | 20 | 4 | Nylon sheave | |
