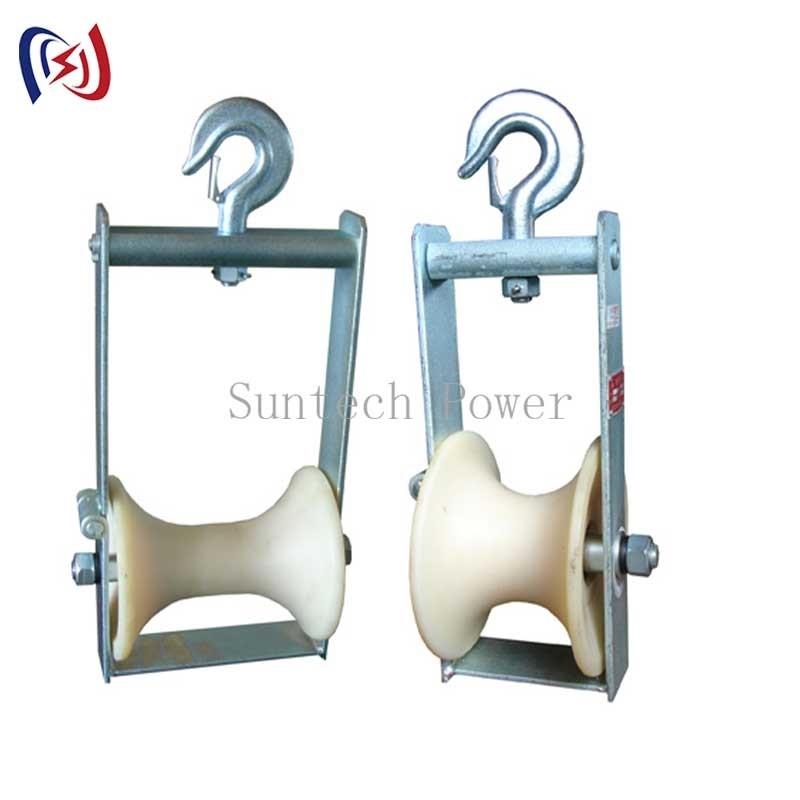

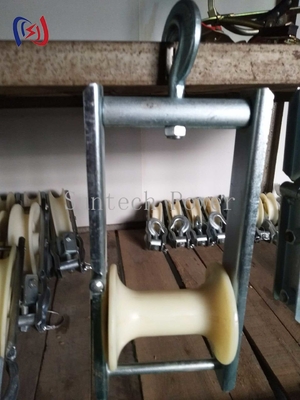

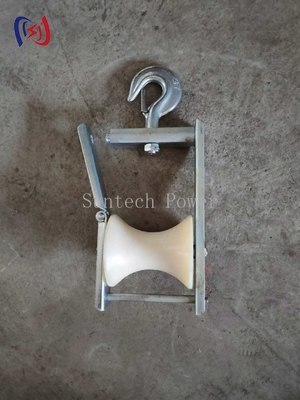

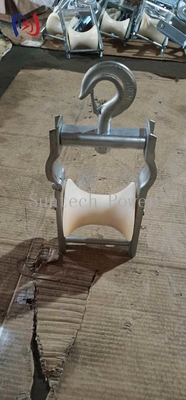

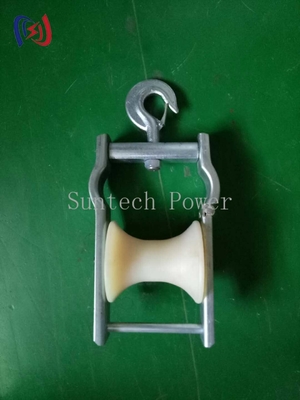

Aerial Cable 120 X 130mm Conductor Stringing Blocks Stringing Roller Block For Overhead Line
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | 10228 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Aerial Cable Stringing Block | Item No.: | 10228-10340 |
|---|---|---|---|
| Sheave Size: | 120x130mm-160x230mm | Max.Applicable Cable: | 80-200 |
| Rated Load: | 5KN | Weight: | 2.7-12.5KG |
| Warranty: | 1 Year | Uses: | 10228 Suitable For ABC Cable(bunch). 21338、21339 And 21340 Suitable For Aerial Electric Power Andcommunication Cable Construction |
| Highlight: | Aerial Cable Conductor Stringing Blocks,120 x 130mm Conductor Stringing Blocks,Stringing Roller Block For Overhead Line |
||
Product Description
Aerial Cable Conductor Pulley Stringing Roller Block For Overhead Line
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
We are a research and development, production and sales: Stringing Block, Hoisting Tackle, Wire Grip, Reel Stand, Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards and so on.Welcome to send us inquiries!
Cable guide pulley widely used for the cable laying contractor, utility and electricity supply industry – this includes straight cable rollers, corner cable rollers, triple cable rollers and specialist cable rollers for pulling underground cables into trenches .
| Item number | Rated load (kN) | Max Applicable Cable | Shcave Size | Weight (kg) |
| 10228 | 5 | φ 100 | φ120x130mm | 2.7 |
| 21338 | 5 | φ 80 | φ160x90mm | 3.5 |
| 21339 | 5 | φ 150 | φ140x160mm | 3.5 |
| 21340 | 5 | φ 200 | φ160x230mm | 12.5 |
