Overhead Line Round Belt Hold Down Wire Rope Pulley Wheel Transmission Stringing Blocks
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHY10L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hold Down Wire Block | Item No.: | 10241-10244C |
|---|---|---|---|
| Applicable Conductor: | LGJ120-LGJ720 | Rated Load: | 10-40KN |
| Weight: | 13-55KG | Remarks: | Aluminum Sheave With Rubber Liner/ Steel Sheave/ MC Nylon Sheave |
| Warranty: | 1 Year | Uses: | Apply To Hold Down The The Upward Conductor Andground Wire In Pulling. |
| Highlight: | Overhead Line transmission stringing blocks,Round transmission stringing blocks,Hold Down wire rope pulley wheel |
||
Product Description
Overhead Line Round Belt Hold Down Wire Cable Pulley Stringing Block
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Apply to hold down the the upward conductor and ground wire in pulling.
Overhead Line Round Belt Hold Down Wire Cable Pulley Stringing Block
Application:

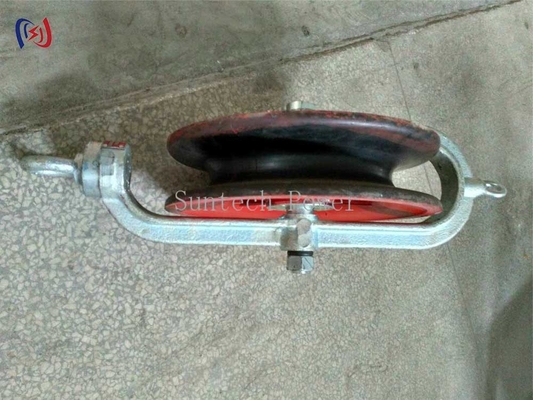

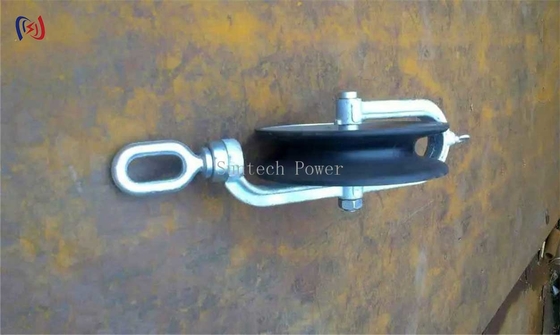

The anti lifting antomatic release pulley, it is used to press down earth wires or conductors in condutor stringing.
The sheave is installed on balll bearings. The frame is made of highly quality galvanzied steel.
The pulley is equipped with spring release system, can be released from the cable automatically.

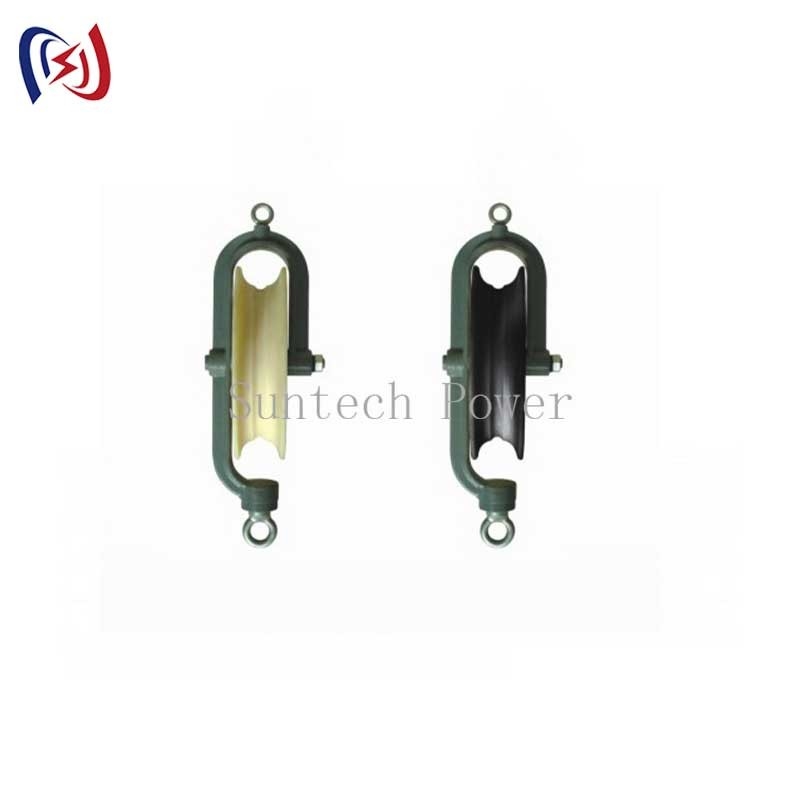

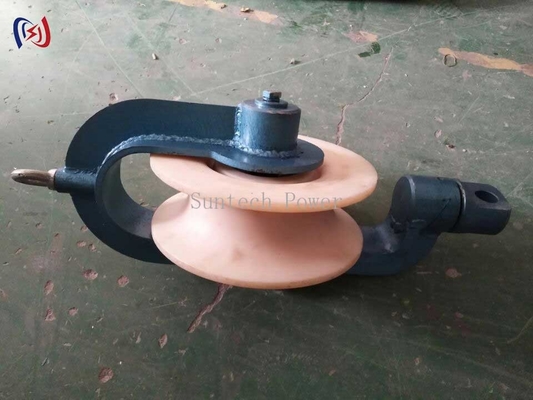

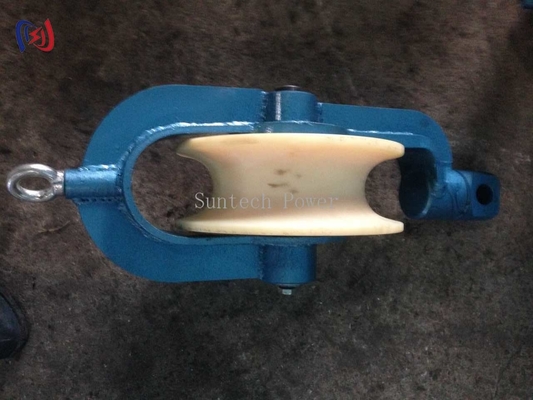

Also the sheave can be made of MC nylon sheave or steel ,or aluminum sheave.
If you have some technical doubts, pls freely ask us. we will recommend you the best suitable item.
Technical Data
| Item number | Model | Applicable Conductor | Rated Load(KN) | Weigh(kg) | Remarks |
| 10241 | SHY10L | ≤ ACSR400 | 10 | 13 | Aluminum Sheave With Rubber Liner |
| 10242 | SHY10G | ≤ 14mm | 10 | 20 | Steel Sheave |
| 10243 | SHY25N | ≤ ACSR720 | 25 | 16 | MC Nylon Sheave |
| 10244A | SHY40G | ≤ 28mm | 40 | 55 | Steel Sheave |
| 10244B | SHY40L | ≤ ACSR720 | 40 | 39 | Aluminum Sheave |
| 10244C | SHY40N | ≤ ACSR720 | 40 | 34 | MC Nylon Sheave |
