Hook Ground 4.5KG Conductor Stringing Blocks Cable Pulling Pulley For Conductor
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHL750D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hook Type Grounding Block | Item No.: | 12111-12112 |
|---|---|---|---|
| Bottom Diameter: | 60/ 75mm | Applicable Conductor: | Conductor 6-38mm/ Steel Wire Rope And Steel Strand 6-28mm |
| Sheave Material: | Aluminum Alloy/ Steel | Weight: | 4.5/5KG |
| Warranty: | 1 Year | Uses: | Apply To Eliminating The Fardadism In Conductor Andgrounding Wire. |
| Highlight: | Hook Ground Conductor Stringing Blocks,4.5KG Conductor Stringing Blocks,Cable Pulling Pulley For Conductor |
||
Product Description
Hook Ground Block Cable Pulling Pulley For Conductor / Steel Wire Rope
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

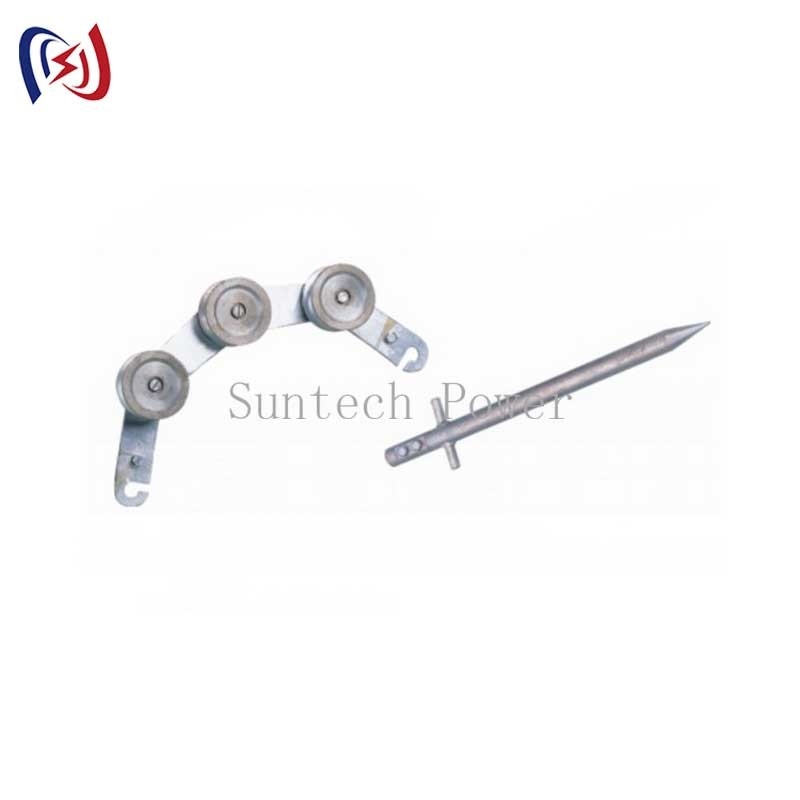

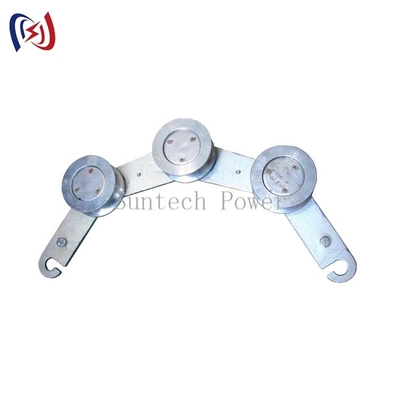

Description:SHL750D Model Hook Grounding Block Appliable For Conductor/Steel Wire Rope

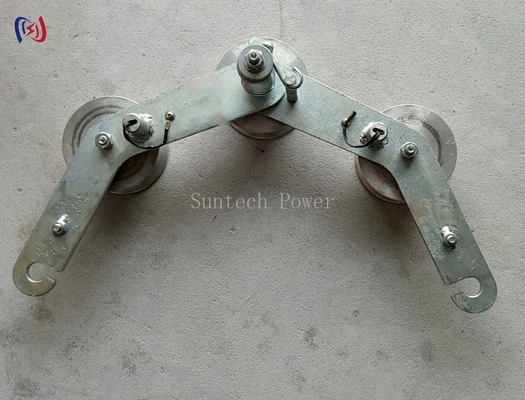

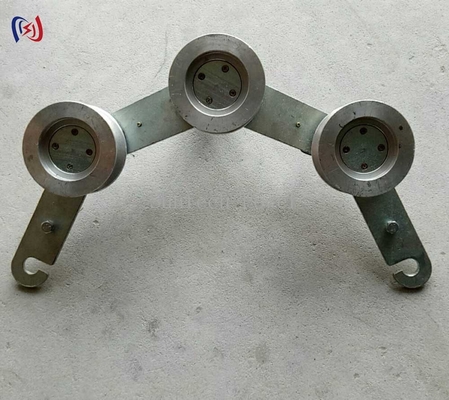

This hook grounding block can remove the induced electricity from the conductor or earth wire during the stringing operation. When in use, it can be mounted on the outlet side of tensioner or the inlet side of puller, and then pulled by two stay wires.Our hook grounding block is designed with triple sheave mechanism, which is automatically compacted by the torsion spring. The maximum allowable current reaches 100A, and the transit time is only 0.1 second. The recommended sectional area of the supporting earth wire is 25mm2.
Hook Grounding Blocks Data
SHL75D Model Hook Grounding Block Appliable For Conductor/Steel Wire Rope
| Product No. | Model Type | Pulley Dia(mm) | Applicable Conductor ACSR(mm2) | Weight(kg) | Material of sheave |
| 12111 | SHL750D | Φ75 | Φ6-32 | 4.6 | Aluminum |
| 12112 | SHG60D | Φ60 | Φ6-25 | 5.7 | Steel |
