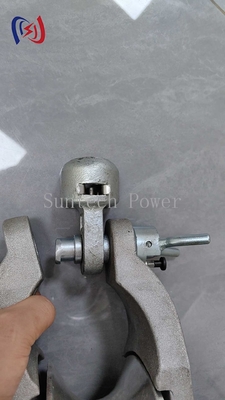

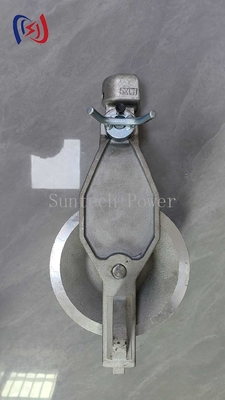

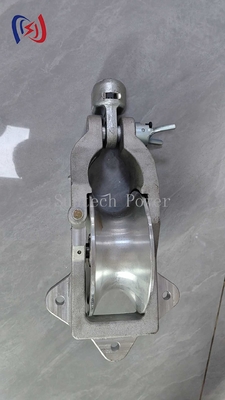

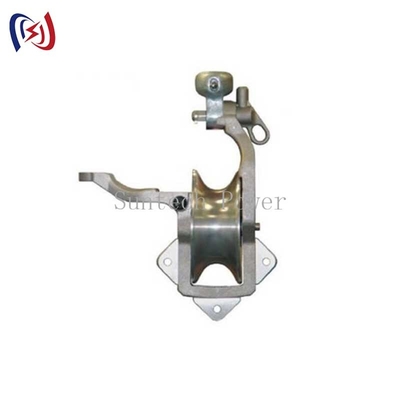

178×76MM Conductor Stringing Blocks Electric Power Construction 10KN Universal Stringing Pulley
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | 178x76 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Universal Stringing Block | Item No.: | 10295 |
|---|---|---|---|
| Rated Load: | 10KN | Weight: | 4.3KG |
| Applicable Crossarm Width Of Caliper: | 99~175mm | Height: | 95~159mm |
| Caliper Weight: | 1.6KG | Warranty: | 1 Year |
| Explain: | It Is A Versatile Block ,it Either Used In The Head Of Insulator String ,or Fixed On The Caliper Of Crossarm . | ||
| Highlight: | 178×76MM Conductor Stringing Blocks,Conductor Stringing Blocks Electric Power Construction,10KN stringing pulley |
||
Product Description
Universal Stringing Pulley Block Essential Overhead Transmission Line Tools for Electric Power Construction
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Application
It is a versatile block ,it either used in the head of insulator string ,or fixed on the caliper of crossarm .
Technical Data
| Item number | Rated load (kN) | Sheave diameter(mm) | Weight(kg) | Applicable crossarm width of caliper (mm) | Height(mm) | Caliper weight(kg) |
| 10295 | 10 | Φ178×76 | 4.3 | 99～175 | 95～159 | 1.6 |
