80KN - 180KN Two Bundled Conductor Headboard Transmission Quick Disconnect
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SZ2-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Head Boards For Two Bundle Conductors | Item No.: | 17220-17226 |
|---|---|---|---|
| Rated Load: | 80-180KN | Applicable Sheave Width: | 75-125mm |
| Weight: | 17-90KG | Feature: | Conductor Are Independent/ Poising Sheave |
| Warranty: | 1 Year | Uses: | Apply To Tension Stringing Or Mechanical Traction Stringing Construction. |
| Explain: | Special Size Can Be Customized. | ||
| Highlight: | 80KN Bundled Conductor Headboard,180KN Bundled Conductor Headboard,180KN transmission quick disconnect |
||
Product Description

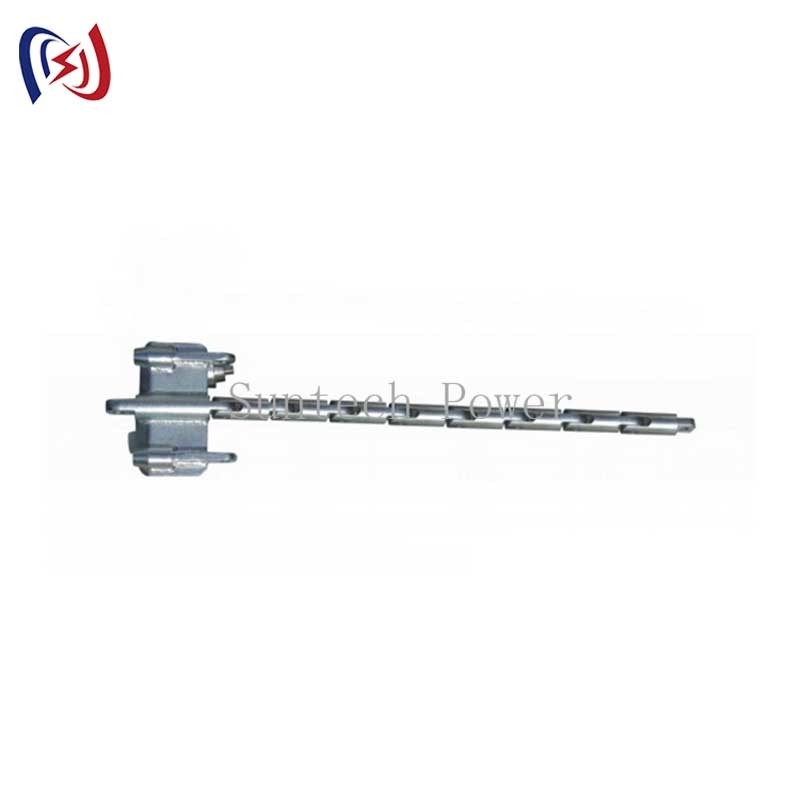

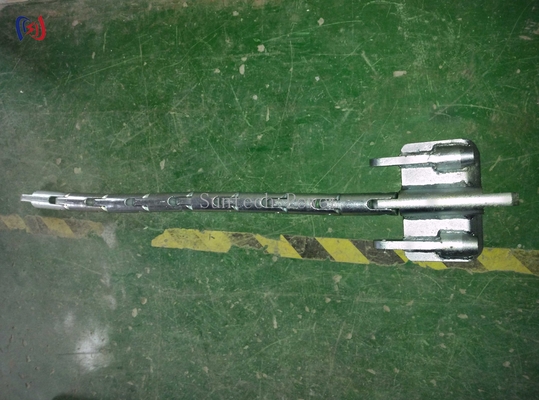

Head Boards For Two Bundle Conductors Transmission Line Stringing Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc

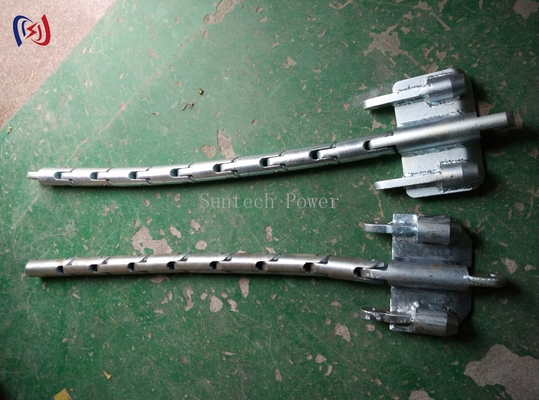

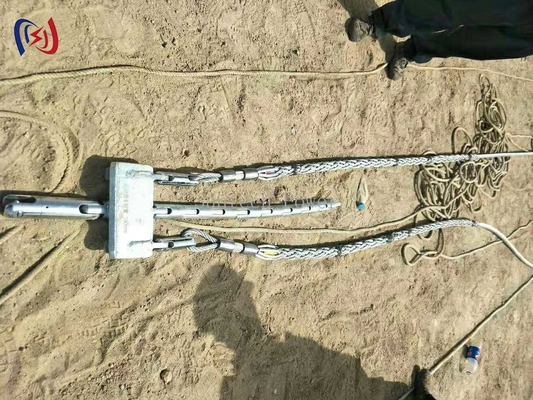

This running boards, has two types, independent, poising sheave, applicable tackle width of 75-125mm wheel, it can be customized according to the specificaiton of other stringing blocks.while the rated load max reached to 18T, this model is only for two bundle conductor in the operation site. But our plant, also made the head boards, to the three, and four conductos, they all have the features, to avoid torsion strain accumulation during line stringing.
| Item number | Model |
Rated Load (KN) |
Applicable Sheave Width (MM) |
Weight (KG) |
Feature |
| 17220 | SZ2-8 | 80 | 75 | 17 |
Conductor are independent |
| 17221 | SZ2-8A | 100 | 19 | ||
| 17222 | SZ2-8B | 110 | 19.5 | ||
| 17223 | SZ2A-8 | 80 | 100 | 90 | Poising sheave |
| 17223T | SZ2A-8T | 110 | 100 | Poising sheave | |
| 17224 | SZ2B-13 | 130 | 110 | 55 |
Conductor are independent |
| 17225 | SZ2C-13 | 130 | 110 | 50 |
Conductor are independent |
| 17226 | SZ2B-18 | 180 | 125 | 90 |
Conductor are independent |
