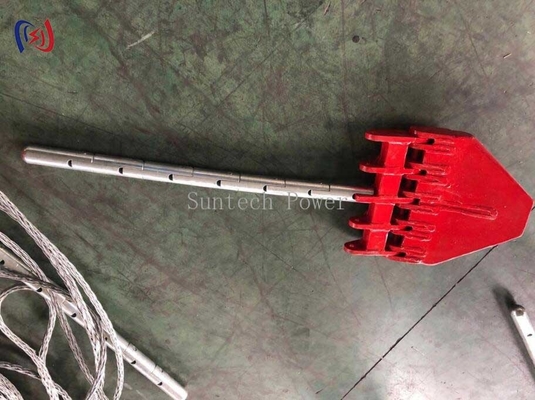

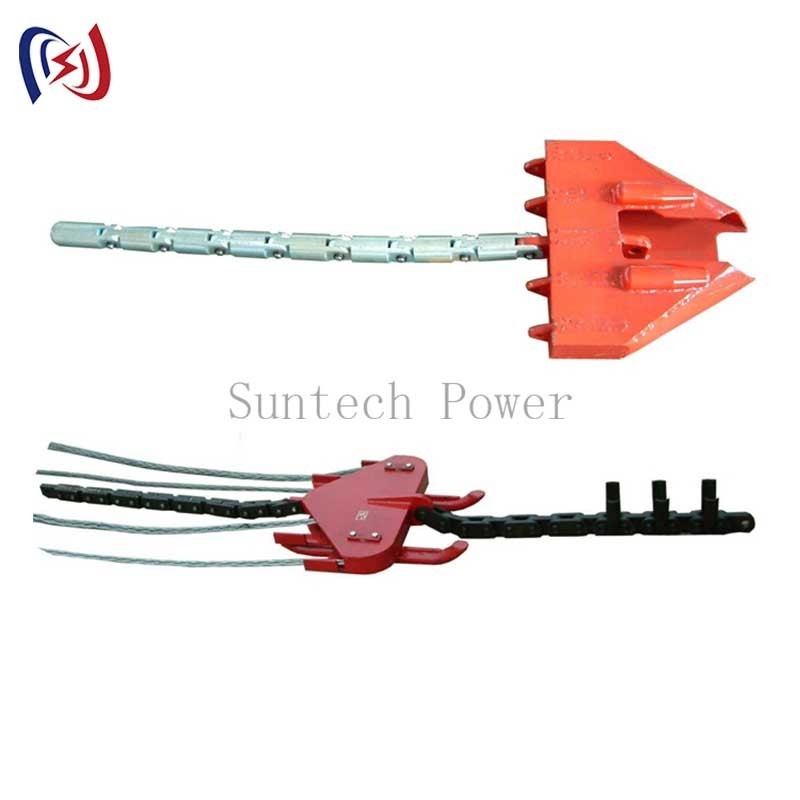

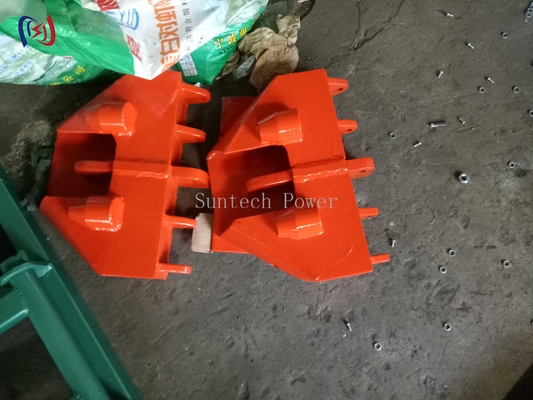

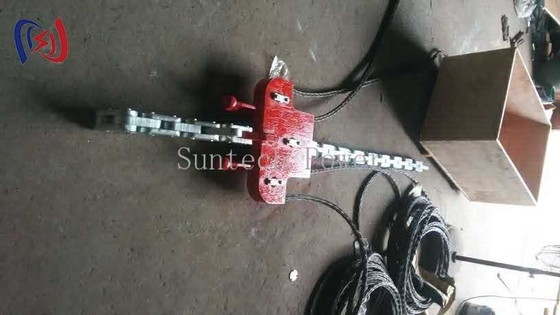

Balance Four Bundle Conductors Running Boards Transmission Line Stringing Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SZ4A-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Head Boards For Four Bundle Conductors | Item No.: | 17231-17239 |
|---|---|---|---|
| Rated Load: | 130-320KN | Applicable Sheave WIdth: | 100-125mm |
| Weight: | 139-150KG | Feature: | Poising Sheave/ Conductor Are Independent |
| Warranty: | 1 Year | Explain: | Special Size Can Be Customized |
| Highlight: | Balance Conductors Running Boards,Four Bundle Conductors Running Boards,150KG stringing tools for transmission lines |
||
Product Description
Balance Type Four Bundle Conductors Running Boards Transmission Line Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Technical Parameters
| Item Number | Model | Rated Load (kN) | Weight (kg) | Width of Applicable Sheave (mm) | Features |
| 17231 | SZ4A-13 | 130 | 96 | 100 | Balanced pulley type |
| 17232 | SZ4B-13 | 130 | 65 | 100 | Conductors are independent of each other. |
| 17233 | SZ4B-18 | 180 | 95 | 110 | Conductors are independent of each other. |
| 17234 | SZ4B-25 | 250 | 110 | 110 | Conductors are independent of each other. |
| 17238 | SZ4C-25 | 250 | 88 | 110 | Conductors are independent of each other. |
| 17239 | SZ4B-32 | 320 | 150 | 125 | Conductors are independent of each other. |
