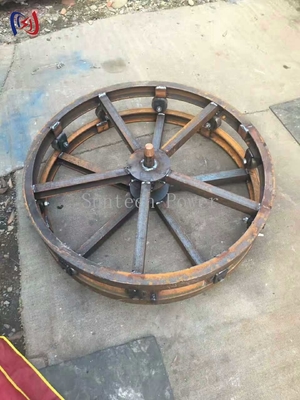

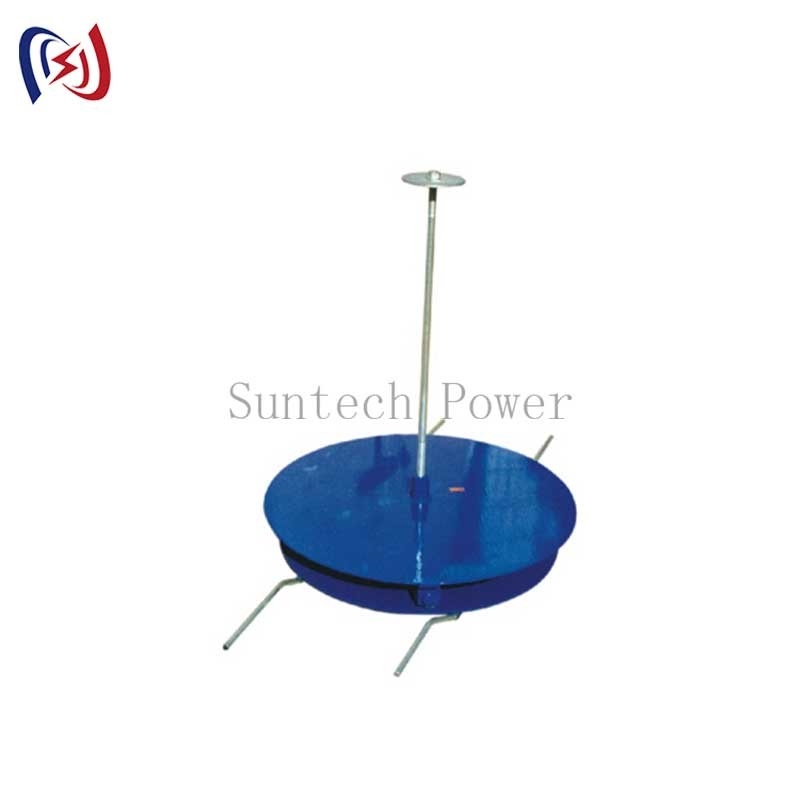

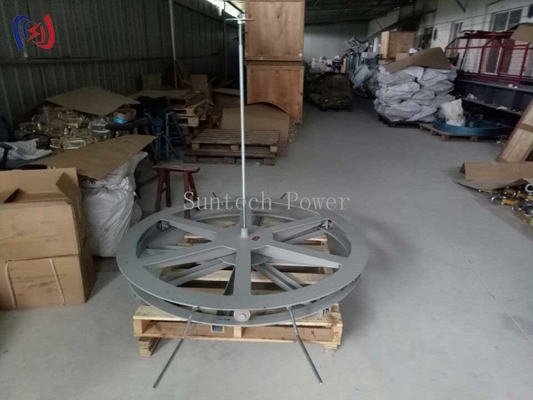

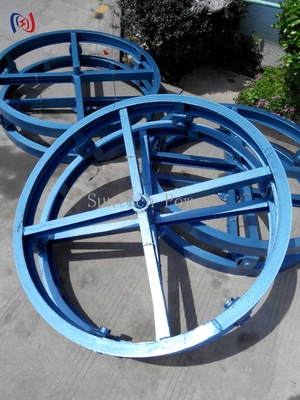

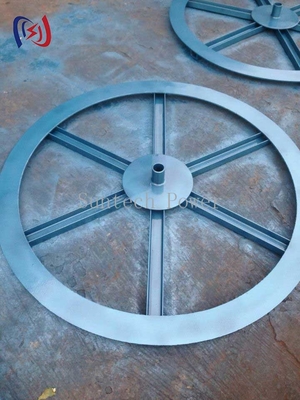

Vertical Type Cable Reel Stand Turntable Device Cable Laying Bracket Stand
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SIW-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 PCS/Month |
|
Detail Information |
|||
| Name: | Vertical Type Cable Reel Stand | Item No.: | 15131-15135 |
|---|---|---|---|
| Diameter: | 500-1500mm | Rated Load: | 10-70KN |
| Weight: | 36-170KG | Warranty: | 1 Year |
| Highlight: | Vertical Type Cable Reel Stand,Cable Reel Stand Turntable,Turntable Cable Laying Bracket Stand |
||
Product Description
Vertical Type Cable Reel Stand Turntable Device Cable Laying Bracket Stand
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Features
When pulling the wire, the wire reel can rotate automatically.
Application:
During the construction of the line, the supporting cable reel is used for stringing construction.
| Item number | Model | Diameter(MM) | Rated Load(KN) | Weight(KG) |
| 15131 | SIW-1 | Φ500 | 10 | 36 |
| 15132 | SIW-3A | Φ800 | 30 | 44 |
| 15133 | SIW-3B | Φ1000 | 30 | 55 |
| 15133A | SIW-5A | Φ1200 | 50 | 100 |
| 15135 | SIW-7A | Φ1500 | 70 | 170 |
