170KN 340mm Bus Bar Bender Busbar Bending Machine Crimping Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | CB-150D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Hydraulic Bus-bar Bender | Item No.: | 06242/ 06247 |
|---|---|---|---|
| Bending Force: | 170KN | Max Thickness Of Sheet: | CU/AL Plate 10-12mm |
| Width Of Sheet: | CU/AL Plate 150mm-200mm | Height: | 250-340mm |
| Weight: | 20.5-30.4KG | Package: | Wooden Case |
| Warranty: | 1 Year | ||
| Highlight: | 170KN Bus bar Bender,340mmBus bar Bender,busbar bending machine |
||
Product Description

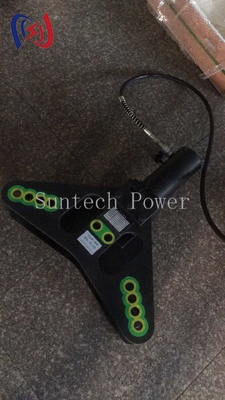

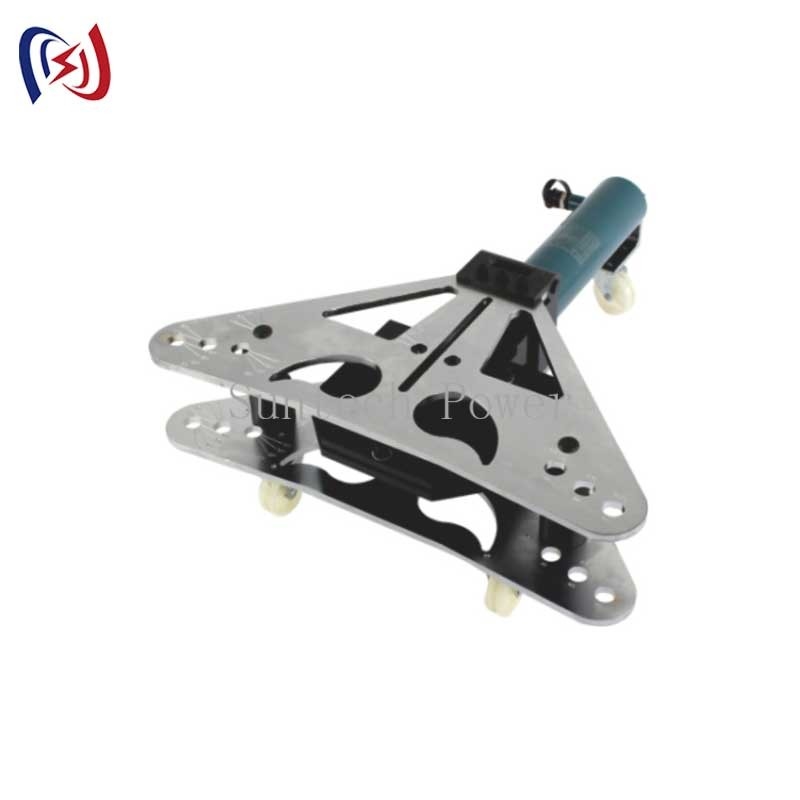

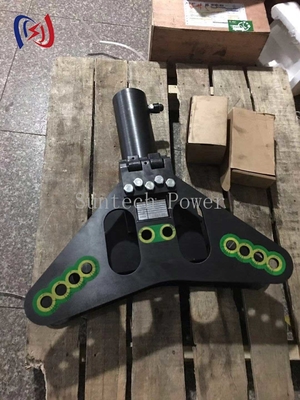

Hydraulic Bus-bar Bender Hydraulic Crimping Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Application

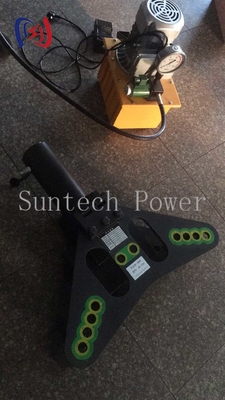

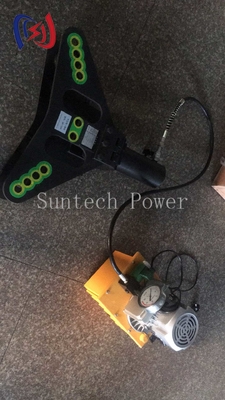

For vertical bending. Working with a manual hydraulic pump or an electric hydraulic pump.
Specification
|
Item number |
06245 |
06246 |
06245A | 06246A |
| Model | SCB-100D | BCB-100A | SCB-120D | BCB-120A |
|
Output(Mpa) |
44 | 59 | ||
|
Stroke(MM) |
250 | 320 | ||
|
Bending ability(MM) |
40-100(Width) 4-10(Thickness) |
440-120(Width) 4-12(Thickness) |
||
|
Bending angle(MM) |
90°<A<180° | 90°<A<180° | ||
|
Radius of curvature |
25 times the width |
25 times the width |
||
|
Weight(KG) |
50KG | 100KG | ||
|
Size(MM) |
760x380x580mm | 960x450x540mm | ||
