300KN - 1000KN Hydraulic Hole Punching Machine Metal Sheet Hydraulic Steel Hole Punch
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | CH-60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Hydraulic Punching Device | Item No.: | 06243-06249 |
|---|---|---|---|
| Punching Force: | 300-1000KN | Punching Thickness: | Iron6-18/ Copper10-20mm |
| Throat Diameter: | 95-135mm | High: | 340-400mm |
| Weight: | 19-150KG | Specification Of Matching Mold: | 10.5-36mm |
| Warranty: | 1 Year | ||
| Highlight: | 300KN hydraulic punching machine,1000KN hydraulic hole punching machine,300KN Sheet hydraulic steel hole punch |
||
Product Description

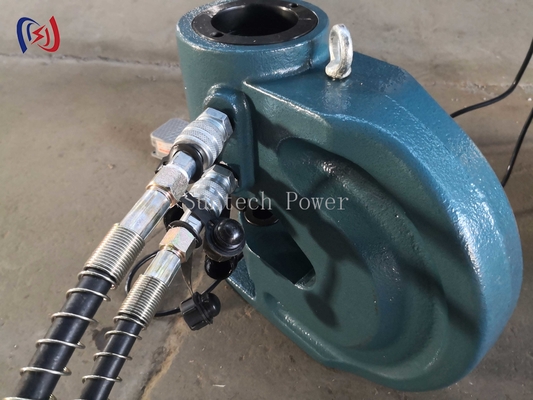

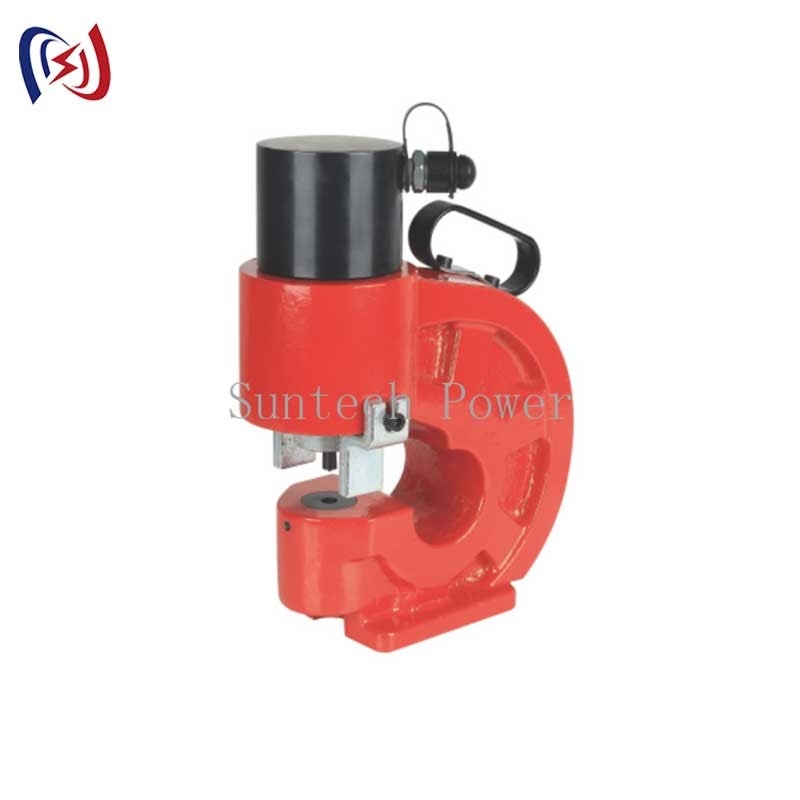

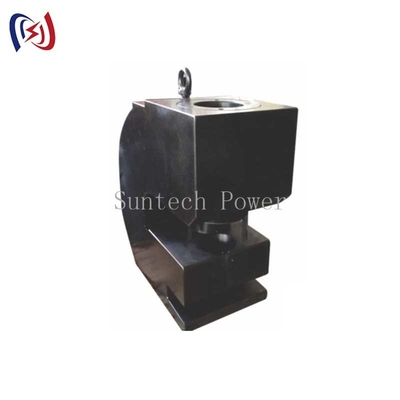

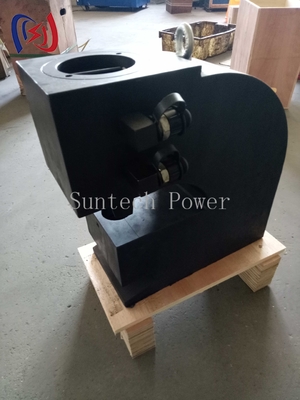

Hydraulic Punching Device Metal Sheet Hydraulic Hole Punching Tools
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Uses:For copper and aluminum and low carbon steel punching,it needs to be equipped with a hydraulic pump.
Explain:The mold size can be customized according to the requirements of the user.
| Item No. | Model | Punching force(KN) |
Punching thickness(MM) |
throat diameter(MM) | Hight(MM) | Weight(KG) | specification of matching mold(MM) | hydraulic pump |
| 06243 | CH-60 | 300 |
iron6 copper10 |
95 | 350 | 19 |
Φ10.5,Φ13.8 Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06244 | CH-70 | 350 |
iron10 copper12 |
110 | 360 | 35 |
Φ10.5,Φ13.8 Φ17,Φ20.5 |
CP-700/ZCB6-5-A3 |
| 06248 | CH-80 | 500 |
iron16 copper20 |
115 | 340 | 45 |
Φ16,Φ18 Φ22,Φ25 |
ZCB6-5-AB |
| 06249 | CH-100 | 1000 |
iron18 copper20 |
135 | 400 | 150 |
Φ25,Φ28 Φ32,Φ36 |
ZCB6-5-AB |
