Battery Powered 18V 4Ah Hydraulic Cable Cutter Hydraulic Crimping Tool
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | EC-40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Battery Powered Hydraulic Cable Cutter | Item No.: | 21448-21448C |
|---|---|---|---|
| Crimping Force: | 60/ 120KN | Stroke: | 40-105mm |
| Voltage: | 18V | Capacity: | 4Ah |
| Charging Time: | 2hours | Weight: | 15-20KG |
| Package: | Plastic Box | Warranty: | 1 Year |
| Highlight: | Battery Powered Hydraulic Cable Cutter,18V Hydraulic Cable Cutter,4Ah Hydraulic Crimping Tools |
||
Product Description

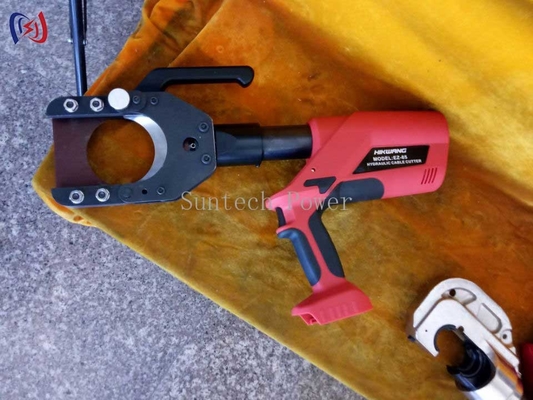

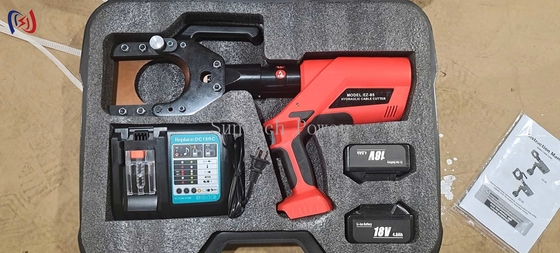

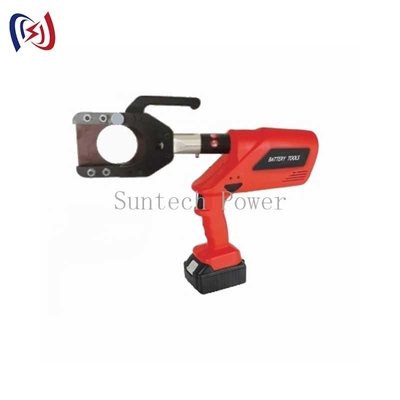

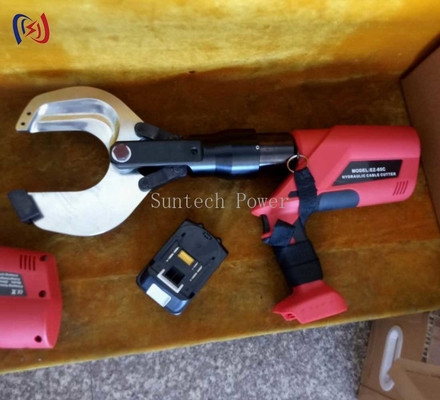

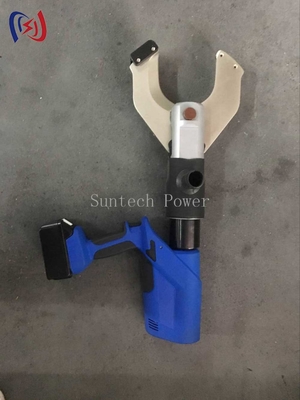

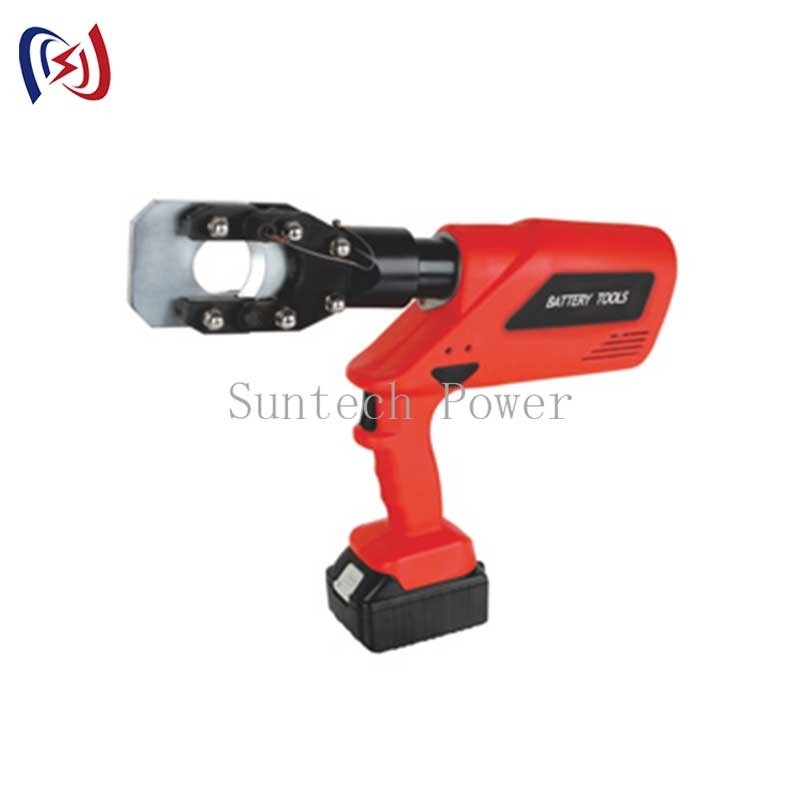

Battery Powered Hydraulic Cable Cutter Hydraulic Crimping Tool
Suntech Power is a manufacturer of research,development, production and sales: Stringing Block, Hoisting Tackle,
Wire Grip, Reel Stand,Inspection Trolleys, Tightening Tools, Connector, Shackle, Lifter, Head Boards For Conductors,
Mesh Sock Joints, Powered-winch, Press-machine and other construction tools and equipment company for electric
power construction. At the same time, agents of various imported construction tools and power equipment.
Hydraulic Cable Cutter Feature
One key control
Cutting head rotates 350°
Two stage hydraulics
Shorter charging cycles
Automatic retraction when crimp is completed
Battery power display
Hydraulic Cable Cutter Technical Data
| Item number | 21448 | 21448A | 21448B |
| Model | EC-40 | EC-85 | EC105 |
|
Crimping force
|
60KN | 60KN | 120KN |
|
Cutting range |
armored CU/AL cable Φ40mm max |
armored CU/AL cable Φ85mm max |
armored CU/AL cable Φ105mm max |
| Stroke | 40mm | 85mm | 105mm |
|
voltage |
18V | 18V | 18V |
| Capacity | 3.0Ah | 3.0Ah | 3.0Ah |
|
Charging time |
2hours | 2hours | 2hours |
| Weight |
approx.N.W5.5KG G.W11.5KG |
approx.N.W8.5KG G.W14.5KG |
approx.N.W13.0KG G.W20KG |
| Package |
lastic box 570*500*130mm |
plastic box 570*500*130mm |
plastic box 570*500*130mm |
