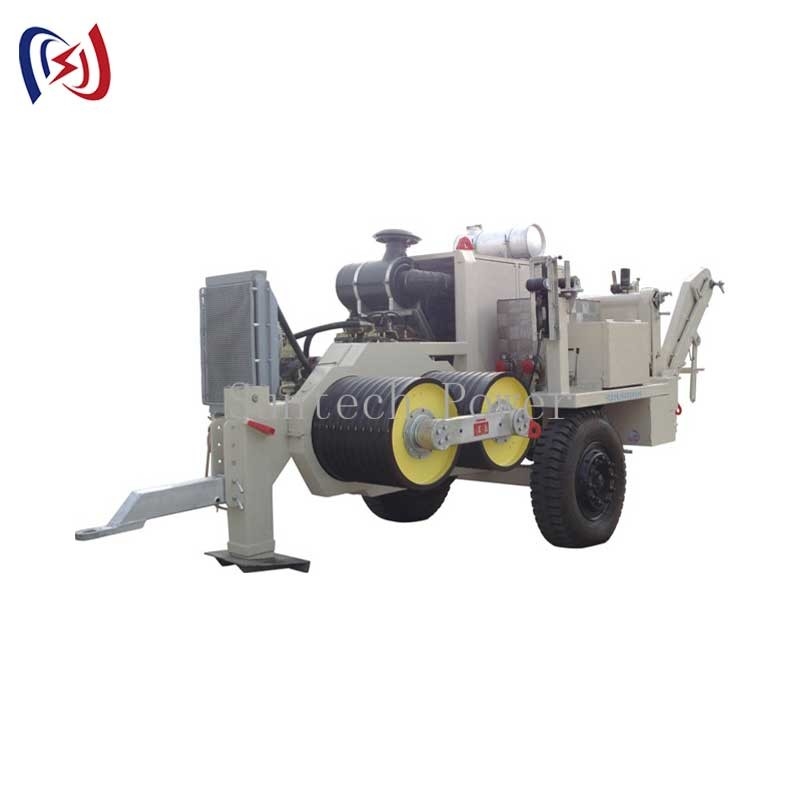

25-350KN Overhead Line Stringing Equipment Hydraulic Cable Puller
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | QY-30Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Hydraulic Traction Equipment | Item No.: | 07001-07075 |
|---|---|---|---|
| Maximum Pull Force: | 5KM/H | Continuous Pull Force: | 25-350KN |
| Bottom Of Groovr Diamere: | 300-960mm | Number Of Groovr: | 7/9/10/11 |
| Maxumum Suitable Steel Rope Diameter: | 13-45mm | Maximum Through Connectors Diameter: | 40-80mm |
| Weight: | 1500-14800KG | Warranty: | 1 Year |
| Highlight: | 25KN Overhead Line Stringing Equipment,350KN Overhead Line Stringing Equipment,25KN Hydraulic Cable Puller |
||
Product Description

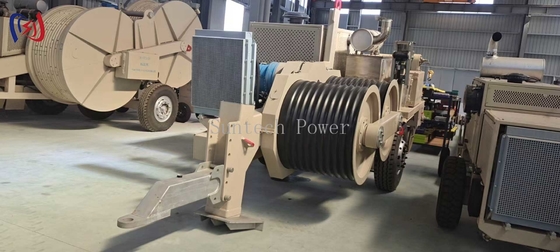

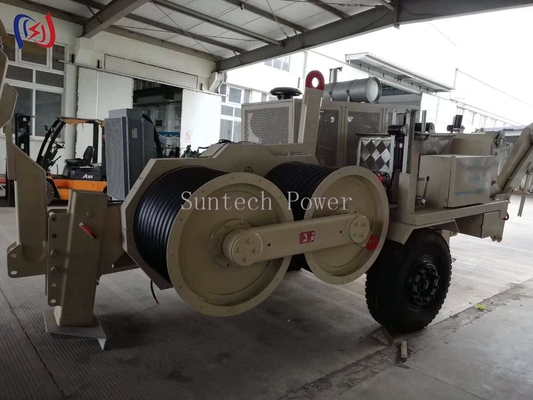

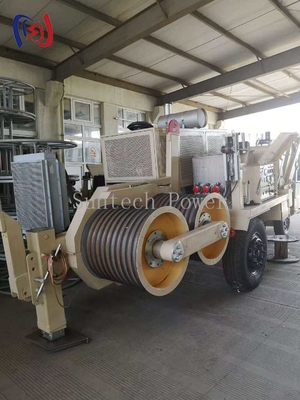

Hydraulic Traction Equipment Hydraulic Cable Puller Transmission Line Stringing Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Feature:Traction force,traction speed stepless adjustable,intuitive display;
Maximum traction can be present,overload automatic protection;
Automatic breaking without pressure,to ensure the operation safety when the engine suddenly flameout or other reasons causing the system to lose pressure.
With wire rope automatic winding device,automatic rope laying,loading and unloading convenience.
| Item No. | 07001 | 07011 | 07031 | 07041 | 07051 | |
| Model | QY-30Y | QY-40Y | QY-60Y | QY-90Y | QY-180Y | |
| Maximum pull force(KN) | 30 | 40 | 60 | 90 | 180 | |
| Continuous pull force(KN) | 25 | 35 | 50 | 80 | 150 | |
| Maximum pull force(KM/H) | 5 | 5 | 5 | 5 | 5 | |
| Bottom of groove diameter(MM) | Φ300 | Φ400 | Φ460 | Φ520 | Φ630 | |
| Number of groove(MM) | 7 | 7 | 7 | 7 | 9 | |
| Maximum suitable stell rope diameter(MM) | Φ13 | Φ16 | Φ18 | Φ20 | Φ24 | |
| Maximum through connectors diameter(MM) | Φ40 | Φ50 | Φ60 | Φ60 | Φ63 | |
| Engine power/speed(KW/RPM) | 31/2200 | 60/2000 | 77/2800 | 123/2500 | 209/2100 | |
| Dimensions(M) | 3.2*1.6*2 | 3.5*2*2.3 | 3.8*2.1*2.3 | 3.5*2.1*2.5 | 5.5*2.2*2.6 | |
| Weight(KG) | 1500 | 2500 | 3000 | 4300 | 7500 | |
| matching wire rope tray | Model | GSP950 | GSP1400 | GSP1400 | GSP1400 | GSP1600 |
| Item No. | 07125A | 07125C | 07125C | 07125C | 07125D | |
