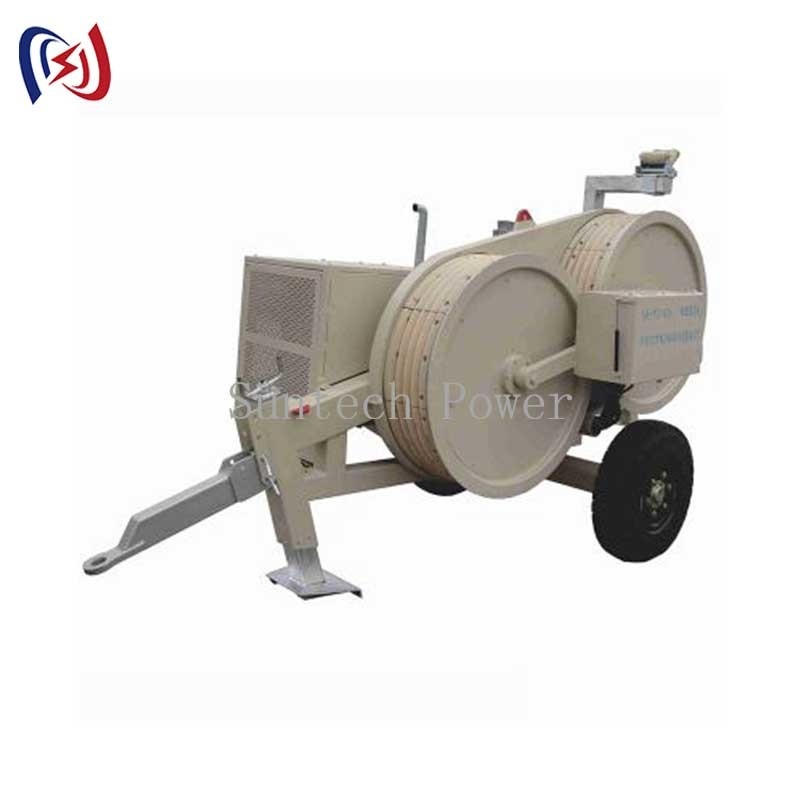

7.5 - 40KN Hydraulic Tension Equipment Constant Tension Conductor Stringing
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Tension Equipment | Item No.: | 07212-07201 |
|---|---|---|---|
| Maximum Tension: | 7.5-40KN | Bottom Of Groovr Diamere: | 1100-1850mm |
| Weight: | 450-10500KG | Warranty: | 1 Year |
| Highlight: | 7.5KN Hydraulic Tension Equipment,40KN Hydraulic Tension Equipment,Constant Tension Conductor Stringing |
||
Product Description
Hydraulic Tension Equipment Constant Tension Conductor Stringing
| Item No. | 07181 | 07192 | 07197 |
| Model | SA-YZ2*35 | SA-YZ2*40B | SA-YZ2*55 |
| Maximum Tension(KN) | 2*35/1*70 | 2*40/1*80 | 2*55/1*110 |
| Continuous Tension(KN) | 2*30/1*60 | 2*35/1*70 | 2*50/1*100 |
| Maximum speed(KM/H) | 5 | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1200 | Φ1500 | Φ1600 |
| Number of groove(MM) | 2*5 | 2*5 | 2*5 |
| Number of groove(KN) | 2*30/1*60 | 2*40/1*80 | 2*50/1*100 |
| Maximum speed back(KM/H) | 2*2.1 | 2*1.5 | 2*2.1 |
| Maximum suitable conductor diameter(MM) | Φ32 | Φ40 | Φ42.5 |
| Engine power/speed(KW/RPM) | 51/2500 | 51/2500 | 54/2500 |
| Dimensions(M) | 4.4*2.1*2.6 | 4.5*2.2*2.8 | 5.0*2.3*2.7 |
| Weight(KG) | 4000 | 4850 | 7500 |
