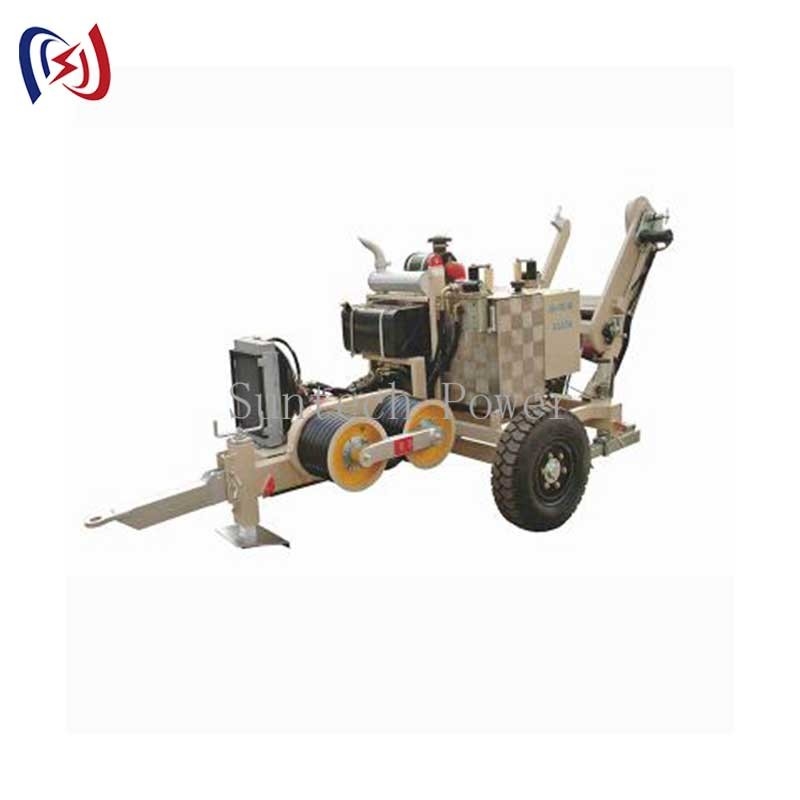

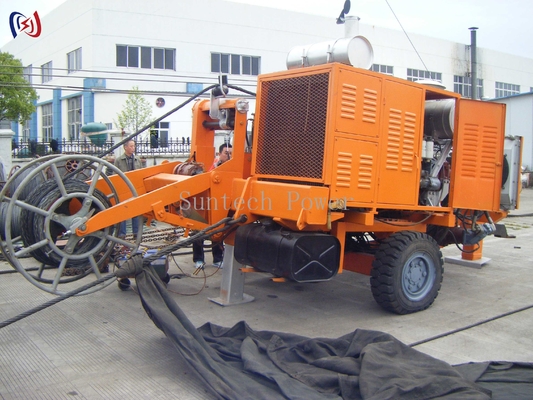

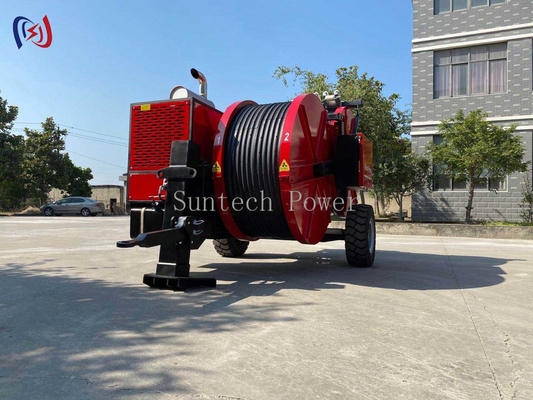

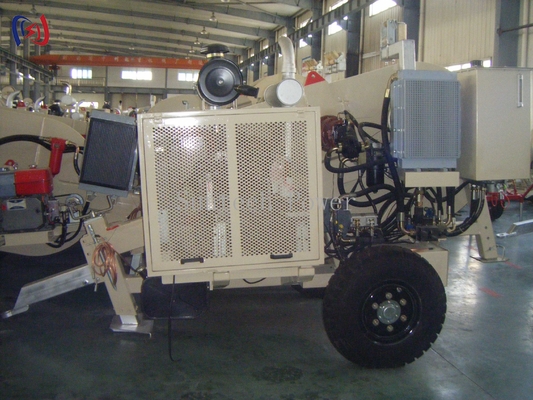

Hydraulic Traction Overhead Line Stringing Equipment Force Speed Stepless Adjustable
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | QY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Hydraulic Traction Equipment | Item No.: | 07001-07051 |
|---|---|---|---|
| Weight: | 1500-7500G | Maximum Suitable Steel Rope Diameter: | 13-24mm |
| Maximum Through Connectors Diameter: | 40-63mm | Warranty: | 1 Year |
| Highlight: | 1500G Overhead Line Stringing Equipment,7500G Overhead Line Stringing Equipment,1500G Hydraulic Traction Equipment |
||
Product Description
Hydraulic Traction Equipment Traction Force Traction Speed Stepless Adjustable
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
| Item No. | 07001 | 07011 | 07031 | 07041 | 07051 | |
| Model | QY-30Y | QY-40Y | QY-60Y | QY-90Y | QY-180Y | |
| Maximum pull force(KN) | 30 | 40 | 60 | 90 | 180 | |
| Continuous pull force(KN) | 25 | 35 | 50 | 80 | 150 | |
| Maximum pull force(KM/H) | 5 | 5 | 5 | 5 | 5 | |
| Bottom of groove diameter(MM) | Φ300 | Φ400 | Φ460 | Φ520 | Φ630 | |
| Number of groove(MM) | 7 | 7 | 7 | 7 | 9 | |
| Maximum suitable stell rope diameter(MM) | Φ13 | Φ16 | Φ18 | Φ20 | Φ24 | |
| Maximum through connectors diameter(MM) | Φ40 | Φ50 | Φ60 | Φ60 | Φ63 | |
| Engine power/speed(KW/RPM) | 31/2200 | 60/2000 | 77/2800 | 123/2500 | 209/2100 | |
| Dimensions(M) | 3.2*1.6*2 | 3.5*2*2.3 | 3.8*2.1*2.3 | 3.5*2.1*2.5 | 5.5*2.2*2.6 | |
| Weight(KG) | 1500 | 2500 | 3000 | 4300 | 7500 | |
| matching wire rope tray | Model | GSP950 | GSP1400 | GSP1400 | GSP1400 | GSP1600 |
| Item No. | 07125A | 07125C | 07125C | 07125C | 07125D | |
