1 X 180KN Hydraulic Traction Equipment Overhead Line Stringing Equipment
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SA-YZM7.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 SET/Month |
|
Detail Information |
|||
| Name: | Hydraulic Tension Equipment | Item No.: | 07212-07201 |
|---|---|---|---|
| Maximum Tension: | 7.5-2x90/1x180KN | Continuous Tension: | 7.5-2x80/1x160KN |
| Bottom Of Groovr Diamere: | 1100-1850mm | Number Of Groovr: | 20-2x90/1x180KN |
| Maximum Speed Back: | 3-2x1.7KM/H | Weight: | 450-10500KG |
| Warranty: | 1 Year | ||
| Highlight: | 1 x 180kn hydraulic traction equipment,hydraulic overhead line stringing equipment,traction overhead line stringing equipment |
||
Product Description

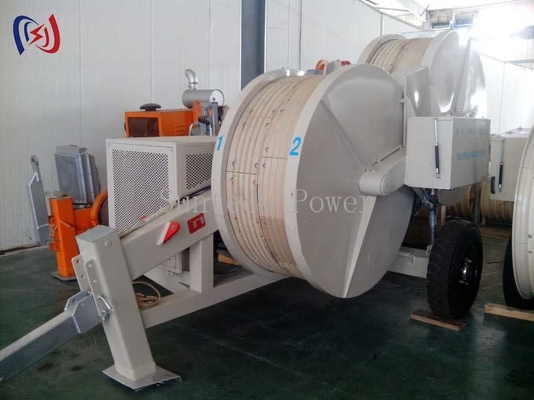

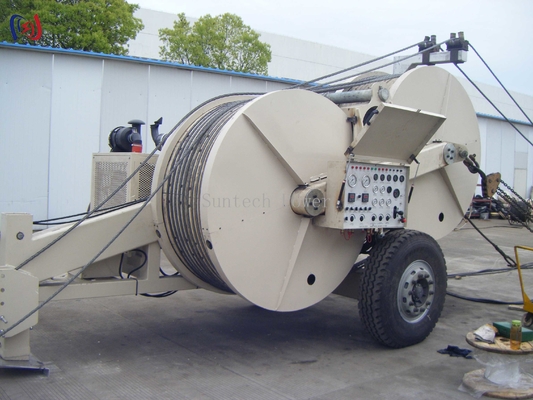

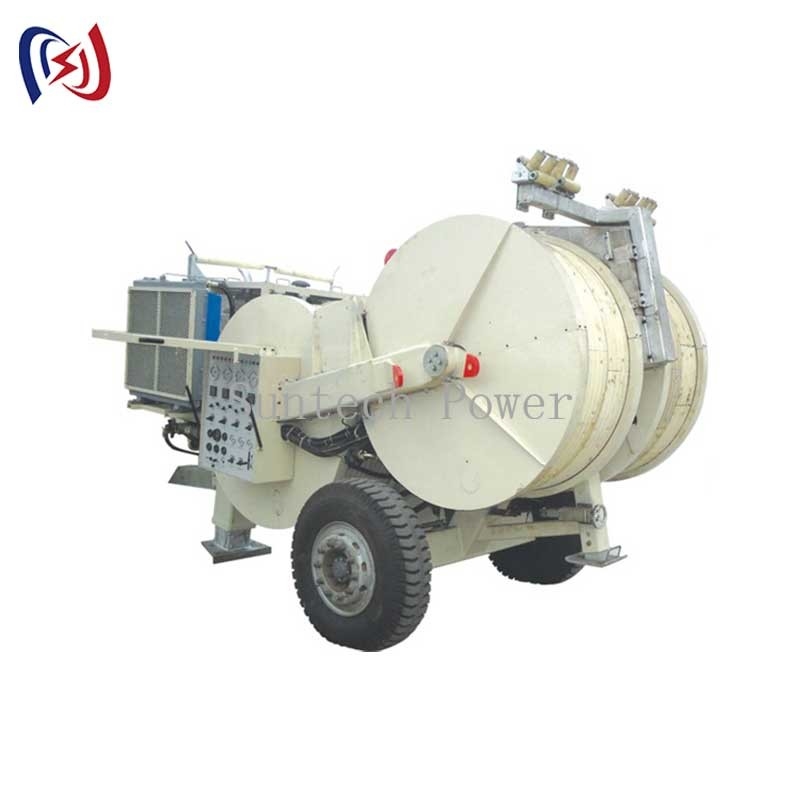

Hydraulic Traction Equipment Overhead Line Stringing Equipment
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Feature:Bull wheel with weae proof MC nylon lining segments.
Infinitely variable tension control and constant tension conductor stringing.
Spring applied hydraulic released brake acts automatically in case.
Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.
| Item No. | 07212 | 07155 | 07171 |
| Model | SA-YZM7.5 | SA-YZ30A | SA-YZ40A |
| Maximum Tension(KN) | 7.5 | 30 | 40 |
| Continuous Tension(KN) | 7.5 | 25 | 35 |
| Maximum speed(KM/H) | 40m/minute | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1100 | Φ1200 | Φ1200 |
| Number of groove(MM) | / | 5 | 5 |
| Number of groove(KN) | / | 20 | 40 |
| Maximum speed back(KM/H) | / | / | 3 |
| Maximum suitable conductor diameter(MM) | / | Φ32 | Φ32 |
| Engine power/speed(KW/RPM) | / | 11/2200 | 51/2500 |
| Dimensions(M) | 2.3*1.2*1.6 | 3.6*1.8*2.4 | 3.4*1.8*2.4 |
| Weight(KG) | 450 | 1700 | 2800 |
| Item No. | 07181 | 07192 | 07197 |

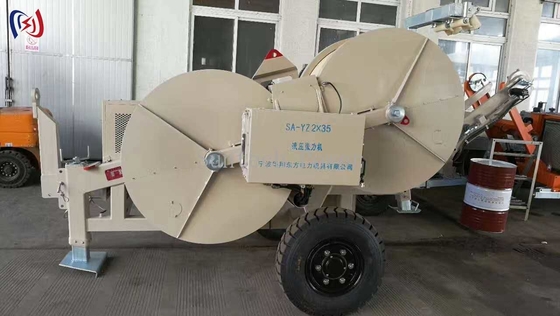

| Model | SA-YZ2*35 | SA-YZ2*40B | SA-YZ2*55 |
| Maximum Tension(KN) | 2*35/1*70 | 2*40/1*80 | 2*55/1*110 |
| Continuous Tension(KN) | 2*30/1*60 | 2*35/1*70 | 2*50/1*100 |
| Maximum speed(KM/H) | 5 | 5 | 5 |
| Bottom of groove diameter(MM) | Φ1200 | Φ1500 | Φ1600 |
| Number of groove(MM) | 2*5 | 2*5 | 2*5 |
| Number of groove(KN) | 2*30/1*60 | 2*40/1*80 | 2*50/1*100 |
| Maximum speed back(KM/H) | 2*2.1 | 2*1.5 | 2*2.1 |
| Maximum suitable conductor diameter(MM) | Φ32 | Φ40 | Φ42.5 |
| Engine power/speed(KW/RPM) | 51/2500 | 51/2500 | 54/2500 |
| Dimensions(M) | 4.4*2.1*2.6 | 4.5*2.2*2.8 | 5.0*2.3*2.7 |
| Weight(KG) | 4000 | 4850 | 7500 |
