Electronic Dynamometer Steel Digital Tensiometer Tower Erection Tools
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | Dynamometer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Electronic Dynamometer | Item No.: | 22305-22310 |
|---|---|---|---|
| Max. Test Tension: | 1-20T | Min. Test Tension: | 10-200KG |
| Scale Interval: | 0.5-10KG | Width: | 90mm |
| Thickness: | 30-60mm | Length: | 230-350mm |
| Aperture: | 25-50mm | Weight: | 2-15KG |
| Warranty: | 1 Year | ||
| Highlight: | Tower Erection Tools,Tower Erection Tools,Transmission Line Stringing Tools |
||
Product Description

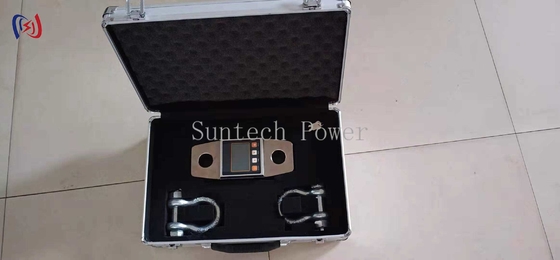

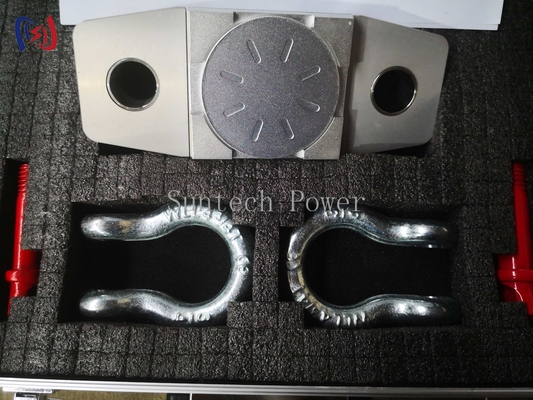

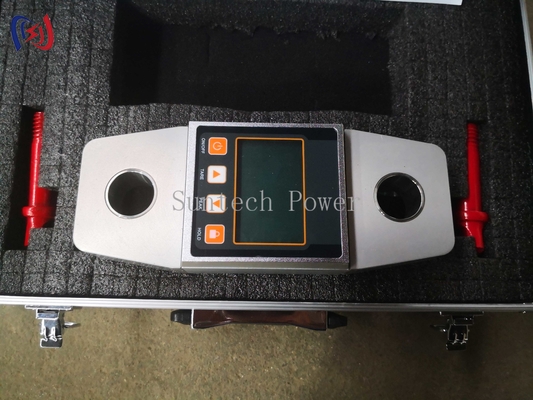

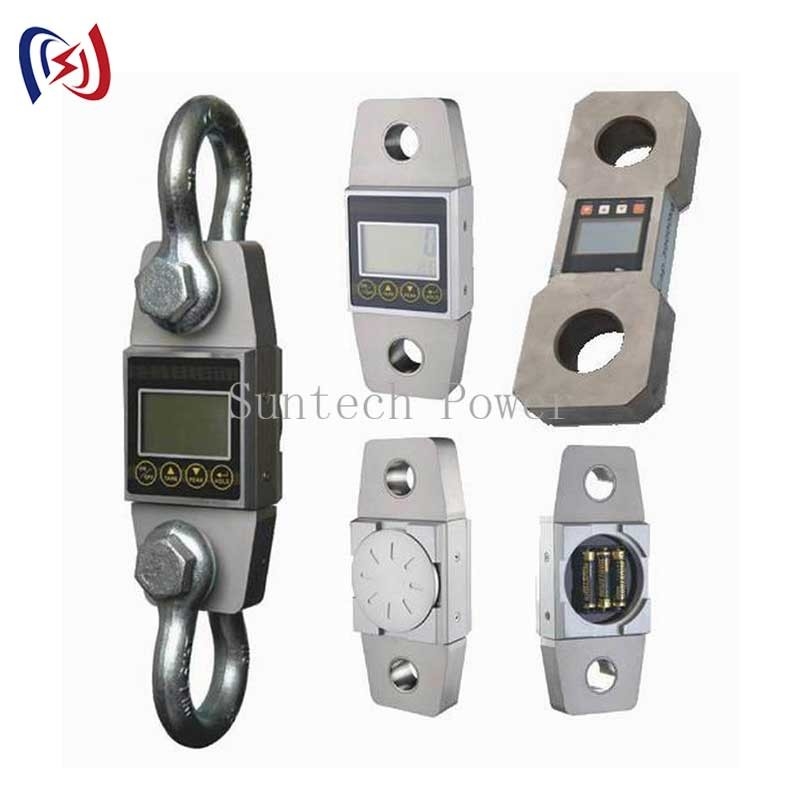

Electronic Dynamometer Steel Digital Tensiometer Tower Erection Tools
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
Uses
Used to measure tension and weight
Feature
1. Smart figure .light weight .
2. Cylinder structure , Industrial-grade high precision dynamometer and tensiometer.
3. Integral metal structure design, more durable, 4 times the ultimate load, waterproof panel keys.
Technical Data
| Item number |
Max. measurement (T) |
Min. measurement (kg) |
Graduation value (kg) |
Wide (mm) |
Thickness (mm) |
Long (mm) |
Internal diameter (mm) |
Weight (kg) |
| 22305 | 1 | 10 | 0.5 | 90 | 30 | 230 | 25 | 2.0 |
| 22306 | 2 | 20 | 1 | 90 | 30 | 230 | 25 | 2.0 |
| 22306A | 3 | 20 | 1 | 90 | 30 | 230 | 25 | 2.0 |
| 22307 | 5 | 40 | 2 | 90 | 30 | 230 | 32 | 3.5 |
| 22308 | 10 | 100 | 5 | 90 | 48 | 280 | 32 | 7.0 |
| 22309 | 15 | 100 | 5 | 90 | 60 | 350 | 50 | 15.0 |
| 22310 | 20 | 200 | 10 | 90 | 60 | 350 | 50 | 15.0 |
