Innovative Conductor Stringing Blocks For Smooth And Fast Transmission Line Stringing
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHCS-2L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Item No.: | 10291 | Model: | SHCS-2L |
|---|---|---|---|
| Rated Load: | 20KN | Weight: | 4.1-4.7KG |
| Warranty: | 1 Year | ||
| Highlight: | Innovative Transmission Line Stringing Blocks,Fast Transmission Line Stringing Blocks,Smooth Transmission Line Stringing Blocks |
||
Product Description

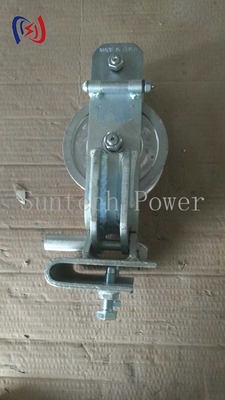

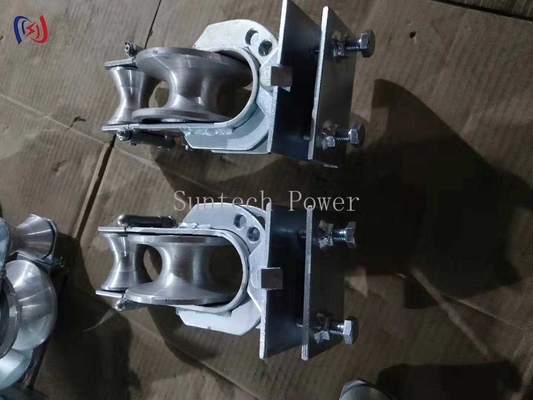

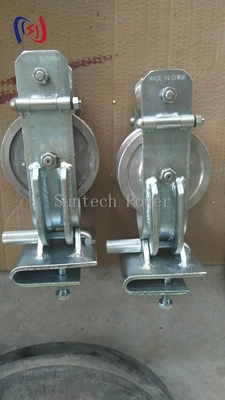

The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission line.
All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel.
Stringing pulley block;pulley block
1) three purpose;
2) sheave:Nylon/ Al;
3) light and wear well.
4) Rated load:2Ton

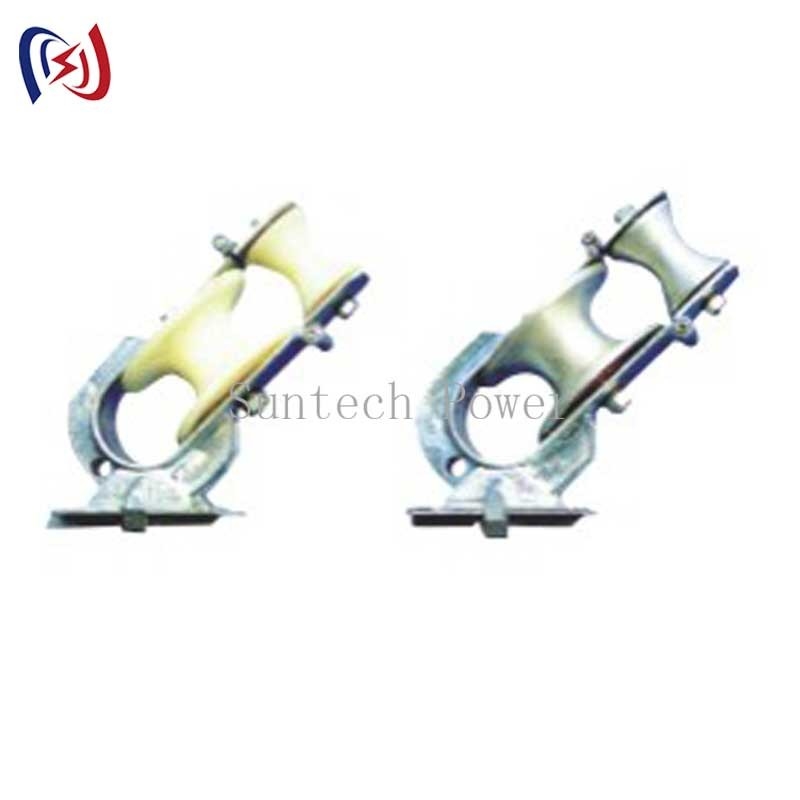

Three-purpose stringing pulley block
Application: can be used to string wire on beeline pole& angle pole in three direction: straight, right and left.
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
| Item number | Model | Rated load (kN) | Applicable conductor | Weight (kg) | Remark |
| 10291 | SHCS-2L | 20 | ≤LGJ240 | 4.3 | Aluminium sheave |
| 10292 | SHCS-2N | 20 | 4 | Nylon sheave | |
