Transmission Line Stringing Tools Professional Experienced In Conductor Stringing Blocks Cable Reel Stand Hoisting Tackles
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SHR-2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Item No.: | 10211 | Model: | SHR-2.5 |
|---|---|---|---|
| Rated Load: | 25KN | Weight: | 11KG |
| Warranty: | 1 Year | ||
| Highlight: | Professional Conductor Stringing Blocks,Experienced Conductor Stringing Blocks,Cable Reel Stand Conductor Stringing Blocks |
||
Product Description
Use and Characteristics:
1. Used before and after double,increasing the contact area of the wire,wheel groove through a variety of connectors,
press material for aluminum alloy wheel,nylon wheel.
2. Apply to leading and pull large section conductor,Splicing sleeve can pass throught from the groove.

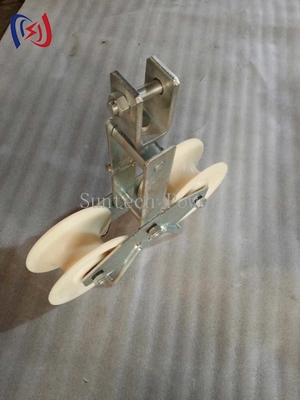

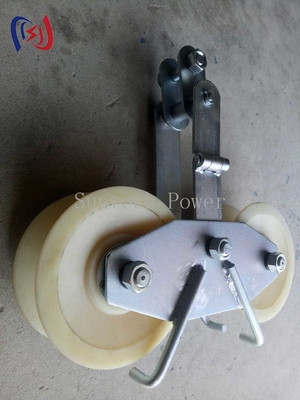

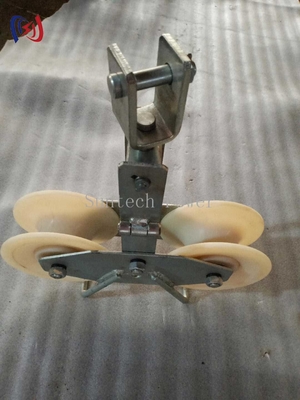

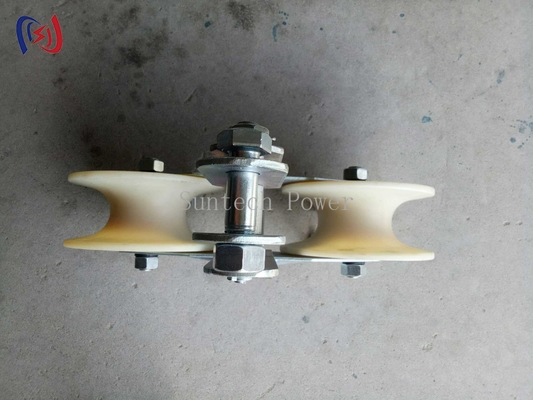

3. The Tandem sheaves stringing blocks are used for stringing conductors in the condition of big angle or corner on transmission line.
Application:
specially designed to string conductors of large cross section area.
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
| Item number | Model | Applicable Conductor | Rated load (kN) | Weight (kg) | Remark |
| 10211 | SHR-2.5 | LGJ300-500 | 25 | 11 | Aluminium sheave |

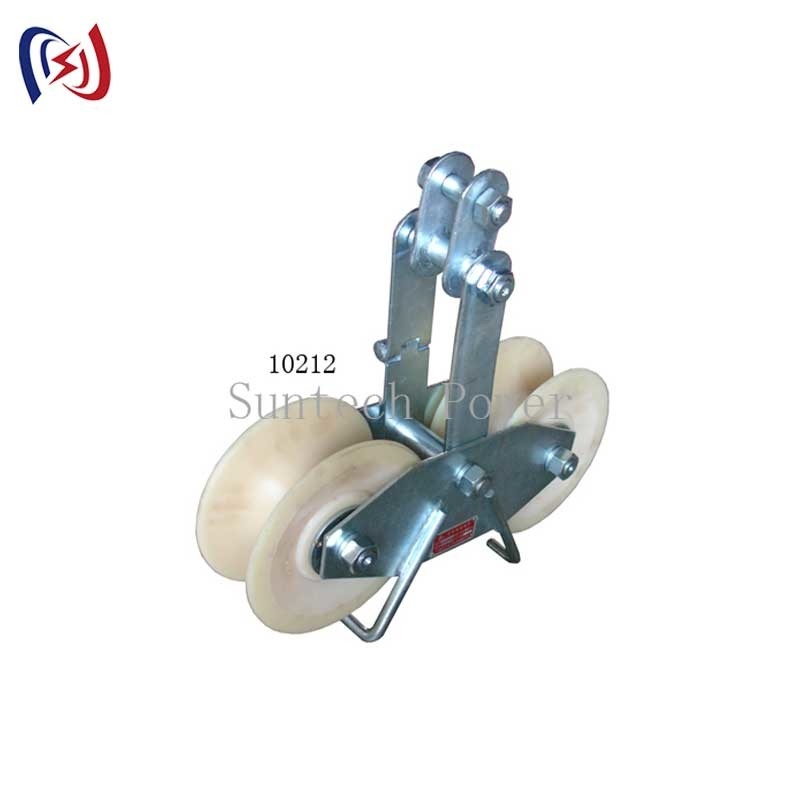

| 10212 | SHRN-2.5 | LGJ300-500 | 25 | 9.5 | Nylon sheave |
