Smooth Lightweight Transmission Line Stringing Tools For Customized Requirements
Product Details:
| Place of Origin: | Ningbo, China |
| Brand Name: | Suntech |
| Certification: | ISO9001 |
| Model Number: | SH80B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/month |
|
Detail Information |
|||
| Item No.: | 21241 | Model: | SH80B |
|---|---|---|---|
| Tube Diameter: | 80-200mm | Weight: | 3.3-12KG |
| Warranty: | 1 Year | ||
| Highlight: | Lightweight Transmission Line Stringing Tools,Customized Transmission Line Stringing Tools,Smooth Transmission Line Stringing Tools |
||
Product Description

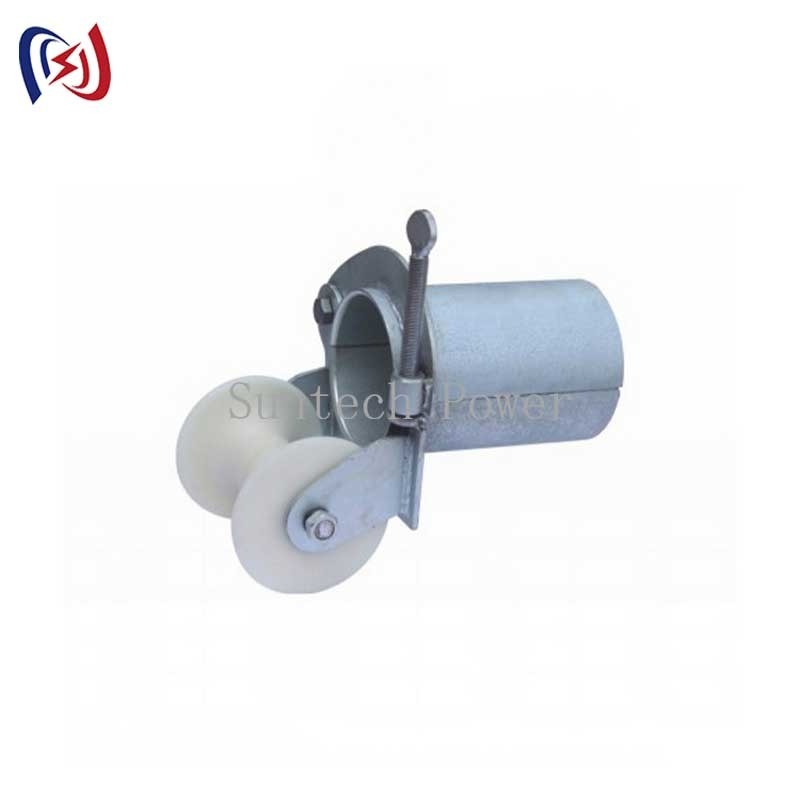

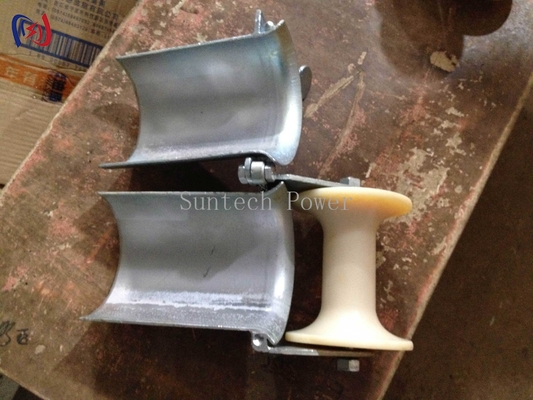

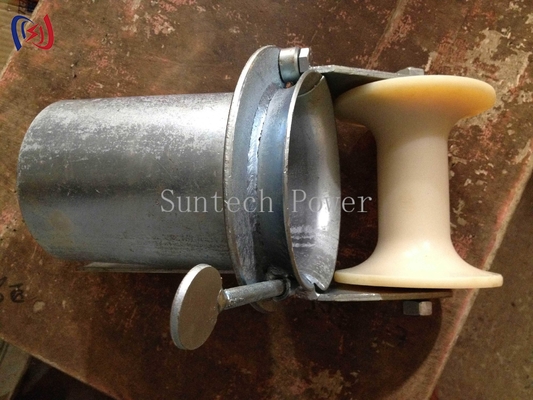

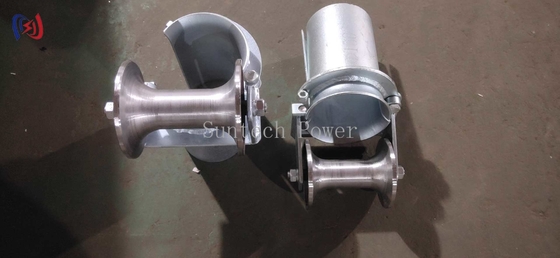

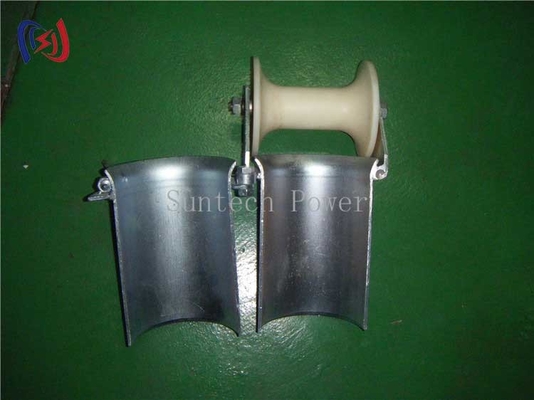

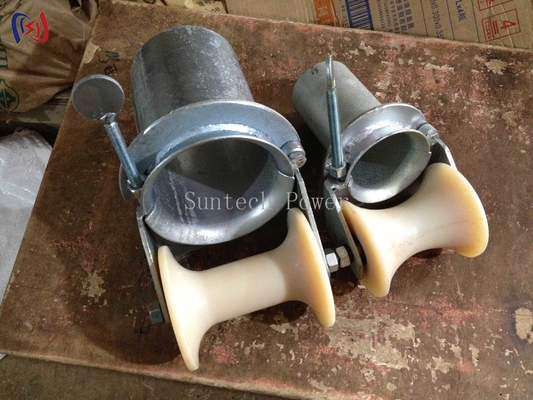

This cable ground roller, has the nylon and aluminum material two kinds, and suit to different tube diameters, from 80mm to 200mm, smooth surface, and light weight, the most important feature, it is lockable, when you use it, please nicely palce in the tube entrance at arbitrary angle. To meet more customized requirements, some client will demand the highly galvanzied frame, it will be the highest level of this roller, duwe to the zinc frame, it keeps more lift time, and durable, and better than spraying paint. So you should indicate it especially.
The roller can be placed in tube entrance at arbitrary angle and lockable zinc-coated steel surface with single nylon sheave
Ningbo Suntech Power Machinery Tools Co.,Ltd. is one of the leading and preferred manufacturers and suppliers in China,and deal with electrical facilities products start from year 1995.We have own main product line for stringing blocks,hydraulic Cable Stands,Anti Twist Steel Wire Rope,etc with one of biggest warhouses about stringing tools for trasmission line construction for one-site purchase in China.
Now our goods export to 120 countries and we have more than 3000 clients. Our detailed product range include conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope and other construction tools and equipment company for electric power construction.
Specifications
| Item number | Model |
Tube Diameter(mm) |
Weight (kg) |
| 21241 | SH80B | 80 | 3.3 |
| 21242 | SH90B | 90 | 3.5 |
| 21243 | SH100B | 100 | 3.8 |
| 21244 | SH130B | 130 | 6.0 |
| 21245 | SH150B | 150 | 7.2 |
| 21245A | SH180B | 180 | 10 |
| 21246 | SH200B | 200 | 12 |
