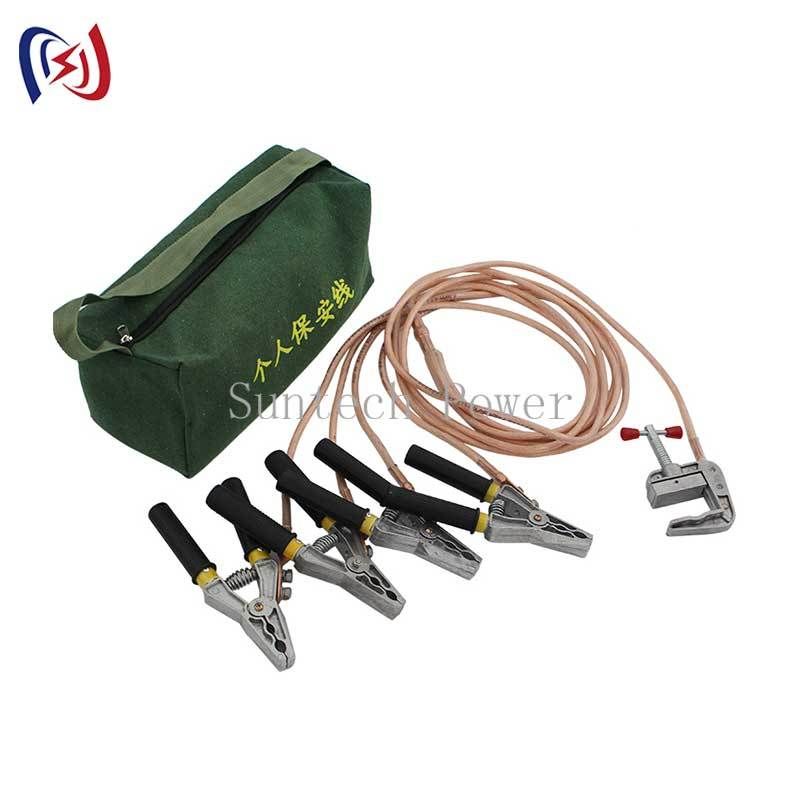

Compact Safety Grounding Wire Set For Electrical Maintenance Repair Work
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 23021 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 5-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Portable Safety Grounding Wire | Item No.: | 23021-23031 |
|---|---|---|---|
| Model: | Single-phase/Three-phase | Wire Section: | 16-25mm2 |
| Clip Quantity: | 4+1/1+1 | Warranty: | 1 Year |
| Highlight: | Electrical Maintenance Grounding Wire Set,Electrical Repair Grounding Wire Set,Safety Grounding Wire Set |
||
Product Description

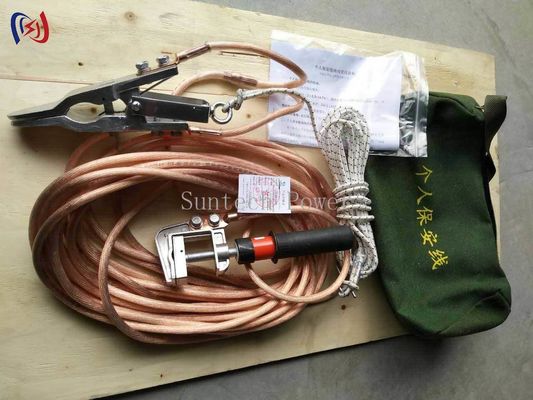

Compact Safety Grounding Wire Set For Electrical Maintenance And Repair Work
The Portable Safety Grounding Wire is an essential protective equipment designed to ensure electrical safety during maintenance, repair, and construction work on de-energized power systems. This critical safety device provides a reliable path to ground, protecting workers from accidental re-energization and static electricity hazards.
Construction & Materials:
- Conductor: High-purity 99.9% copper strands for maximum conductivity
- Insulation: High-grade silicone rubber or EPDM with 15kV rating

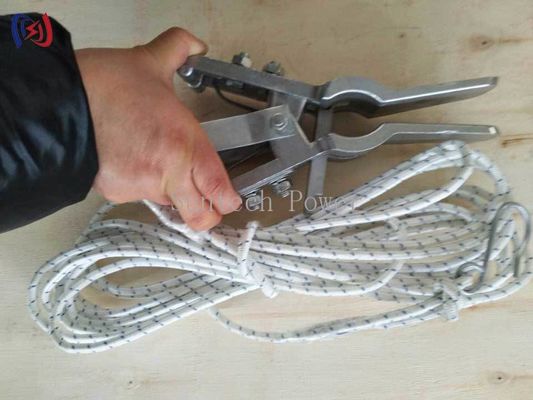

- Clamps: Forged copper jaws with stainless steel springs
- Handles: Fiberglass-reinforced polymer with ergonomic design
- Connections: Silver-plated copper terminals with compression fittings
Key Safety Features:
- Visual indicators showing proper grounding connection
- Audible click confirmation when clamps are securely attached
- Tested to 50kA for 0.5 seconds (ANSI/IEEE 80 standards)
- Non-magnetic components to prevent induction heating
- Color-coded insulation for easy voltage level identification
Technical Specifications:
- Voltage Rating: Up to 36kV (class 4)
- Conductor Size: 2/0 AWG to 4/0 AWG
- Length Options: 10ft, 25ft, 50ft (3m, 7.5m, 15m)
- Temperature Range: -40°C to +90°C
- Weight: 2.2lb to 8.8lb (1kg to 4kg) per set
Performance Advantages:
✔ Meets OSHA 1910.269 and NFPA 70E requirements
✔ Reduces arc flash hazards by providing low-impedance path
✔ Prevents static discharge in flammable environments
✔ Easy to deploy with quick-connect clamps
✔ Durable construction withstands job site abuse
Professional Applications:
- Power line maintenance - personal protective grounding
- Substation work - equipment grounding during repairs
- Railway systems - overhead catenary grounding
- Industrial plants - machine lockout/tagout procedures
- Telecommunications - tower maintenance safety
Available Configurations:

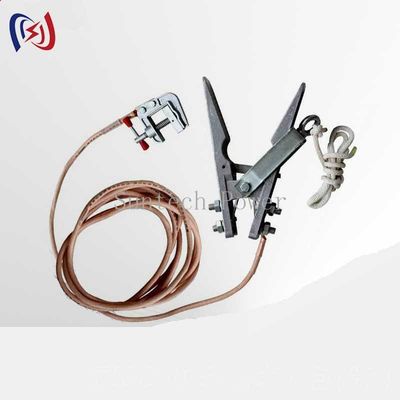

- Single-point grounding sets (1 clamp each end)
- Three-phase kits (for complete system grounding)
- Temporary grounding clusters (multi-point systems)
- Custom length assemblies (made to order)
- Explosion-proof versions (for hazardous areas)
Why Choose Our Portable Safety Grounding Wires?
Manufactured to ASTM F855 standards
Third-party tested by UL or CSA
Used by utility companies nationwide
Backed by 1-year limited warranty
Technical Data
| Item number | Model | Wire Section(MM) |
Clip Quantity |
Wire Length(M) |
| 23021D |
Three-phase |
16 | 3+1 | 3*0.5+2 |
| 23021A | 16 | 4+1 | 4*0.5+2 | |
| 23021B | 16 | 4*1+3 | ||
| 23022A | 25 | 4*1+3 | ||
| 23022B | 25 | 4*1+5 | ||
| 23031A |
Single-phase |
25 | 1+1 | 2*0.3+4.7 |
| 23031B | 25 | 2*0.3+7.7 | ||
| 23031C | 50 | 2*0.5+7.5 |
