Professional Grade Switch Rod For High Voltage Circuit Switching Operations
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | Switch Rod |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2000 PCS/Month |
|
Detail Information |
|||
| Name: | Switch Rod | Rated Voltage: | 10-500KV |
|---|---|---|---|
| Total Length: | 3-8M | Node Number: | 3/4 |
| Outer Diameter Of Insulation Rod: | 32/37mm | Wall Thickness: | 3.5mm |
| Highlight: | Professional Grade Switch Rod,High Voltage Circuit Switch Rod |
||
Product Description

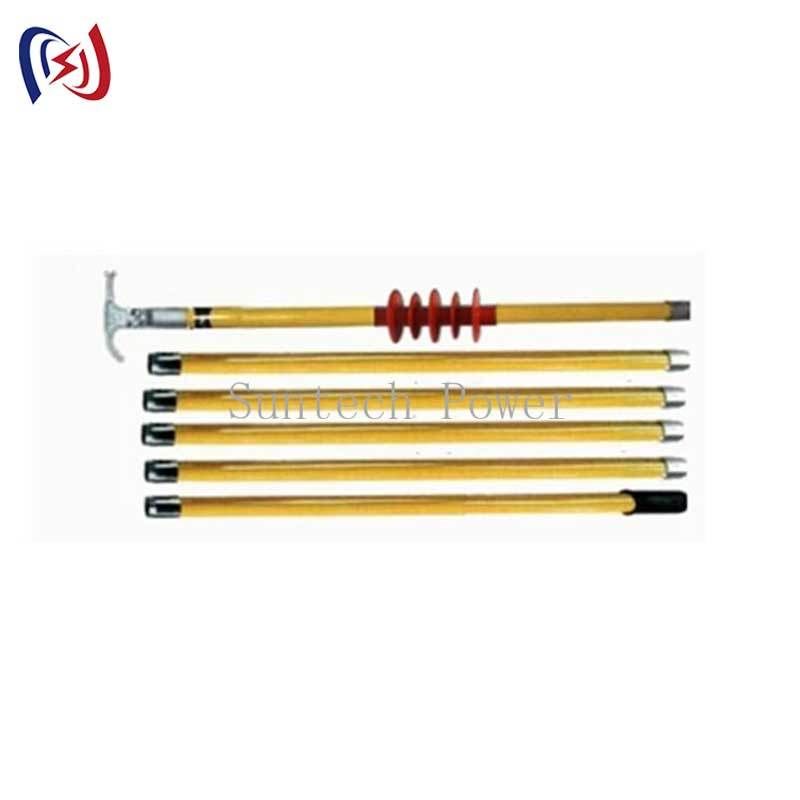

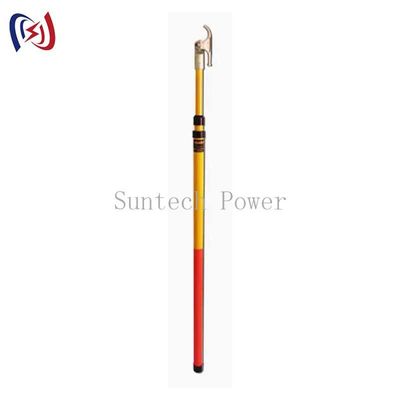

Professional Grade Switch Rod For High Voltage Circuit Switching Operations
The High-Voltage Switch Rod is an essential insulated tool for electrical utility workers performing live-line maintenance, circuit switching, and power distribution operations. Designed specifically for high-voltage environments up to 36kV, this professional-grade tool ensures safe operation while maintaining proper electrical clearance.
Construction & Safety Features:
- Insulated Tube: High-density fiberglass with epoxy resin coating (100kV/ft dielectric strength)

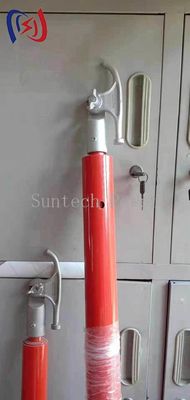

- Working Head: Forged aluminum alloy with non-sparking design
- Locking Mechanism: Positive-lock telescopic system with secure position indicators
- Grip: Textured EPDM rubber with ergonomic contouring
- Markings: Bright orange color with voltage rating labels
- Connections: Stainless steel threaded couplings with anti-corrosion treatment
Technical Specifications:
- Voltage Rating: 10kV, 20kV, 36kV (customizable)
- Length Options: 6ft to 12ft (1.8m to 3.6m) telescopic
- Weight: 3.5-7.5 lbs (1.6-3.4 kg)
- Operating Temp: -40°F to +140°F (-40°C to +60°C)
- Standards Compliance: ANSI/NETA ATS-2017, IEC 61235
- Minimum Approach Distance: Clearly marked per voltage class
Performance Advantages:
✔ Non-conductive materials prevent current leakage
✔ Telescopic design adapts to various working heights
✔ Positive-lock system ensures secure extension
✔ Weather-resistant for outdoor power line work
✔ Audible click confirmation when properly engaged
Professional Applications:
- Live-line maintenance - safe switching operations
- Substation work - disconnect switch operation
- Emergency repairs - rapid circuit isolation
- Power distribution - feeder switching
- Transformer servicing - tap changer adjustment
Available Configurations:
- Basic switch rod (fixed head design)
- Multi-tool system (interchangeable heads)
- Hot-stick version (with live-line tool attachments)

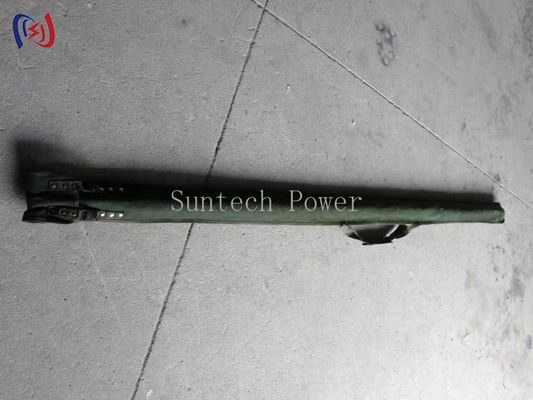

- Compact field kit (with carrying harness)
- Custom voltage ratings (up to 72kV)
Why Choose Our High-Voltage Switch Rod:
- Manufactured to IEEE 516 standards
- Used by major utility companies
- Annual dielectric testing recommended
- 1-year warranty against material defects
Technical Data
| Rated voltage |
Total length |
Node number |
Retraction length |
Top rod rough |
rod rough |
Combining ways |
| 10KV | 3 | 3 | 124cm | 26mm | 38mm | Telescopic |
| 10KV | 4 | 3 | 158cm | 26mm | 39mm | |
| 35KV | 4 | 4 | 158cm | 26mm | 44mm | |
| 110KV | 5 | 4 | 159cm | 26mm | 44mm | |
| 110KV | 6 | 4 | 184cm | 26mm | 44mm | |
| 220KV | 7 | 4 | 225cm | 26mm | 44mm | |
| 220KV | 9 | 4 | 232cm | 26mm | 45mm | |
| 500KV | 10 | 5 | 241cm | 26mm | 51mm |
