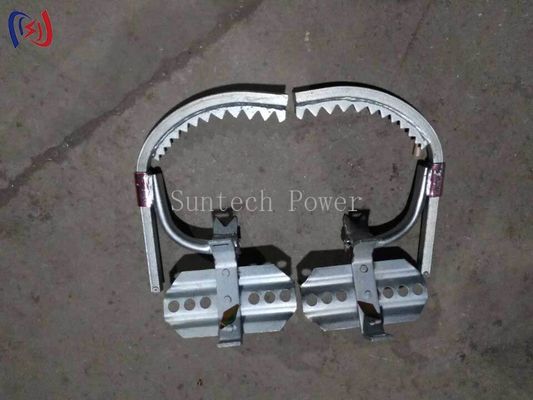

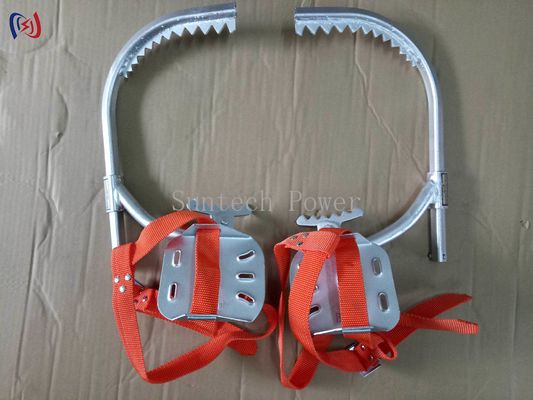

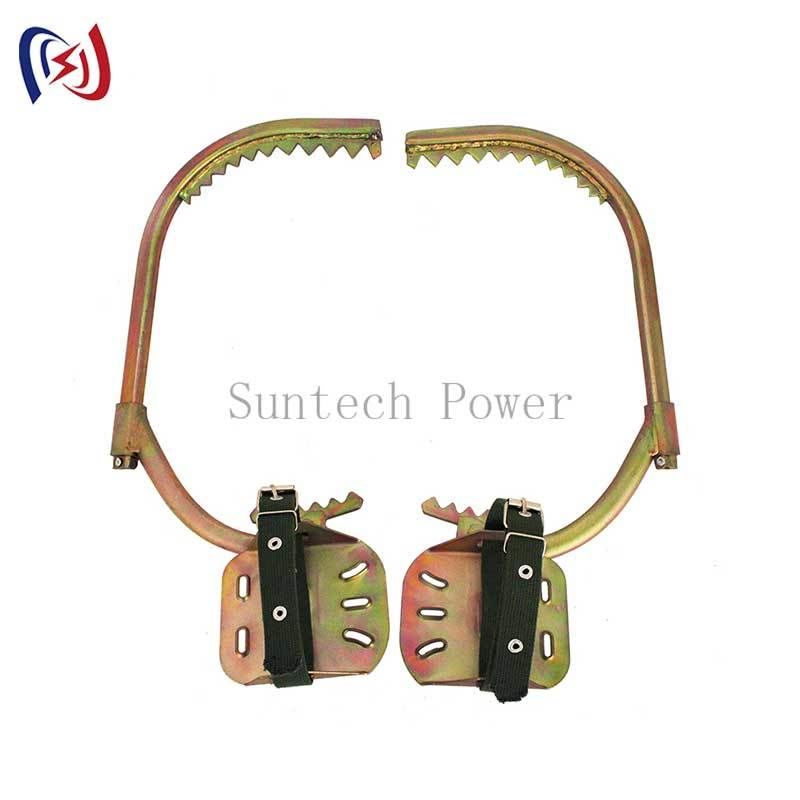

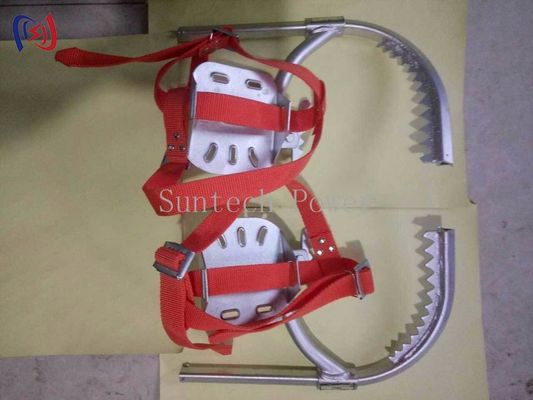

Heavy Duty Steel Grapplers With Anti Slip Teeth For Secure Pole Climbing
Product Details:
| Place of Origin: | Ningbo |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | 300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 5-7days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000 PCS/Month |
|
Detail Information |
|||
| Name: | Grapplers | Item No.: | 22213-22214B |
|---|---|---|---|
| Model: | 300-400 | Rated Load: | 150KG |
| Pole Diameter: | 190-400mm | Length: | 8-15M |
| Highlight: | Antislip Teeth Pole Climbing Grapplers,Heavy Duty Pole Climbing Grapplers,Steel Pole Climbing Grapplers |
||
Product Description
Heavy Duty Steel Grapplers With Anti Slip Teeth For Secure Pole Climbing
The Grapplers Foot Clamps are essential climbing equipment for utility workers performing pole maintenance, line installation, and electrical repairs. These professional-grade climbing irons provide secure footing and stability when working at height on various diameter utility poles.
Construction & Safety Features:
- Frame Material: Forged steel or aircraft-grade aluminum alloy
- Grip Teeth: Hardened steel spikes with anti-slip design (removable/replaceable)
- Straps: Heavy-duty nylon/polyester webbing with quick-release buckles
- Foot Plate: Textured steel surface with arch support
- Insulation: Optional fiberglass-reinforced non-conductive coating
- Size Adjustment: Slide rail system for 6"-14" pole diameters
- Safety Markings: Reflective strips for low-light visibility
Technical Specifications:
- Weight Capacity: 300 lbs (136 kg) per pair
- Working Load Limit: 150 lbs (68 kg) per clamp
- Pole Diameter Range: 6-14 inches (15-35 cm)
- Spike Length: 1.5-2 inches (3.8-5 cm)
- Strap Length: Adjustable 24-36 inches (61-91 cm)
- Standards Compliance: ANSI Z359, OSHA 1910.269
- Temperature Range: -20°F to +120°F (-29°C to +49°C)
Performance Advantages:
✔ Positive grip on wooden, concrete, and composite poles
✔ Quick adjustment for different pole diameters
✔ Reduced fatigue with ergonomic foot plate design
✔ Secure attachment with heavy-duty straps
✔ Corrosion resistant for outdoor utility work
✔ Replaceable parts extend product lifespan
Professional Applications:
- Power line maintenance - pole inspections and repairs
- Telecommunications - cable installation on poles
- Street light servicing - fixture maintenance
- Emergency restoration - storm damage repairs
- New construction - pole line installation
Available Configurations:
- Basic steel grapplers (economy models)
- Premium aluminum grapplers (lightweight professional)
- Insulated models (for live-line work)
- Oversized grapplers (for large diameter poles)
- Custom configurations (special strap lengths)
Why Choose Our Grapplers Foot Clamps:
- Used by major utility companies nationwide
- Field-tested by professional linemen
- Replaceable wear components
- 1-year warranty on frame and buckles
- Meets OSHA and ANSI safety standards
Technical Data
| Item number | Model | Pole type | Rated load(KG) | Pole diameter(MM) | Length(M) |
| 22213 | 300 |
Variable diameter Cement Pole steel Pole |
150 | Φ190-300 | 8-10 |
| 22210 | 350 | 150 | Φ250-350 | 10-12 | |
| 22214 | 400 | 150 | Φ300-400 | 12-15 | |
| 22213A | 300 |
Variable diameter Wood Pole |
150 | Φ190-300 | 8-10 |
| 22210A | 350 | 150 | Φ250-350 | 10-12 | |
| 22214A | 400 | 150 | Φ300-400 | 12-15 | |
| 22213B | 280 |
Equal diameter steel pole cement pole |
150 | Φ280 | 10 |
| 22210B | 300 | 150 | Φ300 | 12 | |
| 22214B | 350 | 150 | Φ350 | 15 |
